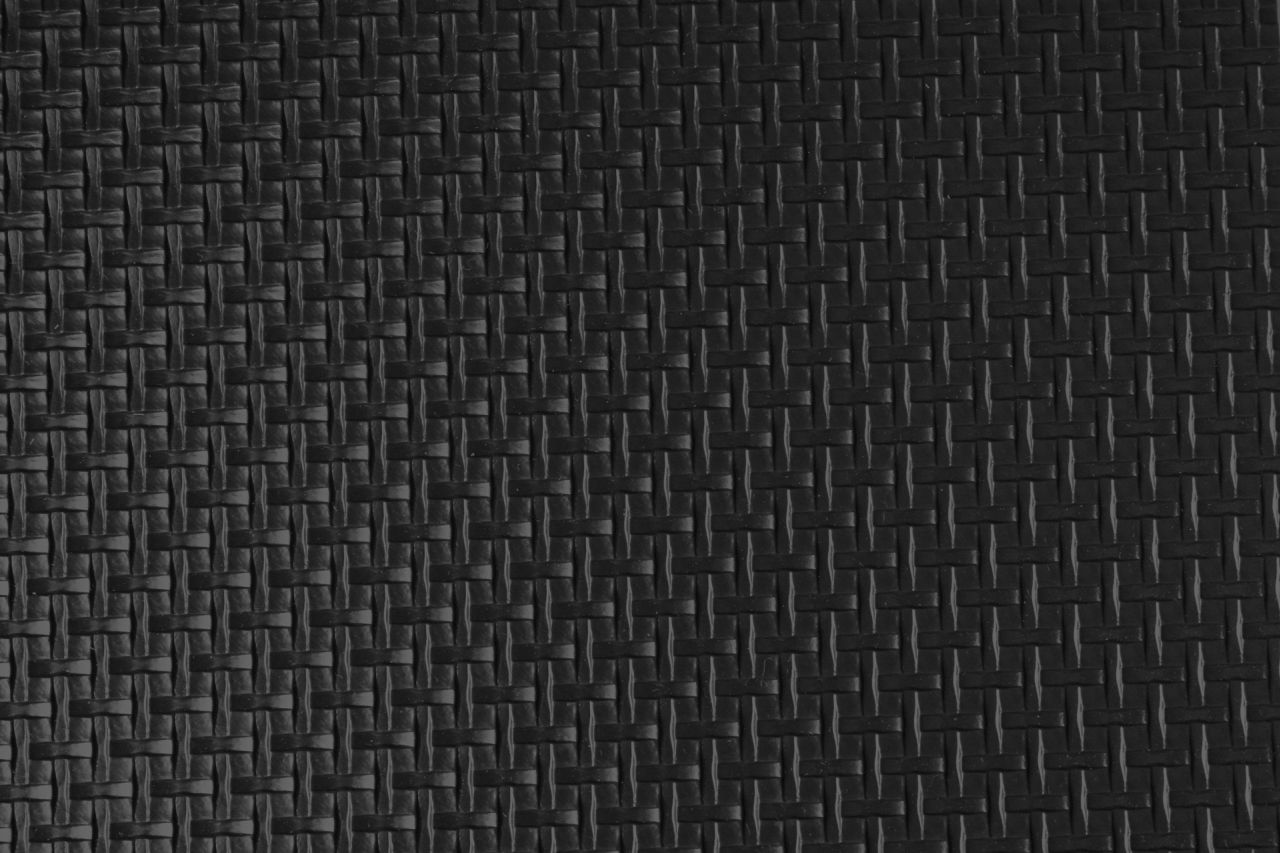

Rubber mould mat with basketweave (mesh) pattern, 3m widthRubber mould mat with basketweave (mesh) pattern, 3m width

DG Rubber manufactures rubber shuttering liners for the walking surface of cast, precast gallery, balcony and stair elements. The liners feature a profiling designed to obtain a slip-resistant surface on the concrete elements. This version features a basket/mesh pattern. Thickness 1,8 mm. Width 3 m (approx. 150 m² per roll). R11. Coefficient of friction

0,66.

Item number: 8844452

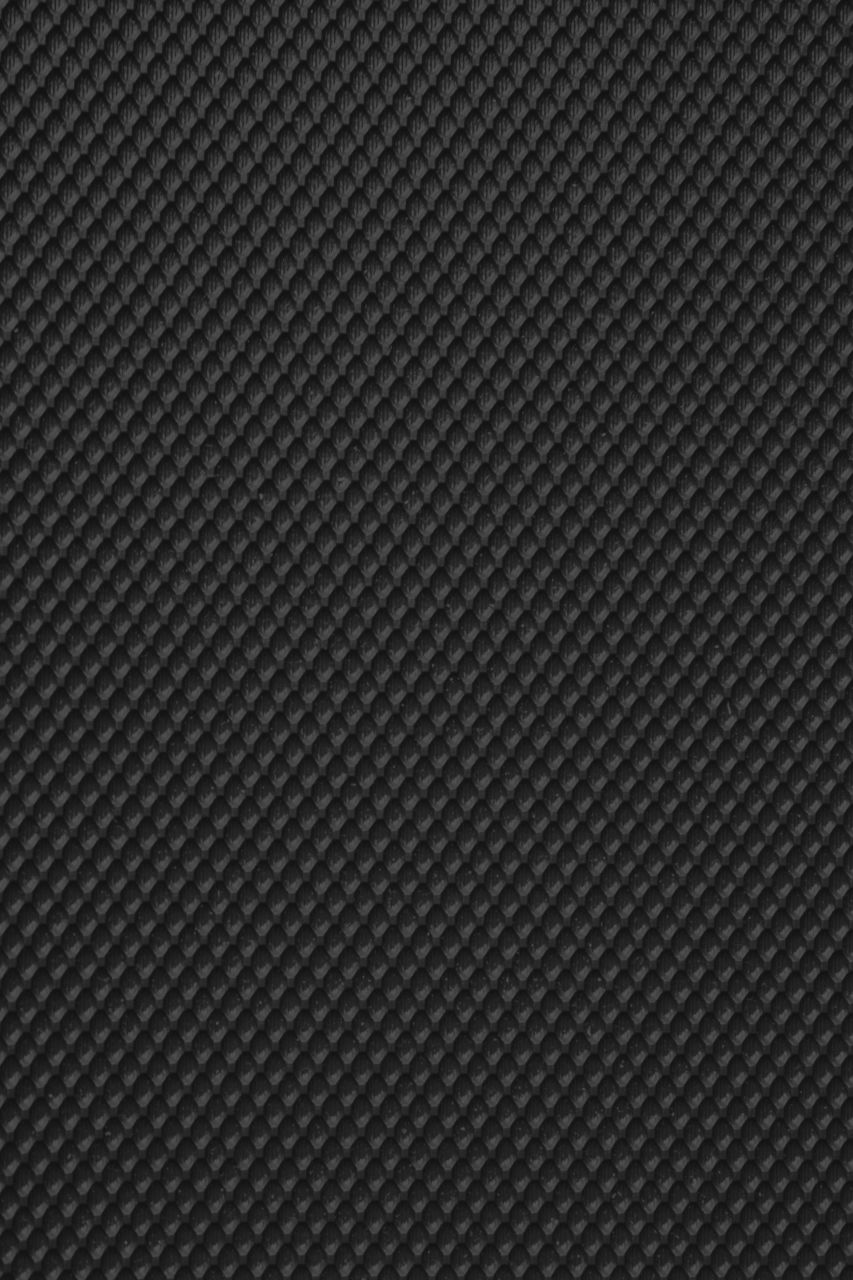

Rubber mould mat with pyramid structure, 3m widthRubber mould mat with pyramid structure, 3m width

DG Rubber manufactures rubber shuttering liners for the walking surface of cast, precast gallery, balcony and stair elements. The liners feature a profiling designed to obtain a slip-resistant surface on the concrete elements. This version features a pyramid/wave profile. Thickness 1,8 mm. Width 3 m (approx. 100 m² per roll). R12. Coefficient of friction

0,73.

Item number: 8844431

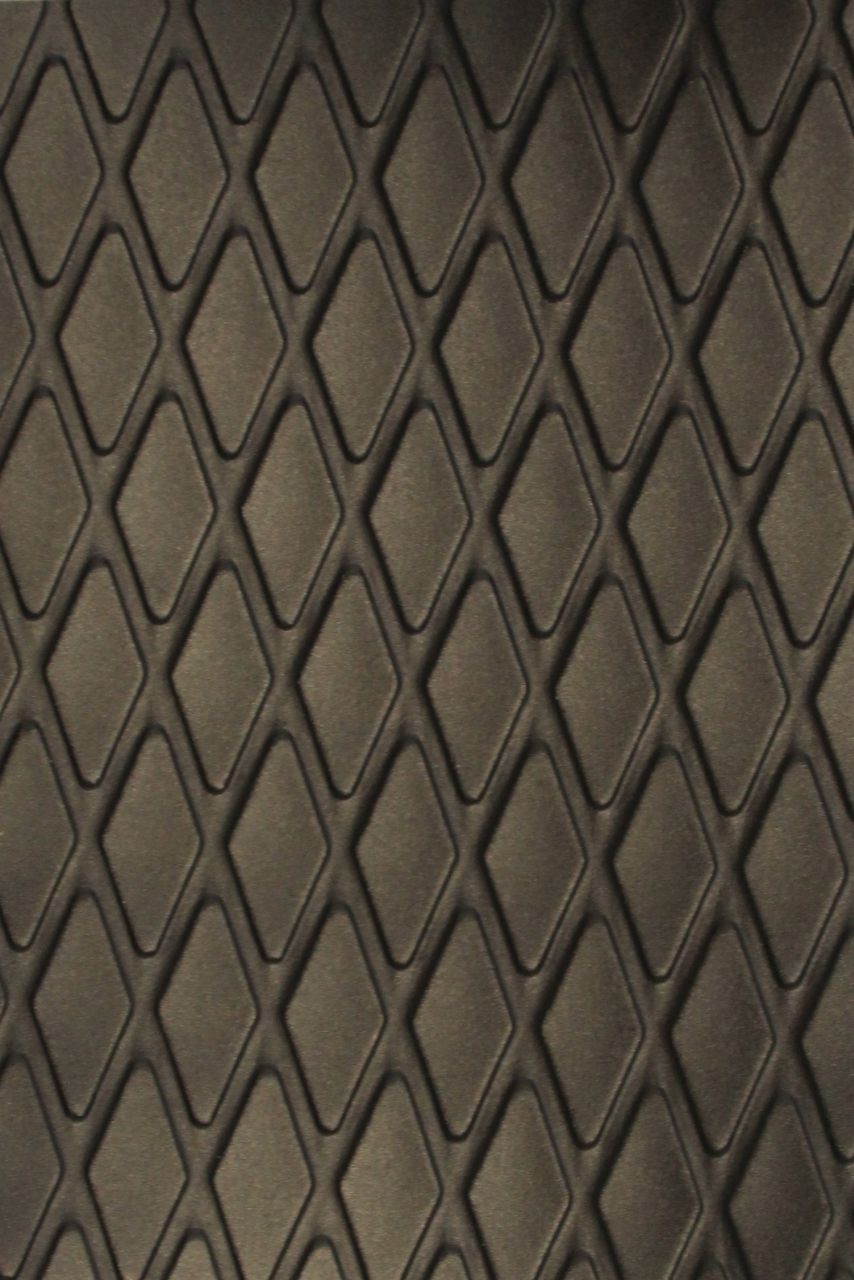

Rubber mould mat with large wieber pattern, 2m widthRubber mould mat with large wieber pattern, 2m width

DG Rubber manufactures rubber shuttering liners for the walking surface of cast, precast gallery, balcony and stair elements. The liners feature a profiling designed to obtain a slip-resistant surface on the concrete elements. This version features a large diamond pattern (~30,5 x 13,5 mm). Thickness 1,8 mm. Width 2 m (approx. 100 m² per roll). R11 - afm profiel 30,5 x 13,5. Coefficient of friction

0,65.

Item number: 8844477

Rubber mould mat with large wieber pattern, 3m widthRubber mould mat with large wieber pattern, 3m width

DG Rubber manufactures rubber shuttering liners for the walking surface of cast, precast gallery, balcony and stair elements. The liners feature a profiling designed to obtain a slip-resistant surface on the concrete elements. This version features a large diamond pattern (~30,5 x 13,5 mm). Thickness 3 mm. Width 1,8 m (approx. 150 m² per roll). R11 - afm profiel 30,5 x 13,5. Coefficient of friction

0,65.

Item number: 8844478

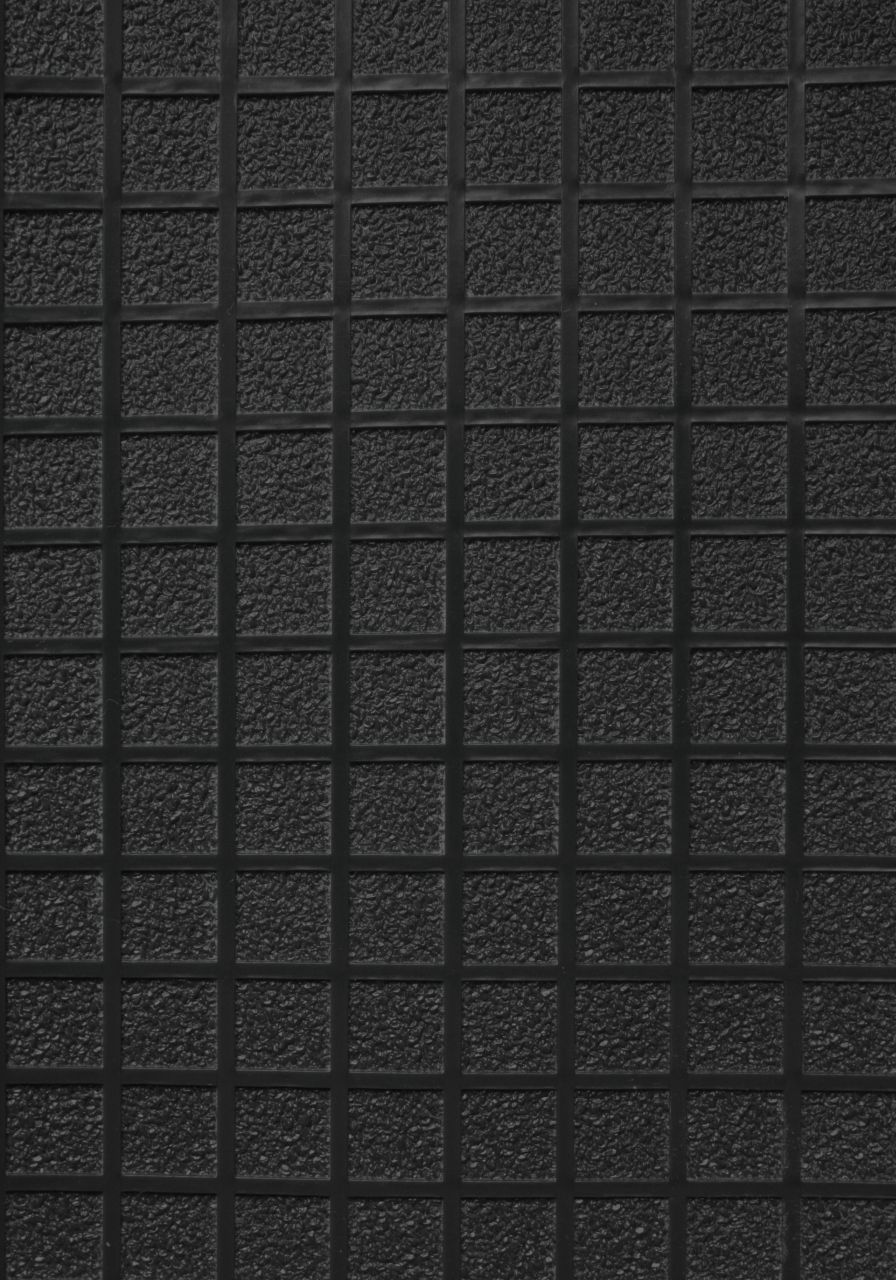

Rubber mould mat with large cube pattern, 2m widthRubber mould mat with large cube pattern, 2m width

DG Rubber manufactures rubber shuttering liners for the walking surface of cast, precast gallery, balcony and stair elements. The liners feature a profiling designed to obtain a slip-resistant surface on the concrete elements. This version features a large cube pattern 14,5 x 14,5 mm. Thickness 1,8 mm. Width 2 m (approx. 100 m² per roll). R13 - afm profiel 14,5 x 14,5. Coefficient of friction

0,68.

Item number: 8844487

Rubber mould mat with large cube pattern, 3m widthRubber mould mat with large cube pattern, 3m width

DG Rubber manufactures rubber shuttering liners for the walking surface of cast, precast gallery, balcony and stair elements. The liners feature a profiling designed to obtain a slip-resistant surface on the concrete elements. This version features a large cube pattern 14,5 x 14,5 mm. Thickness 1,8 mm. Width 3 m (approx. 150 m² per roll). R13 - afm profiel 14,5 x 14,5. Coefficient of friction

0,68.

Item number: 8844488

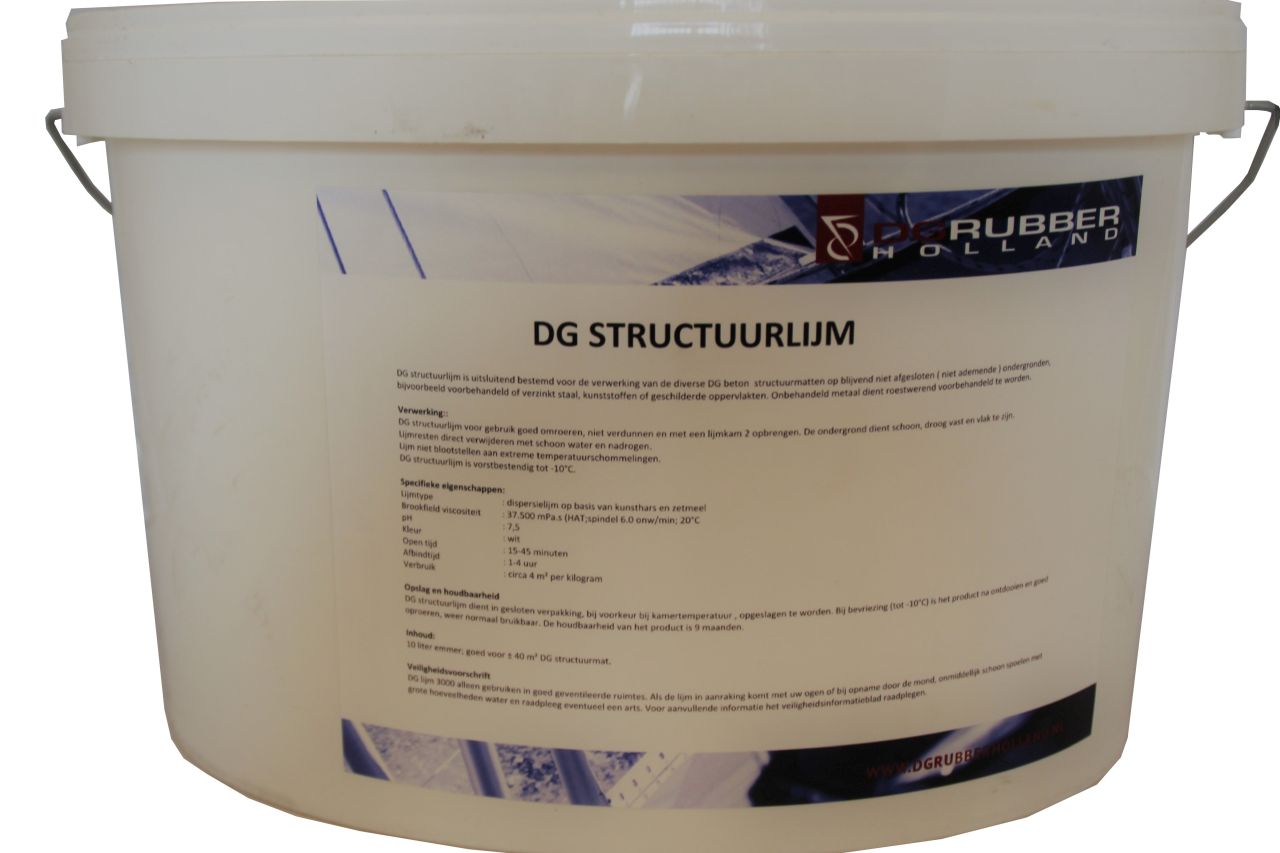

NOELINER adhesive for rubber mould mats, 10LNOELINER adhesive for rubber mould mats, 10L

NOELiner Structural Adhesive is intended exclusively for bonding various concrete texture mats onto permanently non-absorbent (non-breathable) surfaces, such as pretreated or galvanized steel, plastics, or painted surfaces.
Untreated metal must be pretreated with an anti-corrosion coating.

Item number: 8844455

Super smooth (mirror) rubber mould mat, 3m widthSuper smooth (mirror) rubber mould mat, 3m width

DG Rubber manufactures rubber shuttering liners for the walking surface of cast, precast gallery, balcony and stair elements. The liners feature a profiling designed to obtain a slip-resistant surface on the concrete elements. This version features a smooth surface. Thickness 1,8 mm. Width 3 m (approx. 150 m² per roll). nvt.

Item number: 8844460

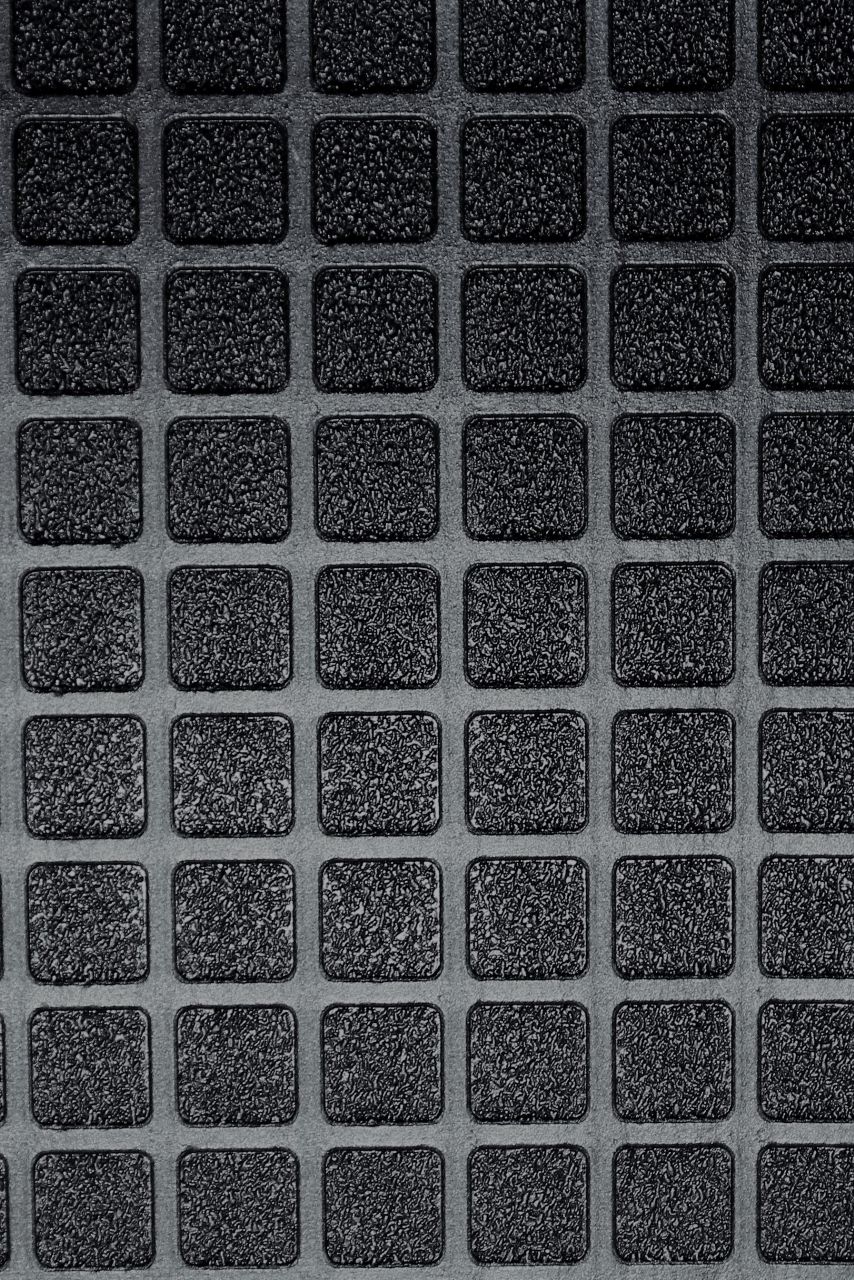

Rubber mould mat with small cube pattern, 2m widthRubber mould mat with small cube pattern, 2m width

DG Rubber manufactures rubber shuttering liners for the walking surface of cast, precast gallery, balcony and stair elements. The liners feature a profiling designed to obtain a slip-resistant surface on the concrete elements. This version features a small cube pattern 12 × 12 mm. Thickness 1,8 mm. Width 2 m (approx. 100 m² per roll). R13 - afm profiel 12 x 12.

Item number: 8844470

Rubber mould mat with small cube pattern, 3m widthRubber mould mat with small cube pattern, 3m width

DG Rubber manufactures rubber shuttering liners for the walking surface of cast, precast gallery, balcony and stair elements. The liners feature a profiling designed to obtain a slip-resistant surface on the concrete elements. This version features a small cube pattern 12 x 12 mm. Thickness 1,8 mm. Width 3 m (approx. 150 m² per roll). R13 - afm profiel 12 x 12.

Item number: 8844471

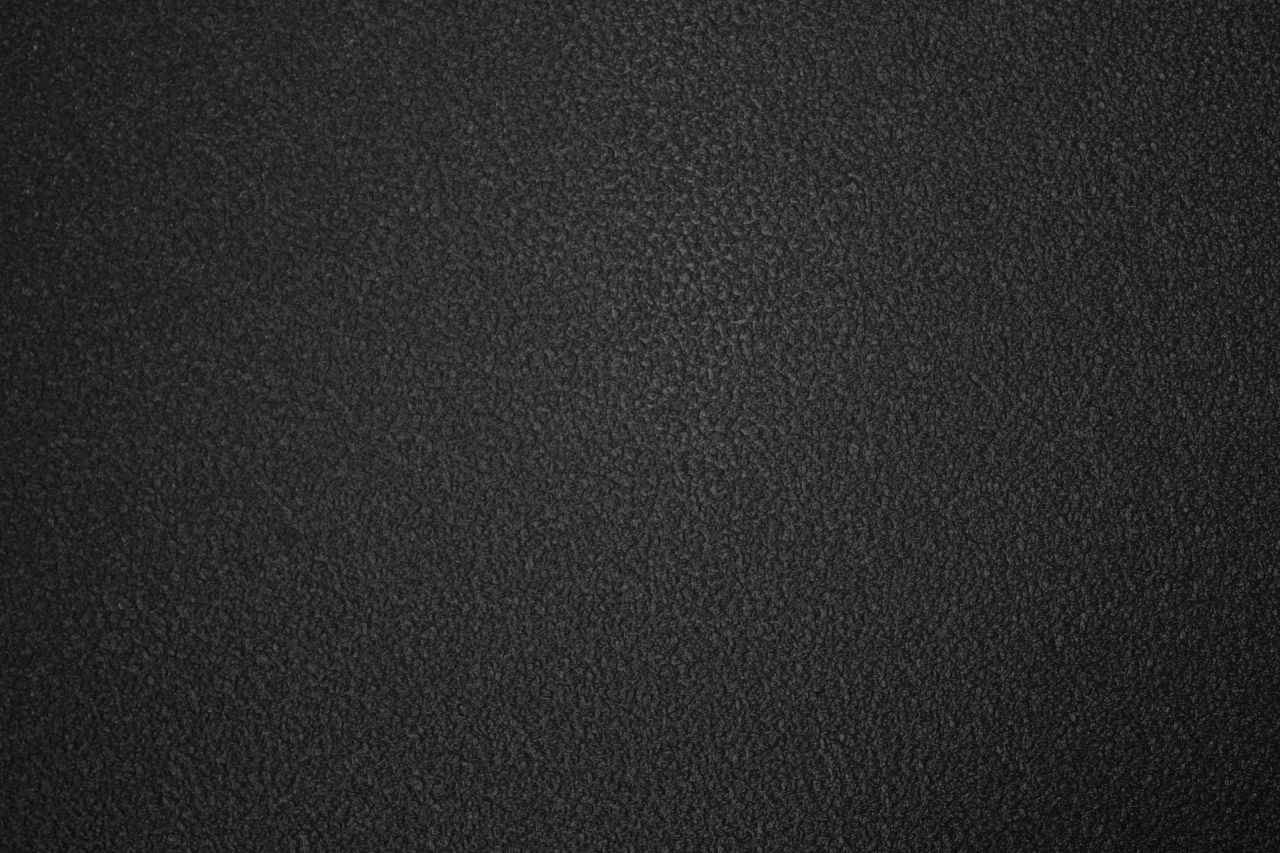

Rubber mould mat with sandblasted texture, 2m widthRubber mould mat with sandblasted texture, 2m width

DG Rubber manufactures rubber shuttering liners for the walking surface of cast, precast gallery, balcony and stair elements. The liners feature a profiling designed to obtain a slip-resistant surface on the concrete elements. This version features a sandblasted texture. Thickness 1,8 mm. Width 2 m (approx. 100 m² per roll). R13. Coefficient of friction

0,70.

Item number: 8844440

Rubber mould mat with sandblasted texture, 3m widthRubber mould mat with sandblasted texture, 3m width

DG Rubber manufactures rubber shuttering liners for the walking surface of cast, precast gallery, balcony and stair elements. The liners feature a profiling designed to obtain a slip-resistant surface on the concrete elements. This version features a sandblasted texture. Thickness 1,8 mm. Width 3 m (approx. 150 m² per roll). R13. Coefficient of friction

0,70.

Item number: 8844442
