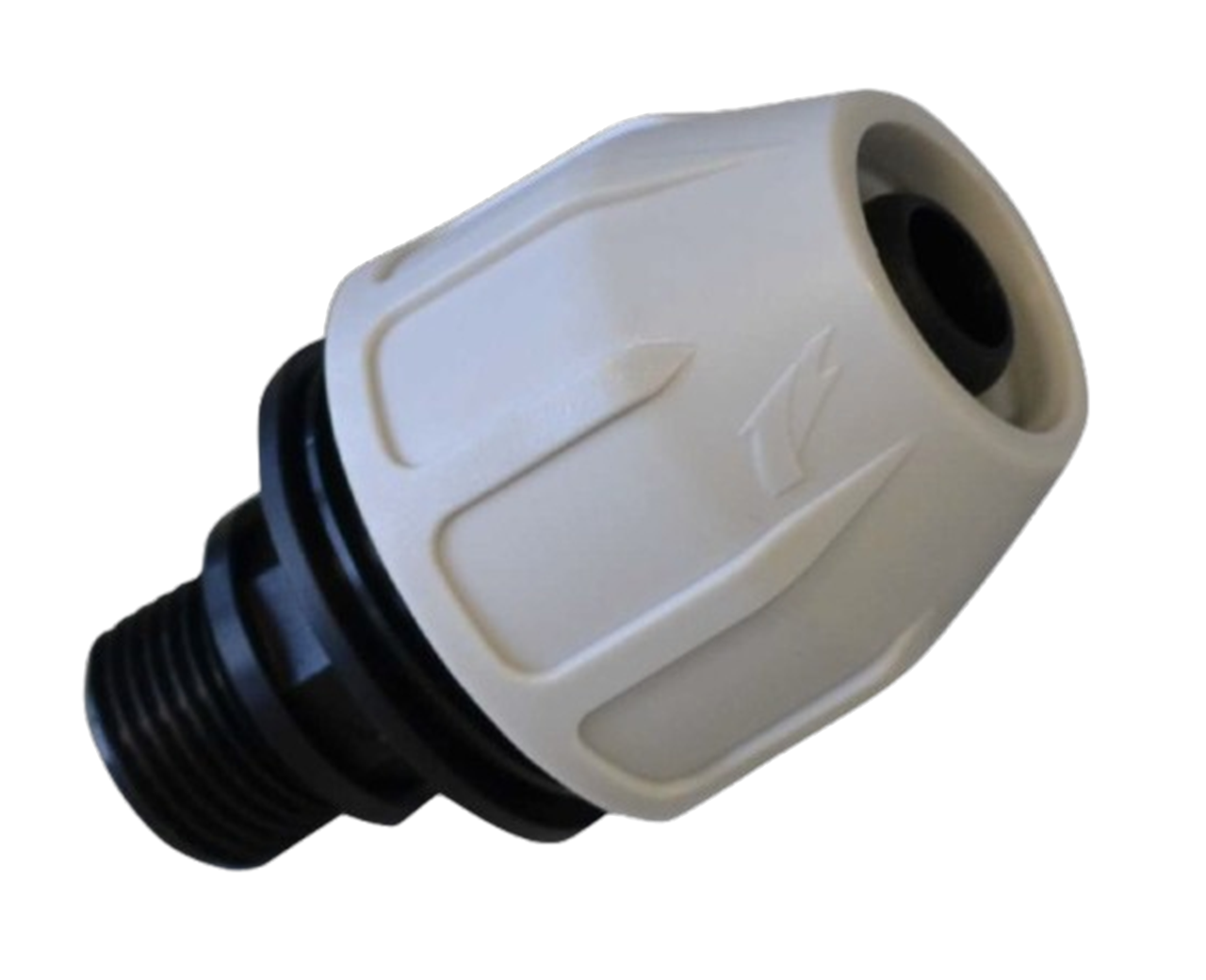

BDFast COMPACT STRAIGHT COUPLING
BDFast COMPACT STRAIGHT COUPLING 1/2 X 16 PP
Make your choice:
Item number: 5740050316
Product information
The BDFast Compact Straight Coupling is a high-quality, durable solution for easily and reliably connecting hoses in various marine and automotive applications. Manufactured from glass fiber reinforced polypropylene (PP) and equipped with an EPDM seal, these couplings are designed for demanding environments.
Thanks to the GAS cylindrical external thread according to ISO 228/1 and an internal conical thread (Bucchi specification), excellent hydraulic sealing is achieved with just light tightening. Perfect for systems where reliability and ease of installation are essential.
Data sheets
Specifications
| Additional Info 1 | : | Black (RAL 9011), Light grey (RAL 7047) |
| Additional Info 2 | : | BDFast |
| ISO | : | ISO 228/1 |
| Size 1 | : | 1/2" |
| Size 2 | : | 16 mm |
| Material | : | Polypropylene (PP), EPDM |
| Material 2 | : | See tightening torque table |
| Maintenance | : | Light tightening for sealing |
| PN nominal pressure | : | 16 bar |
| Fitting type | : | Straight coupling |
| Wire | : | External GAS cylindrical thread ISO 228/1 |
| Ball Hole Permeability (°C) | : | -5°C - 80°C |
| Simple Material | : | PP |
| Additional information | : | Black (RAL 9011), Light grey (RAL 7047) |
4 versions
| No. | Stock | Maat 1 | Maat 2 |
|---|---|---|---|
| 5740050316 | 1/2" | 16 mm | |
| 5740050516 | 3/4" | 16 mm | |
| 5740050320 | 1/2" | 20 mm | |
| 5740050520 | 3/4" | 20 mm |
