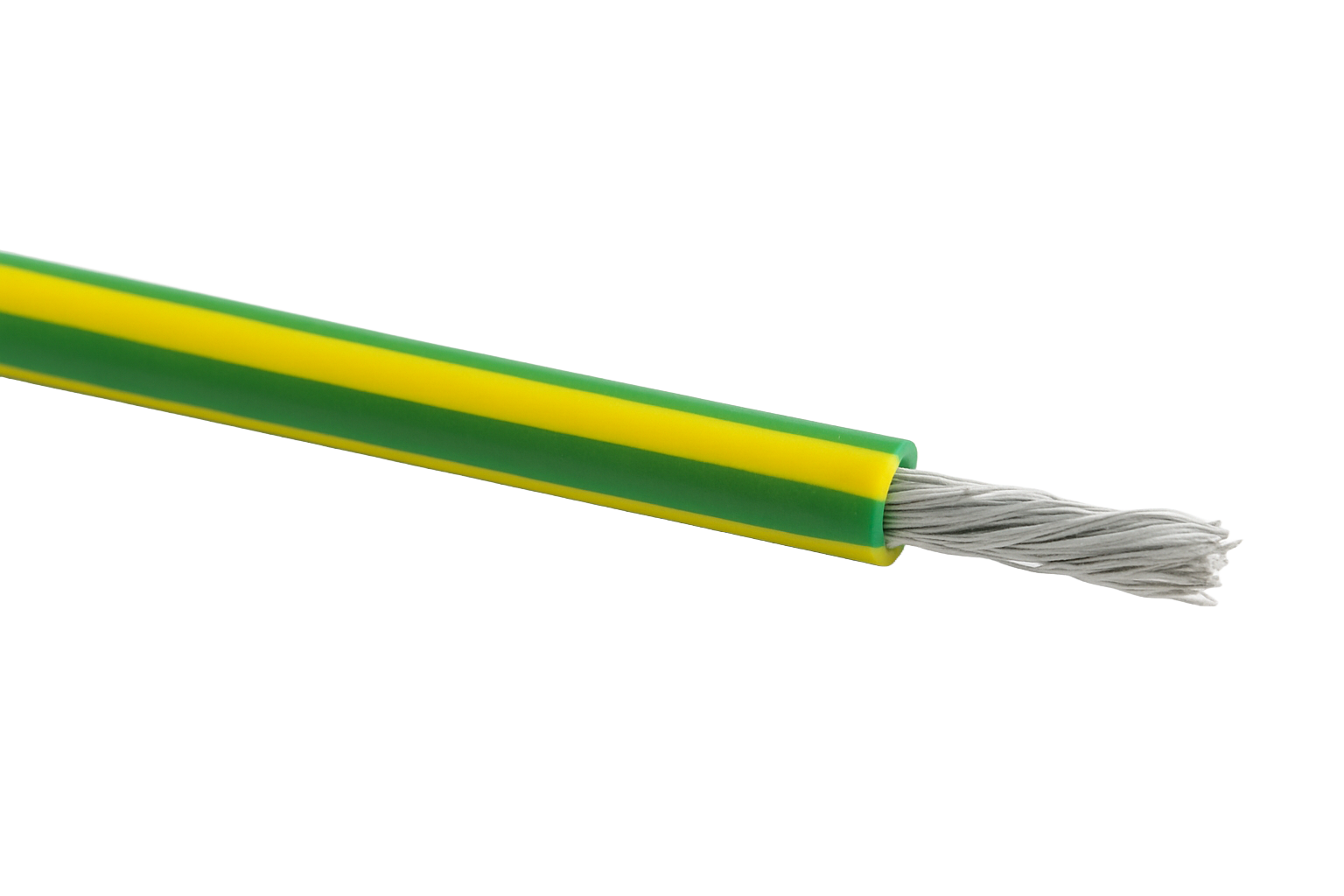

Halogen-free tinned cable 1.50 mm2 yellow/green
Item number: 33777150GG
Sales unit: 100 meter
Product information
Are you looking for a reliable cable for modern yacht and shipbuilding that also meets high safety and environmental requirements? Then our halogen-free, tinned installation cable is an excellent choice. Featuring a Class 5 conductor made of tinned copper and HF90 insulation free of halogens (according to IEC 60092-351), this cable is ideally suited for long-term use in demanding maritime environments. It is supplied on 100-meter reels as standard.
What makes this cable special?
Tinned copper conductor (Class 5)
The tinned copper strands resist corrosion and provide optimal conductivity. The fine-stranded design (Class 5) ensures extra flexibility and easy installation, even in hard-to-reach areas.
Halogen-free HF90 insulation
Thanks to its halogen-free composition, it produces hardly any harmful fumes or gases when exposed to heat or fire. This results in enhanced safety for people and the environment.
Temperature range from -40°C to +90°C
Designed to perform reliably even under extreme conditions, so y
Specifications
| Number of conductors | : | 1 |
| Protection | : | NBR PVC |
| Corrosivity Test | : | IEC 60754-2 EN 50267 |
| Diameter in mm | : | 3.34 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 23 |
| Halogen-free | : | Halogeenvrij |
| Insulation | : | HF90 Halogen-free (IEC 60092-351) |
| Cable length | : | 100 |
| Class | : | Class 5 |
| Sheath Color | : | Yellow-green |
| Max temperature (°C) | : | 90 |
| Min temperature (°C) | : | -40 |
| Standard / specification | : | VDE0295, IEC 60092-351, IEC 60092-353 |
| Oil resistance | : | Oliebestendigheid |
| Temperature range | : | -40 - +90 |
| Test voltage | : | 3.5 kV AC / 8.4 kV DC |
| Cable type | : | Mounting wire |
| Flame spread | : | IEC 60332-1 / IEC 60332-3-22 |
| Operating voltage | : | 0.6 / 1 kV |
| Wiring size in mm² | : | 1.5 |
