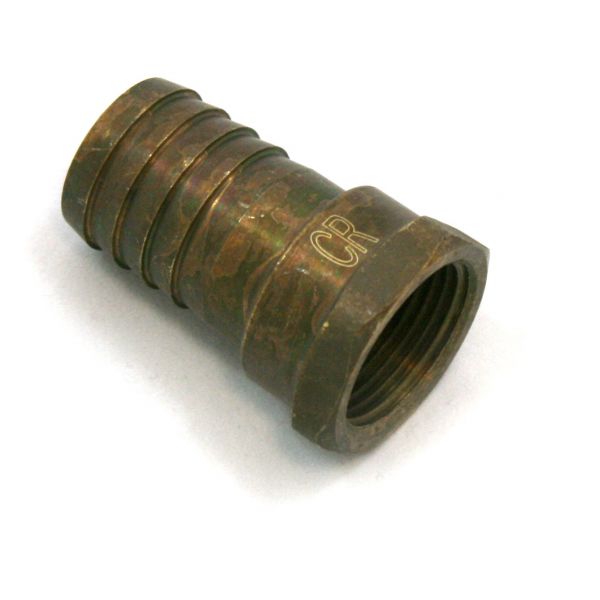

Hose pillar Fem. THREAD CR

Hose pillar Fem. THREAD 3/8 x 13 mm / CR
Hose pillar Fem. THREAD 1/4 x 10 mm / CR
Hose pillar Fem. THREAD 3/8 x 10 mm / CR
Hose pillar Fem. THREAD 1/2 x 13 mm / CR
Hose pillar Fem. THREAD 1/2 x 16 mm / CR
Hose pillar Fem. THREAD 1/2 x 20 mm / CR
Hose pillar Fem. THREAD 3/4 x 20 mm / CR
Hose pillar Fem. THREAD 3/4 x 25 mm / CR
Hose pillar Fem. THREAD 1 x 25 mm / CR
Hose pillar Fem. THREAD 1 1/4 x 32 mm / CR
Hose pillar Fem. THREAD 1 1/4 x 39 mm / CR
Brass Hose Barb with Fem. Thread 1 1/2"x 40 mm/ CR
Hose pillar Fem. THREAD 1 1/2 x 50 / CR
Hose pillar Fem. THREAD 2 x 50 mm / CR

Hose pillar Fem. THREAD CRHose pillar Fem. THREAD CR
Hose pillar Fem. THREAD CRHose pillar Fem. THREAD CR
Make your choice:

Item number: 53281014CR

Item number: 53280610CR

Item number: 53281010CR

Item number: 53281313CR

Item number: 53281316CR

Item number: 53281320CR

Item number: 53281920CR

Item number: 53281925CR

Item number: 53282525CR

Item number: 53283232CR

Item number: 53283240CR

Item number: 53283838CR

Item number: 53283850CR

Item number: 53285050CR

Product information

The Hose Barb CR Male Thread is a high-quality brass hose barb with male thread, suitable for various industrial and technical applications. Its robust brass material provides excellent corrosion resistance and a wide temperature range of -10 °C to 200 °C. Designed for a maximum working pressure of 16 bar, it is ideal for hydraulic and pneumatic systems.

Product information

The Hose Barb CR Male Thread is a high-quality brass hose barb with male thread, suitable for various industrial and technical applications. Its robust brass material provides excellent corrosion resistance and a wide temperature range of -10 °C to 200 °C. Designed for a maximum working pressure of 16 bar, it is ideal for hydraulic and pneumatic systems.

Product information

The Hose Barb CR Male Thread is a high-quality brass hose barb with male thread, suitable for various industrial and technical applications. Its robust brass material provides excellent corrosion resistance and a wide temperature range of -10 °C to 200 °C. Designed for a maximum working pressure of 16 bar, it is ideal for hydraulic and pneumatic systems.

Product information

The Hose Barb CR Male Thread is a high-quality brass hose barb with male thread, suitable for various industrial and technical applications. Its robust brass material provides excellent corrosion resistance and a wide temperature range of -10 °C to 200 °C. Designed for a maximum working pressure of 16 bar, it is ideal for hydraulic and pneumatic systems.

Product information

The Hose Barb CR Male Thread is a high-quality brass hose barb with male thread, suitable for various industrial and technical applications. Its robust brass material provides excellent corrosion resistance and a wide temperature range of -10 °C to 200 °C. Designed for a maximum working pressure of 16 bar, it is ideal for hydraulic and pneumatic systems.

Product information

The Hose Barb CR Male Thread is a high-quality brass hose barb with male thread, suitable for various industrial and technical applications. Its robust brass material provides excellent corrosion resistance and a wide temperature range of -10 °C to 200 °C. Designed for a maximum working pressure of 16 bar, it is ideal for hydraulic and pneumatic systems.

Product information

The Hose Barb CR Male Thread is a high-quality brass hose barb with male thread, suitable for various industrial and technical applications. Its robust brass material provides excellent corrosion resistance and a wide temperature range of -10 °C to 200 °C. Designed for a maximum working pressure of 16 bar, it is ideal for hydraulic and pneumatic systems.

Product information

The Hose Barb CR Male Thread is a high-quality brass hose barb with male thread, suitable for various industrial and technical applications. Its robust brass material provides excellent corrosion resistance and a wide temperature range of -10 °C to 200 °C. Designed for a maximum working pressure of 16 bar, it is ideal for hydraulic and pneumatic systems.

Product information

The Hose Barb CR Male Thread is a high-quality brass hose barb with male thread, suitable for various industrial and technical applications. Its robust brass material provides excellent corrosion resistance and a wide temperature range of -10 °C to 200 °C. Designed for a maximum working pressure of 16 bar, it is ideal for hydraulic and pneumatic systems.

Product information

The Hose Barb CR Male Thread is a high-quality brass hose barb with male thread, suitable for various industrial and technical applications. Its robust brass material provides excellent corrosion resistance and a wide temperature range of -10 °C to 200 °C. Designed for a maximum working pressure of 16 bar, it is ideal for hydraulic and pneumatic systems.

Product information

The Hose Barb CR Male Thread is a high-quality brass hose barb with male thread, suitable for various industrial and technical applications. Its robust brass material provides excellent corrosion resistance and a wide temperature range of -10 °C to 200 °C. Designed for a maximum working pressure of 16 bar, it is ideal for hydraulic and pneumatic systems.

Product information

The Hose Barb CR Male Thread is a high-quality brass hose barb with male thread, suitable for various industrial and technical applications. Its robust brass material provides excellent corrosion resistance and a wide temperature range of -10 °C to 200 °C. Designed for a maximum working pressure of 16 bar, it is ideal for hydraulic and pneumatic systems.

Product information

The Hose Barb CR Male Thread is a high-quality brass hose barb with male thread, suitable for various industrial and technical applications. Its robust brass material provides excellent corrosion resistance and a wide temperature range of -10 °C to 200 °C. Designed for a maximum working pressure of 16 bar, it is ideal for hydraulic and pneumatic systems.

Product information

The Hose Barb CR Male Thread is a high-quality brass hose barb with male thread, suitable for various industrial and technical applications. Its robust brass material provides excellent corrosion resistance and a wide temperature range of -10 °C to 200 °C. Designed for a maximum working pressure of 16 bar, it is ideal for hydraulic and pneumatic systems.

Data sheets

Specifications

Torque (Nm):10
Size 1:3/8"
Size 2:13 mm
Material:Dezincification-resistant CR brass
PN nominal pressure:16
Temperature range:-10 ºC - +200 ºC
Fitting type:Hose barb

Specifications

Torque (Nm):9
Size 1:1/4"
Size 2:10 mm
Material:Dezincification-resistant CR brass
PN nominal pressure:16
Temperature range:-10 ºC - +200 ºC
Fitting type:Hose barb

Specifications

Torque (Nm):10
Size 1:3/8"
Size 2:10 mm
Material:Dezincification-resistant CR brass
PN nominal pressure:16
Temperature range:-10 ºC - +200 ºC
Fitting type:Hose barb

Specifications

Torque (Nm):12
Size 1:1/2"
Size 2:13 mm
Material:Dezincification-resistant CR brass
PN nominal pressure:16
Temperature range:-10 ºC - +200 ºC
Fitting type:Hose barb

Specifications

Torque (Nm):12
Size 1:1/2"
Size 2:16 mm
Material:Dezincification-resistant CR brass
PN nominal pressure:16
Temperature range:-10 ºC - +200 ºC
Fitting type:Hose barb

Specifications

Torque (Nm):12
Size 1:1/2"
Size 2:20 mm
Material:Dezincification-resistant CR brass
PN nominal pressure:16
Temperature range:-10 ºC - +200 ºC
Fitting type:Hose barb

Specifications

Torque (Nm):16
Size 1:3/4"
Size 2:20 mm
Material:Dezincification-resistant CR brass
PN nominal pressure:16
Temperature range:-10 ºC - +200 ºC
Fitting type:Hose barb

Specifications

Torque (Nm):16
Size 1:3/4"
Size 2:25 mm
Material:Dezincification-resistant CR brass
PN nominal pressure:16
Temperature range:-10 ºC - +200 ºC
Fitting type:Hose barb

Specifications

Torque (Nm):16
Size 1:1"
Size 2:25 mm
Material:Dezincification-resistant CR brass
PN nominal pressure:16
Temperature range:-10 ºC - +200 ºC
Fitting type:Hose barb

Specifications

Torque (Nm):16
Size 1:1"1/4
Size 2:32 mm
Material:Dezincification-resistant CR brass
PN nominal pressure:16
Temperature range:-10 ºC - +200 ºC
Fitting type:Hose barb

Specifications

Torque (Nm):16
Size 1:1"1/4
Size 2:40 mm
Material:Dezincification-resistant CR brass
PN nominal pressure:16
Temperature range:-10 ºC - +200 ºC
Fitting type:Hose barb

Specifications

Torque (Nm):20
Additional Info 1:BSP
Size 1:1"1/2
Size 2:40 mm
Material:Dezincification-resistant CR brass
Standard / specification:EN 1982
PN nominal pressure:40
Pole +/-:Negative
Fitting type:Hose barb
Additional information:BSP

Specifications

Torque (Nm):20
Size 1:1"1/2
Size 2:50 mm
Material:Dezincification-resistant CR brass
PN nominal pressure:16
Temperature range:-10 ºC - +200 ºC
Fitting type:Hose barb

Specifications

Torque (Nm):20
Size 1:2"
Size 2:50 mm
Material:Dezincification-resistant CR brass
PN nominal pressure:16
Temperature range:-10 ºC - +200 ºC
Fitting type:Hose barb

14 versions

No.StockExtra infoDraaimoment (Nm)Extra Info 1Maat 1Maat 2Normering / SpecificatiePN nominal drukPole +/-Temperatuurbereik
53281014CR103/8"13 mm16-10 ºC - +200 ºC
53280610CR91/4"10 mm16-10 ºC - +200 ºC
53281010CR103/8"10 mm16-10 ºC - +200 ºC
53281313CR121/2"13 mm16-10 ºC - +200 ºC
53281316CR121/2"16 mm16-10 ºC - +200 ºC
53281320CR121/2"20 mm16-10 ºC - +200 ºC
53281920CR163/4"20 mm16-10 ºC - +200 ºC
53281925CR163/4"25 mm16-10 ºC - +200 ºC
53282525CR161"25 mm16-10 ºC - +200 ºC
53283232CR161"1/432 mm16-10 ºC - +200 ºC
53283240CR161"1/440 mm16-10 ºC - +200 ºC
53283838CRBSP20BSP1"1/240 mmEN 198240Negatief
53283850CR201"1/250 mm16-10 ºC - +200 ºC
53285050CR202"50 mm16-10 ºC - +200 ºC
