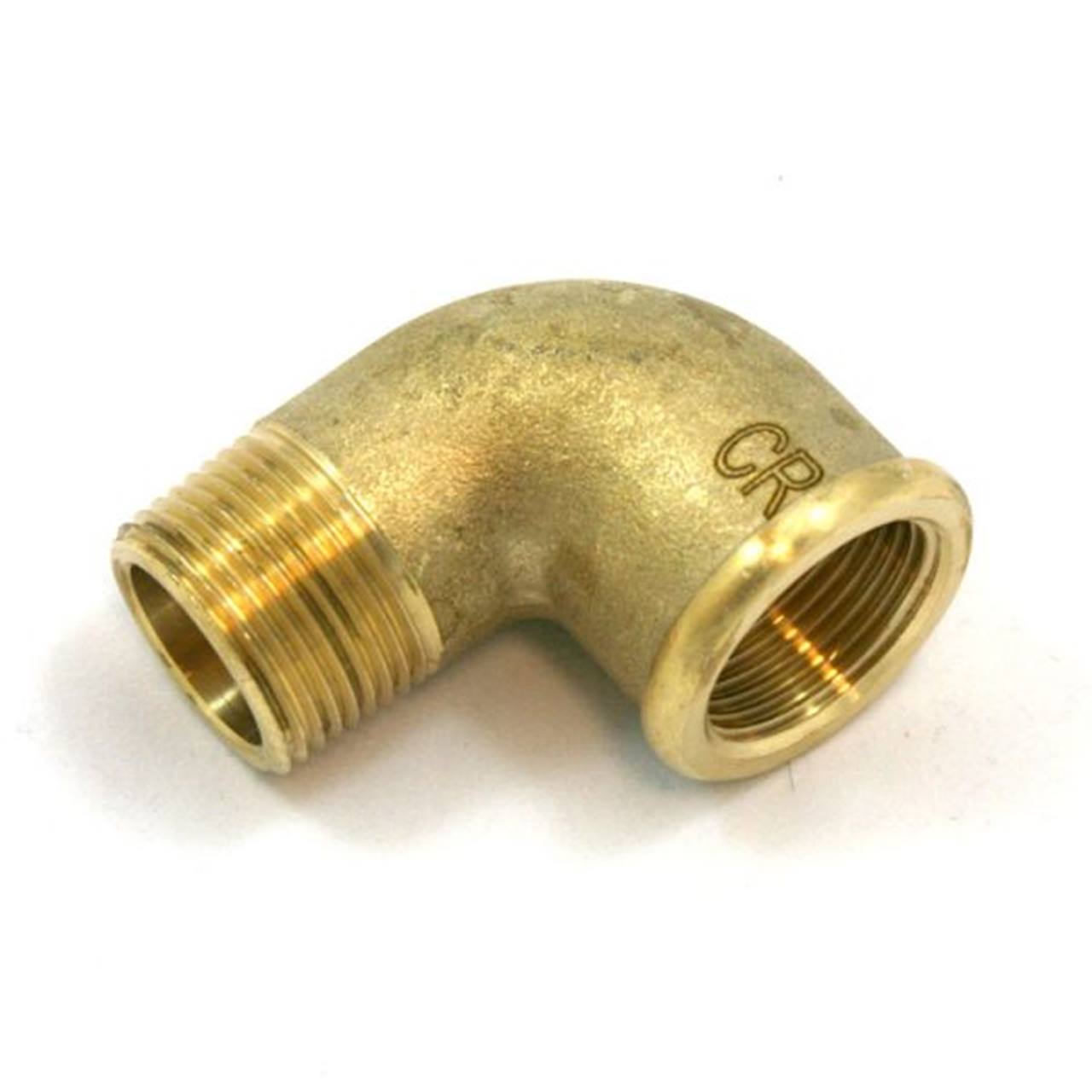

90° Elbow male-female CR
bocht 90 gr. Binnen-buitendraad 1/4 /CR
Make your choice:
Item number: 5830006CR
Product information
These 90° elbows with female and male threads are made from dezincification-resistant CR brass, conforming to EN 1982. They offer excellent corrosion resistance and durability, making them ideal for plumbing, heating, and industrial applications. Temperature range: -10 ºC to 200 ºC.
Data sheets
Specifications
| Material | : | Dezincification-resistant CR brass |
| Max pressure temperature PN16 | : | (-10 ºC - 100 ºC) = 16 | (120 ºC) = 13,5 | (150 ºC) = 9,5 | (170 |
| Reference standard | : | EN 1982 |
| Temperature range | : | -10 ºC - +200 ºC |
| Fitting type | : | Bend |
| Additional information | : | 90-degree bend |
8
versions
| No. | Stock | Additional information | Size 1 |
|---|---|---|---|
| 5830006CR | 90-degree bend, Female-male thread CR | ||
| 5830010CR | 90-degree bend, Internal-external thread CR | 3/8" | |
| 5830013CR | 90-degree bend, Internal-external thread CR | 1/2" | |
| 5830019CR | 90-degree bend, Internal-external thread CR | 3/4" | |
| 5830025CR | 90-degree bend, Internal-external thread CR | 1" | |
| 5830032CR | 90-degree bend, Internal-external thread CR | 1"1/4 | |
| 5830038CR | 90-degree bend, Internal-external thread CR | 1"1/2 | |
| 5830050CR | 90-degree bend, Internal-external thread CR | 2" |
