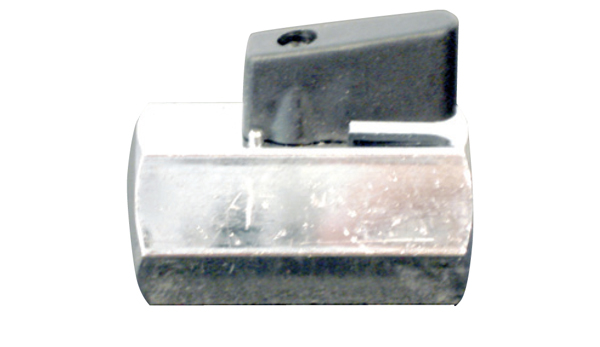

MINI ball valve 2x Fem. thread
MINI ball valve 2x Fem. thread 3/8
Make your choice:
Item number: 5241010
Product information
The chrome-plated mini ball valve is a compact, durable, and corrosion-resistant shut-off valve for liquid and gas systems. With high temperature resistance up to 180 °C and a working pressure of 15 bar, it is suitable for various industrial applications.
Data sheets
Specifications
| Torque (Nm) | : | 10 |
| Ball hole passage (mm) | : | 8 |
| Size 1 | : | 3/8" |
| Size 2 | : | 3/8" |
| Material | : | Brass, chrome-plated |
| Standard / specification | : | EN10226, ISO228, ANSI/ASME B1.20.1 |
| Maintenance | : | No additional maintenance required |
| PN nominal pressure | : | 15 |
| Reference standard | : | EN 10226, ISO 228, ANSI/ASME B1.20.1 |
| Temperature range | : | -30°C - 180°C |
| Test standard Torque | : | 150% of permitted test pressure PEA EN 805 |
| Fitting type | : | Mini ball valve |
3 versions
| No. | Stock | Draaimoment (Nm) | Maat 1 | Maat 2 |
|---|---|---|---|---|
| 5241010 | 10 | 3/8" | 3/8" | |
| 5241006 | 9 | 1/4" | 1/4" | |
| 5241013 | 12 | 1/2" | 1/2" |
