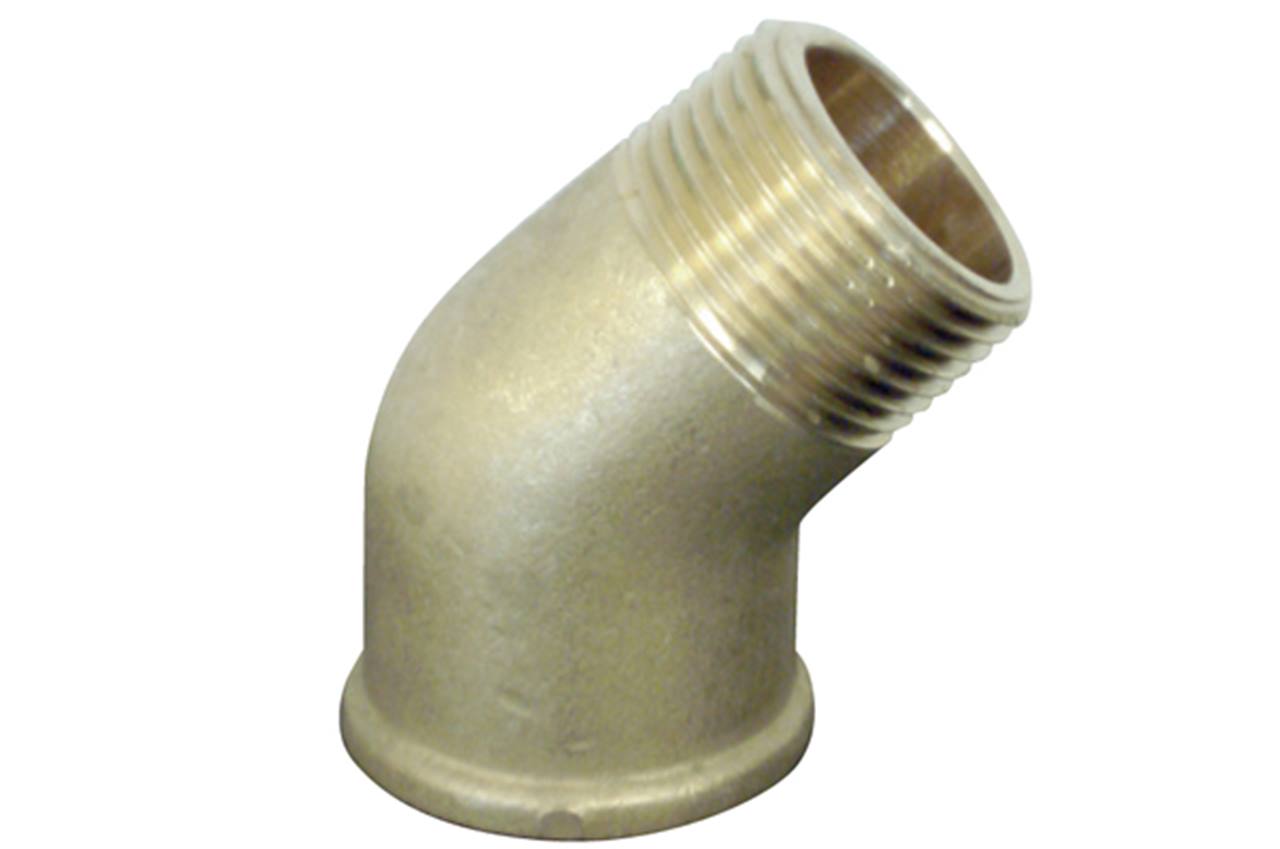

Elbow 45 DEGREES Fem.-Male thread
Elbow 45 DEGREES 3/8 Fem.-Male thread
Make your choice:
Item number: 5822010
Product information
These 45° elbows with female and male threads are made of brass and are ideal for piping systems where a gradual angle connection is needed. They withstand temperatures from -10 °C to 200 °C and provide a robust, corrosion-resistant solution for various sanitary and industrial applications.
Specifications
| Additional Info 1 | : | 45-degree bend |
| Additional Info 2 | : | Female-male thread |
| Size 1 | : | 3/8" |
| Material | : | Brass |
| Max pressure temperature PN16 | : | (-10 ºC - 100 ºC) = 16 | (120 ºC) = | (150 ºC) = | (170 ºC) = |
| Temperature range | : | -10 ºC - +200 ºC |
| Fitting type | : | Bend |
| Additional information | : | 45-degree bend |
7
versions
| No. | Stock | Additional information | Size 1 |
|---|---|---|---|
| 5822010 | 45-degree bend, Female-male thread | 3/8" | |
| 5822013 | 45-degree bend, Female-male thread | 1/2" | |
| 5822019 | 45-degree bend, Female-male thread | 3/4" | |
| 5822025 | 45-degree bend, Female-male thread | 1" | |
| 5822032 | 45-degree bend, Female-male thread | 1"1/4 | |
| 5822038 | 45-degree bend, Female-male thread | 1"1/2 | |
| 5822050 | 45-degree bend, Female-male thread | 2" |
