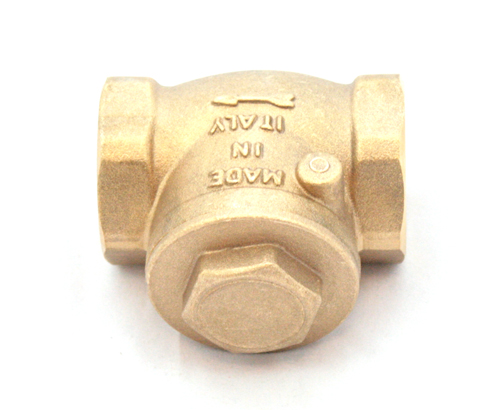

Brass check valve /hanging model
Brass check valve /hanging model 1/2
Make your choice:
Item number: 5228013
Product information
Brass Inline Check Valve with Swing Disc – Backflow Prevention for Piping Systems
Specifications
| ATA | : | ATA |
| Torque (Nm) | : | 12 |
| KIWA | : | KIWA |
| Size 1 | : | 1/2" |
| Size 2 | : | 1/2" |
| Material | : | Brass |
| Max pressure temperature PN16 | : | (-10 ºC - 100 ºC) = 16 | (120 ºC) = 13.5 | (150 ºC) = 9.5 | (170 |
| Standard / specification | : | EN10226, ISO228, ANSI/ASME B1.20.1 |
| Maintenance | : | No additional maintenance required |
| PN nominal pressure | : | 40 |
| Reference standard | : | EN 10226, ISO 228, ANSI/ASME B1.20.1 |
| Temperature range | : | -10°C - 200°C |
| Fitting type | : | Intermediate valve |
6 versions
| No. | Stock | Draaimoment (Nm) | Maat 1 | Maat 2 | PN nominal druk |
|---|---|---|---|---|---|
| 5228013 | 12 | 1/2" | 1/2" | 40 | |
| 5228019 | 16 | 3/4" | 3/4" | 40 | |
| 5228025 | 16 | 1" | 1" | 40 | |
| 5228032 | 16 | 1"1/4 | 1"1/4 | 25 | |
| 5228038 | 20 | 1"1/2 | 1"1/2 | 25 | |
| 5228050 | 20 | 2" | 2" | 25 |
