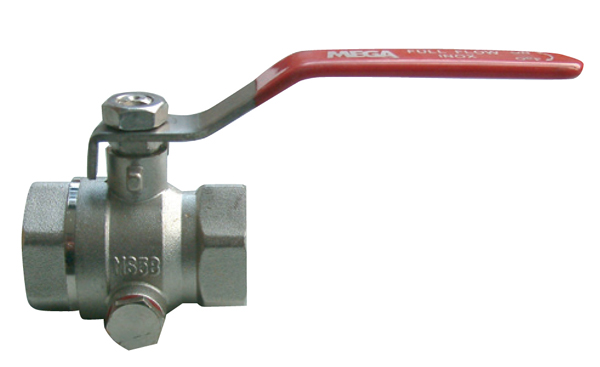

Ball valve with frost protection
Ball valve with frost protection 1/2
Make your choice:
Item number: 5248013
Product information
The Profec Ball Valve Type 109 is a durable and frost-resistant shut-off valve, perfect for a range of water, gas, and heating system applications. Its robust brass construction, PTFE sealing, and stainless steel handle ensure reliable, maintenance-free operation.
Specifications
| Torque (Nm) | : | 12 |
| Size 1 | : | 1/2" |
| Size 2 | : | 1/2" |
| Material | : | Brass, PTFE seal, stainless steel handle |
| Material 2 | : | Nickel-plated |
| Max pressure temperature PN25 | : | (-10 ºC - 100 ºC) = 25 | (120 ºC) = 21,8 | (150 ºC) = 16,5 | (17 |
| Standard / specification | : | EN10226, ISO228, ANSI/ASME B1.20.1 |
| Maintenance | : | No additional maintenance required |
| PN nominal pressure | : | 40 |
| Reference standard | : | EN 10226, ISO 228, ANSI/ASME B1.20.1 |
| Temperature range | : | -20°C - 180°C |
| Fitting type | : | Ball valve |
5 versions
| No. | Stock | Draaimoment (Nm) | Maat 1 | Maat 2 | PN nominal druk |
|---|---|---|---|---|---|
| 5248013 | 12 | 1/2" | 1/2" | 40 | |
| 5248019 | 16 | 3/4" | 3/4" | 40 | |
| 5248025 | 16 | 1" | 1" | 40 | |
| 5248032 | 16 | 1"1/4 | 1"1/4 | 25 | |
| 5248038 | 20 | 1"1/2 | 1"1/2 | 25 |
