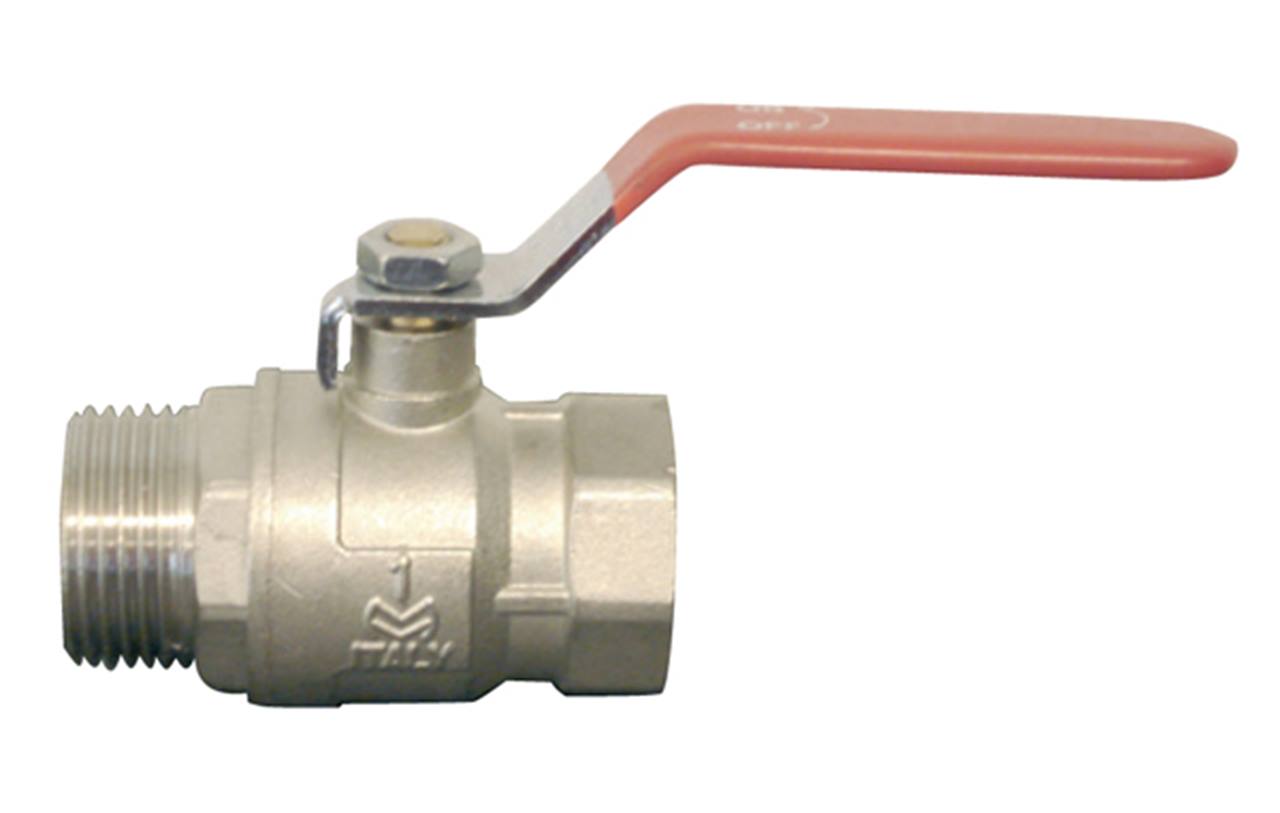

BALL VALVE Male-Fem. thread
BALL VALVE Male-Fem. thread 1/4
Make your choice:
Item number: 5251006
Product information
The Brass Ball Valve Female/Male Thread is a robust and reliable shut-off valve for a variety of industrial and sanitary applications. Thanks to its high temperature resistance and brass construction, it offers a long service life and trouble-free operation.
Data sheets
Specifications
| Torque (Nm) | : | 9 |
| Size 1 | : | 1/4" |
| Size 2 | : | 1/4" |
| Material | : | Brass |
| Max pressure temperature PN25 | : | (-10 ºC - 100 ºC) = 25 | (120 ºC) = 21,8 | (150 ºC) = 16,5 | (17 |
| Standard / specification | : | EN10226, ISO228, ANSI/ASME B1.20.1 |
| Maintenance | : | No additional maintenance required |
| PN nominal pressure | : | 40 |
| Reference standard | : | EN 10226, ISO 228, ANSI/ASME B1.20.1 |
| Temperature range | : | -10°C - 200°C |
| Fitting type | : | Ball valve |
8 versions
| No. | Stock | Draaimoment (Nm) | Maat 1 | Maat 2 | PN nominal druk |
|---|---|---|---|---|---|
| 5251006 | 9 | 1/4" | 1/4" | 40 | |
| 5251010 | 10 | 3/8" | 3/8" | 40 | |
| 5251013 | 12 | 1/2" | 1/2" | 40 | |
| 5251019 | 16 | 3/4" | 3/4" | 40 | |
| 5251025 | 16 | 1" | 1" | 40 | |
| 5251032 | 16 | 1"1/4 | 1"1/4 | 25 | |
| 5251038 | 20 | 1"1/2 | 1"1/2 | 25 | |
| 5251050 | 20 | 2" | 2" | 25 |
