Product information
Complete Ratio MP16 shore power kit with chrome-plated inlet and 15 metre cable
The Ratio MP16 Shore POWERKIT is a complete modular plug & play 230 VAC shore power system for smaller boats. The kit provides a simple and complete solution for creating a shore power connection on board.
This version consists of a Ratio MP16 inlet made from glass-fibre reinforced PA6 polyamide with a chrome-plated finish, a 15 metre H07BQ-F 3G1.5 mm² shore power cable and a single electrical protection box including fuse protection.
The electrical box is supplied with 4 metres of H07BQ-F 3G1.5 mm² connection cable for connection to the electrical installation on board.
Thanks to its modular plug & play design, the MP16 POWERKIT offers a practical and complete 230V shore power solution for smaller boats.
Specifications
Brand: Ratio Electric
Series: MP16 Shore POWERKIT
Voltage: 230 VAC
System: modular plug & play
Inlet: Ratio MP16
Inlet material: glass-fibre reinforced PA6 polyamide
Finish: chrome-plated
Shore power cable: H07BQ-F 3G1.5 mm²
Shore power cable length: 15 metres
Includes single electrical protection box
Fuse protection included
Electrical box connection cable: H07BQ-F 3G1.5 mm²
Connection cable length: 4 metres
Suitable for smaller boats
Product information
Complete Ratio MP16 shore power kit with polyamide inlet and 15 metre cable
The Ratio MP16 Shore POWERKIT is a complete modular plug & play 230 VAC shore power system for smaller boats.
This version features a Ratio MP16 inlet made from glass-fibre reinforced PA6 polyamide, combined with a 15 metre H07BQ-F 3G1.5 mm² shore power cable.
The kit also includes a single electrical protection box including fuse protection. The electrical box is supplied with 4 metres of H07BQ-F 3G1.5 mm² connection cable for connection to the boat's electrical installation.
A complete and practical solution for creating a 230V shore power supply on board.
Specifications
Brand: Ratio Electric
Series: MP16 Shore POWERKIT
Voltage: 230 VAC
System: modular plug & play
Inlet: Ratio MP16
Inlet material: glass-fibre reinforced PA6 polyamide
Shore power cable: H07BQ-F 3G1.5 mm²
Shore power cable length: 15 metres
Includes single electrical protection box
Fuse protection included
Electrical box connection cable: H07BQ-F 3G1.5 mm²
Connection cable length: 4 metres
Suitable for smaller boats
Product information

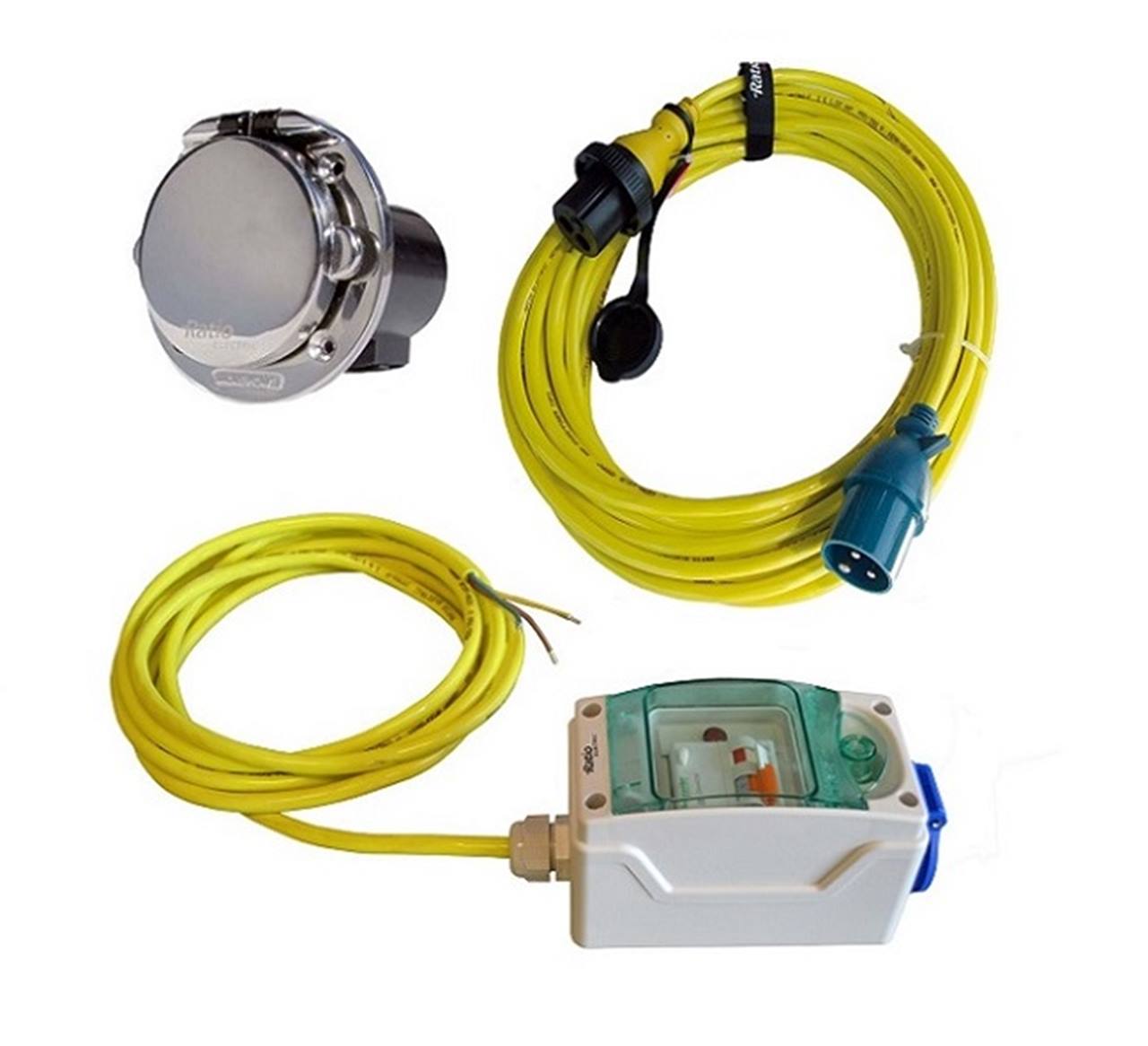

Complete Ratio MP16 shore power kit with stainless steel 316 inlet and 15 metre cable
The Ratio MP16 Shore POWERKIT is a complete modular plug & play 230 VAC shore power system for smaller boats.
This premium version features a Ratio MP16 shore power inlet made from 316 stainless steel. Thanks to its excellent corrosion resistance, stainless steel 316 is particularly suitable for marine environments.
The kit includes a 15 metre H07BQ-F 3G1.5 mm² shore power cable and a single electrical protection box including fuse protection. The electrical box is supplied with 4 metres of H07BQ-F 3G1.5 mm² connection cable for connection to the electrical installation on board.
The stainless steel 316 inlet combines a premium appearance with a material particularly well suited to applications on and around the water.
Specifications
Brand: Ratio Electric
Series: MP16 Shore POWERKIT
Voltage: 230 VAC
System: modular plug & play
Inlet: Ratio MP16
Inlet material: 316 stainless steel
Shore power cable: H07BQ-F 3G1.5 mm²
Shore power cable length: 15 metres
Includes single electrical protection box
Fuse protection included
Electrical box connection cable: H07BQ-F 3G1.5 mm²
Connection cable length: 4 metres
Suitable for marine applications
Suitable for smaller boats
Product information

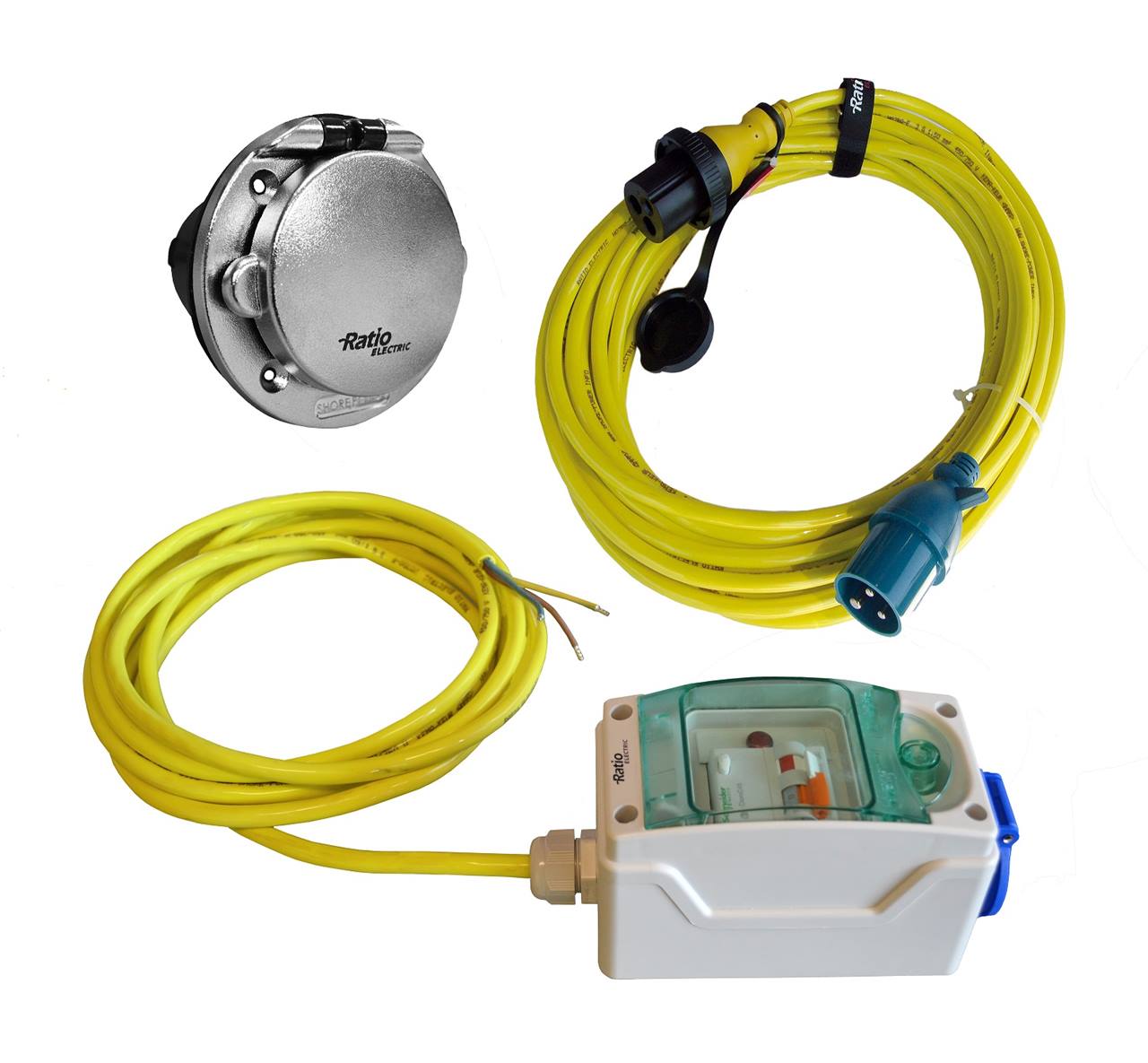

Complete Ratio MP16 shore power kit with chrome-plated inlet and 25 metre cable
The Ratio MP16 Shore POWERKIT is a complete modular plug & play 230 VAC shore power system for smaller boats. It provides a complete solution for connecting the boat's electrical installation to a shore power supply.
This version consists of a Ratio MP16 inlet made from glass-fibre reinforced PA6 polyamide with a chrome-plated finish, an extra-long 25 metre H07BQ-F 3G2.5 mm² shore power cable and a single electrical protection box including fuse protection.
The electrical box is supplied with 4 metres of H07BQ-F 3G1.5 mm² connection cable for connection to the electrical installation on board.
The 25 metre shore power cable provides additional reach when the shore power connection is located further away from the boat.
Specifications
Brand: Ratio Electric
Series: MP16 Shore POWERKIT
Voltage: 230 VAC
System: modular plug & play
Inlet: Ratio MP16
Inlet material: glass-fibre reinforced PA6 polyamide
Finish: chrome-plated
Shore power cable: H07BQ-F 3G2.5 mm²
Shore power cable length: 25 metres
Includes single electrical protection box
Fuse protection included
Electrical box connection cable: H07BQ-F 3G1.5 mm²
Connection cable length: 4 metres
Extra-long shore power cable for increased reach
Suitable for smaller boats
