Assembled Cable
PU shore-power cable H05BQ-F: PUR sheath, EPR insulation, −40 °C to +90 °C.
Item number: 3552823
Sales unit: 5 meter
Item number: 3556315
Sales unit: 15 meter
Item number: 3557325
Sales unit: 25 meter
Item number: 3558315
Sales unit: 15 meter
Item number: 3552836
Sales unit: 15 meter
Item number: 3559325
Sales unit: 25 meter
Item number: 3552832
Sales unit: 25 meter
Item number: 3552837
Sales unit: 15 meter
Item number: 3552838
Sales unit: 25 meter
Item number: 3552851
Sales unit: 15 meter
Item number: 3552852
Sales unit: 25 meter
Product information
The PU shore power cable H05BQ-F is specifically designed for MP inlets on boats. This cable features a robust Polyurethane (TMPU) outer sheath and durable Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against moisture, corrosion, and mechanical stresses such as abrasion. With a tinned copper conductor (Class 5) and compliance with ISO6722 Class B and ISO 14572 standards, the cable is optimized for applications at 300/500 V with a test voltage of up to 2–2.5 kV AC. Its wide operating temperature range from -40°C to +90°C ensures reliable performance in demanding marine environments.

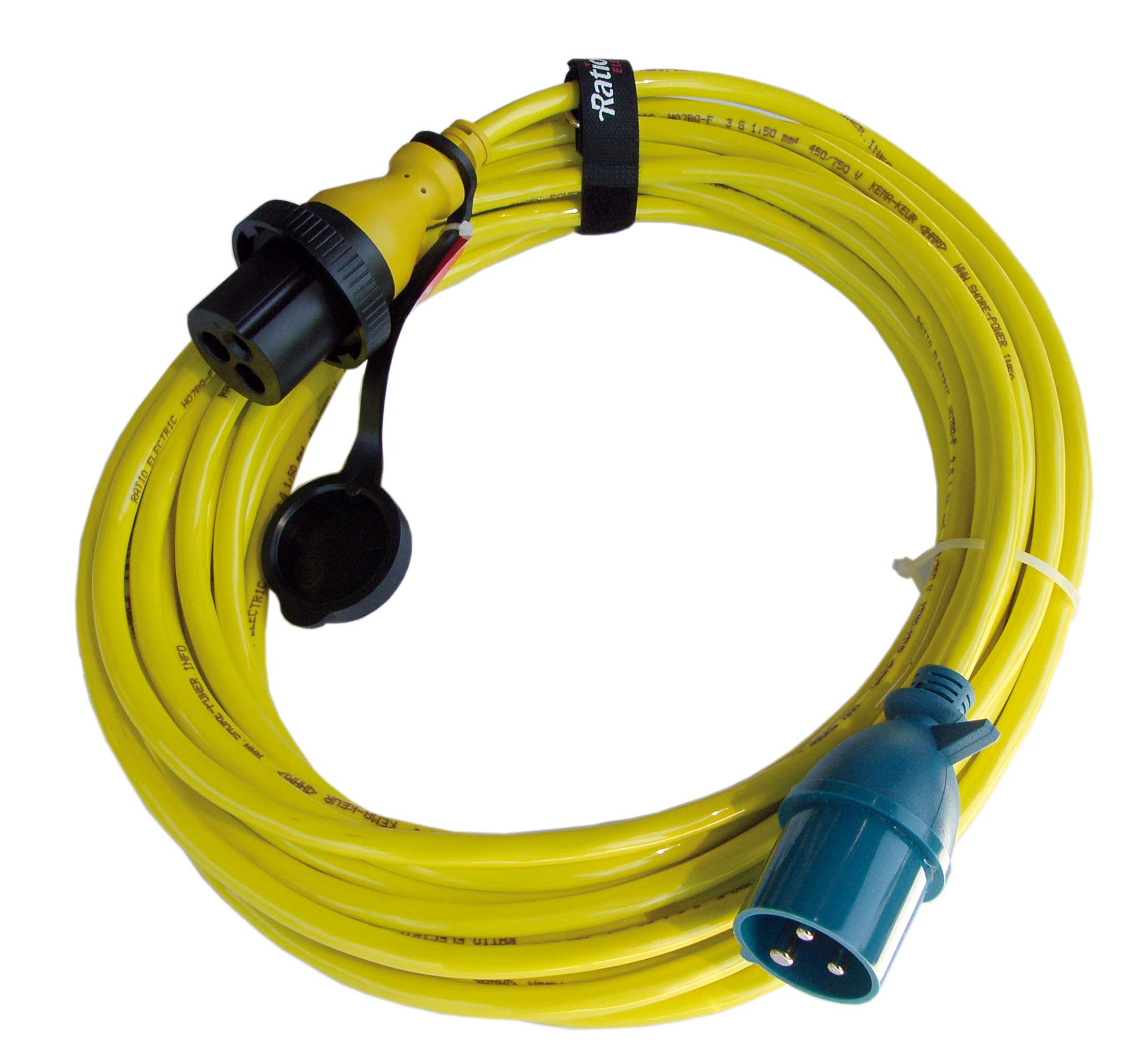

Shore power harnesses made with yellow PUR cable and molded connectors offer the best quality for your boat. The shore power connection cable is constructed from PUR and features two molded plugs that guarantee waterproofness and a long service life. The boat plug is equipped with a bayonet ring for a waterproof connection with the boat inlet and includes a voltage indicator and protective cap for ad
Product information
The PU shore power cable H05BQ-F is specifically designed for MP inlets on boats. This cable features a robust Polyurethane (TMPU) outer sheath and durable Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against moisture, corrosion, and mechanical stresses such as abrasion. With a tinned copper conductor (Class 5) and compliance with ISO6722 Class B and ISO 14572 standards, the cable is optimized for applications at 300/500 V with a test voltage of up to 2–2.5 kV AC. Its wide operating temperature range from -40°C to +90°C ensures reliable performance in demanding marine environments.
Shore power harnesses made with yellow PUR cable and molded connectors offer the best quality for your boat. The shore power connection cable is constructed from PUR and features two molded plugs that guarantee waterproofness and a long service life. The boat plug is equipped with a bayonet ring for a waterproof connection with the boat inlet and includes a voltage indicator and protective cap for ad
Product information
The PU shore power cable H05BQ-F is specifically designed for MP inlets on boats. This cable features a robust Polyurethane (TMPU) outer sheath and durable Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against moisture, corrosion, and mechanical stresses such as abrasion. With a tinned copper conductor (Class 5) and compliance with ISO6722 Class B and ISO 14572 standards, the cable is optimized for applications at 300/500 V with a test voltage of up to 2–2.5 kV AC. Its wide operating temperature range from -40°C to +90°C ensures reliable performance in demanding marine environments.
Shore power harnesses made with yellow PUR cable and molded connectors offer the best quality for your boat. The shore power connection cable is constructed from PUR and features two molded plugs that guarantee waterproofness and a long service life. The boat plug is equipped with a bayonet ring for a waterproof connection with the boat inlet and includes a voltage indicator and protective cap for ad
Product information
The PU shore power cable H05BQ-F is specifically designed for MP inlets on boats. This cable features a robust Polyurethane (TMPU) outer sheath and durable Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against moisture, corrosion, and mechanical stresses such as abrasion. With a tinned copper conductor (Class 5) and compliance with ISO6722 Class B and ISO 14572 standards, the cable is optimized for applications at 300/500 V with a test voltage of up to 2–2.5 kV AC. Its wide operating temperature range from -40°C to +90°C ensures reliable performance in demanding marine environments.
Shore power harnesses made with yellow PUR cable and molded connectors offer the best quality for your boat. The shore power connection cable is constructed from PUR and features two molded plugs that guarantee waterproofness and a long service life. The boat plug is equipped with a bayonet ring for a waterproof connection with the boat inlet and includes a voltage indicator and protective cap for ad
Product information
The PU shore power cable H05BQ-F is specifically designed for MP inlets on boats. This cable features a robust Polyurethane (TMPU) outer sheath and durable Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against moisture, corrosion, and mechanical stresses such as abrasion. With a tinned copper conductor (Class 5) and compliance with ISO6722 Class B and ISO 14572 standards, the cable is optimized for applications at 300/500 V with a test voltage of up to 2–2.5 kV AC. Its wide operating temperature range from -40°C to +90°C ensures reliable performance in demanding marine environments.
Shore power harnesses made with yellow PUR cable and molded connectors offer the best quality for your boat. The shore power connection cable is constructed from PUR and features two molded plugs that guarantee waterproofness and a long service life. The boat plug is equipped with a bayonet ring for a waterproof connection with the boat inlet and includes a voltage indicator and protective cap for ad
Product information
The PU shore power cable H05BQ-F is specifically designed for MP inlets on boats. This cable features a robust Polyurethane (TMPU) outer sheath and durable Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against moisture, corrosion, and mechanical stresses such as abrasion. With a tinned copper conductor (Class 5) and compliance with ISO6722 Class B and ISO 14572 standards, the cable is optimized for applications at 300/500 V with a test voltage of up to 2–2.5 kV AC. Its wide operating temperature range from -40°C to +90°C ensures reliable performance in demanding marine environments.
Shore power harnesses made with yellow PUR cable and molded connectors offer the best quality for your boat. The shore power connection cable is constructed from PUR and features two molded plugs that guarantee waterproofness and a long service life. The boat plug is equipped with a bayonet ring for a waterproof connection with the boat inlet and includes a voltage indicator and protective cap for ad
Product information
The PU shore power cable H05BQ-F is specifically designed for MP inlets on boats. This cable features a robust Polyurethane (TMPU) outer sheath and durable Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against moisture, corrosion, and mechanical stresses such as abrasion. With a tinned copper conductor (Class 5) and compliance with ISO6722 Class B and ISO 14572 standards, the cable is optimized for applications at 300/500 V with a test voltage of up to 2–2.5 kV AC. Its wide operating temperature range from -40°C to +90°C ensures reliable performance in demanding marine environments.
Shore power harnesses made with yellow PUR cable and molded connectors offer the best quality for your boat. The shore power connection cable is constructed from PUR and features two molded plugs that guarantee waterproofness and a long service life. The boat plug is equipped with a bayonet ring for a waterproof connection with the boat inlet and includes a voltage indicator and protective cap for ad
Product information
The PU shore power cable H05BQ-F is specifically designed for MP inlets on boats. This cable features a robust Polyurethane (TMPU) outer sheath and durable Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against moisture, corrosion, and mechanical stresses such as abrasion. With a tinned copper conductor (Class 5) and compliance with ISO6722 Class B and ISO 14572 standards, the cable is optimized for applications at 300/500 V with a test voltage of up to 2–2.5 kV AC. Its wide operating temperature range from -40°C to +90°C ensures reliable performance in demanding marine environments.
Shore power harnesses made with yellow PUR cable and molded connectors offer the best quality for your boat. The shore power connection cable is constructed from PUR and features two molded plugs that guarantee waterproofness and a long service life. The boat plug is equipped with a bayonet ring for a waterproof connection with the boat inlet and includes a voltage indicator and protective cap for ad
Product information
The PU shore power cable H05BQ-F is specifically designed for MP inlets on boats. This cable features a robust Polyurethane (TMPU) outer sheath and durable Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against moisture, corrosion, and mechanical stresses such as abrasion. With a tinned copper conductor (Class 5) and compliance with ISO6722 Class B and ISO 14572 standards, the cable is optimized for applications at 300/500 V with a test voltage of up to 2–2.5 kV AC. Its wide operating temperature range from -40°C to +90°C ensures reliable performance in demanding marine environments.
Shore power harnesses made with yellow PUR cable and molded connectors offer the best quality for your boat. The shore power connection cable is constructed from PUR and features two molded plugs that guarantee waterproofness and a long service life. The boat plug is equipped with a bayonet ring for a waterproof connection with the boat inlet and includes a voltage indicator and protective cap for ad
Product information
The PU shore power cable H05BQ-F is specifically designed for MP inlets on boats. This cable features a robust Polyurethane (TMPU) outer sheath and durable Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against moisture, corrosion, and mechanical stresses such as abrasion. With a tinned copper conductor (Class 5) and compliance with ISO6722 Class B and ISO 14572 standards, the cable is optimized for applications at 300/500 V with a test voltage of up to 2–2.5 kV AC. Its wide operating temperature range from -40°C to +90°C ensures reliable performance in demanding marine environments.
Shore power harnesses made with yellow PUR cable and molded connectors offer the best quality for your boat. The shore power connection cable is constructed from PUR and features two molded plugs that guarantee waterproofness and a long service life. The boat plug is equipped with a bayonet ring for a waterproof connection with the boat inlet and includes a voltage indicator and protective cap for ad
Product information
The PU shore power cable H05BQ-F is specifically designed for MP inlets on boats. This cable features a robust Polyurethane (TMPU) outer sheath and durable Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against moisture, corrosion, and mechanical stresses such as abrasion. With a tinned copper conductor (Class 5) and compliance with ISO6722 Class B and ISO 14572 standards, the cable is optimized for applications at 300/500 V with a test voltage of up to 2–2.5 kV AC. Its wide operating temperature range from -40°C to +90°C ensures reliable performance in demanding marine environments.
Shore power harnesses made with yellow PUR cable and molded connectors offer the best quality for your boat. The shore power connection cable is constructed from PUR and features two molded plugs that guarantee waterproofness and a long service life. The boat plug is equipped with a bayonet ring for a waterproof connection with the boat inlet and includes a voltage indicator and protective cap for ad
Specifications
| Number of conductors | : | 3 |
| Amperage (A) | : | 16 |
| Protection | : | Polyurethane (TMPU) |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 9.9 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 110 |
| Insulation | : | Ethylene propylene rubber (EPR) |
| Cable length | : | 5 |
| Class | : | Class 5 |
| Core Color | : | Green-yellow, Blue, Brown |
| Sheath Color | : | Yellow |
| Max temperature (°C) | : | 90 |
| Min temperature (°C) | : | -40 |
| Standard / specification | : | ISO6722 ClassB / ISO 14572 |
| Ohm | : | 7.98 |
| Oil resistance | : | Oliebestendigheid |
| Ozone resistant | : | Ozon bestendig |
| RAL | : | 1021 |
| Temperature range | : | -40 - +90 |
| Test voltage | : | 2 - 2.5 kV AC |
| Cable type | : | Shore power cable |
| Cable type extra | : | PU H07BQ-F |
| UV resistant | : | UV-bestendig |
| Flame retardant | : | Vlam vertragend |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 3 x 2,5 |
Specifications
| Number of conductors | : | 3 |
| Amperage (A) | : | 10 |
| Protection | : | Polyurethane (TMPU) |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 8.2 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 85 |
| Insulation | : | Ethylene propylene rubber (EPR) |
| Cable length | : | 15 |
| Class | : | Class 5 |
| Core Color | : | Green-yellow, Blue, Brown |
| Sheath Color | : | Yellow |
| Max temperature (°C) | : | 90 |
| Min temperature (°C) | : | -40 |
| Standard / specification | : | ISO6722 ClassB / ISO 14572 |
| Ohm | : | 13.7 |
| Oil resistance | : | Oliebestendigheid |
| Ozone resistant | : | Ozon bestendig |
| RAL | : | 1021 |
| Temperature range | : | -40 - +90 |
| Test voltage | : | 2 - 2.5 kV AC |
| Cable type | : | Shore power cable |
| Cable type extra | : | PU H07BQ-F |
| UV resistant | : | UV-bestendig |
| Flame retardant | : | Vlam vertragend |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 3 x 1,5 |
Specifications
| Number of conductors | : | 3 |
| Amperage (A) | : | 10 |
| Protection | : | Polyurethane (TMPU) |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 8.2 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 85 |
| Insulation | : | Ethylene propylene rubber (EPR) |
| Cable length | : | 25 |
| Class | : | Class 5 |
| Core Color | : | Green-yellow, Blue, Brown |
| Sheath Color | : | Yellow |
| Max temperature (°C) | : | 90 |
| Min temperature (°C) | : | -40 |
| Standard / specification | : | ISO6722 ClassB / ISO 14572 |
| Ohm | : | 13.7 |
| Oil resistance | : | Oliebestendigheid |
| Ozone resistant | : | Ozon bestendig |
| RAL | : | 1021 |
| Temperature range | : | -40 - +90 |
| Test voltage | : | 2 - 2.5 kV AC |
| Cable type | : | Shore power cable |
| Cable type extra | : | PU H07BQ-F |
| UV resistant | : | UV-bestendig |
| Flame retardant | : | Vlam vertragend |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 3 x 1,5 |
Specifications
| Number of conductors | : | 3 |
| Amperage (A) | : | 16 |
| Protection | : | Polyurethane (TMPU) |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 9.9 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 110 |
| Insulation | : | Ethylene propylene rubber (EPR) |
| Cable length | : | 15 |
| Class | : | Class 5 |
| Core Color | : | Green-yellow, Blue, Brown |
| Sheath Color | : | Yellow |
| Max temperature (°C) | : | 90 |
| Min temperature (°C) | : | -40 |
| Standard / specification | : | ISO6722 ClassB / ISO 14572 |
| Ohm | : | 7.98 |
| Oil resistance | : | Oliebestendigheid |
| Ozone resistant | : | Ozon bestendig |
| RAL | : | 1021 |
| Temperature range | : | -40 - +90 |
| Test voltage | : | 2 - 2.5 kV AC |
| Cable type | : | Shore power cable |
| Cable type extra | : | PU H07BQ-F |
| UV resistant | : | UV-bestendig |
| Flame retardant | : | Vlam vertragend |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 3 x 2,5 |
Specifications
| Number of conductors | : | 3 |
| Amperage (A) | : | 25 |
| Protection | : | Polyurethane (TMPU) |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 11.5 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 140 |
| Insulation | : | Ethylene propylene rubber (EPR) |
| Cable length | : | 15 |
| Class | : | Class 5 |
| Core Color | : | Green-yellow, Blue, Brown |
| Sheath Color | : | Yellow |
| Max temperature (°C) | : | 90 |
| Min temperature (°C) | : | -40 |
| Standard / specification | : | ISO6722 ClassB / ISO 14572 |
| Ohm | : | 4.95 |
| Oil resistance | : | Oliebestendigheid |
| Ozone resistant | : | Ozon bestendig |
| RAL | : | 1021 |
| Temperature range | : | -40 - +90 |
| Test voltage | : | 2 - 2.5 kV AC |
| Cable type | : | Shore power cable |
| Cable type extra | : | PU H07BQ-F |
| UV resistant | : | UV-bestendig |
| Flame retardant | : | Vlam vertragend |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 3 x 4 |
Specifications
| Number of conductors | : | 3 |
| Amperage (A) | : | 16 |
| Protection | : | Polyurethane (TMPU) |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 9.9 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 110 |
| Insulation | : | Ethylene propylene rubber (EPR) |
| Cable length | : | 25 |
| Class | : | Class 5 |
| Core Color | : | Green-yellow, Blue, Brown |
| Sheath Color | : | Yellow |
| Max temperature (°C) | : | 90 |
| Min temperature (°C) | : | -40 |
| Standard / specification | : | ISO6722 ClassB / ISO 14572 |
| Ohm | : | 7.98 |
| Oil resistance | : | Oliebestendigheid |
| Ozone resistant | : | Ozon bestendig |
| RAL | : | 1021 |
| Temperature range | : | -40 - +90 |
| Test voltage | : | 2 - 2.5 kV AC |
| Cable type | : | Shore power cable |
| Cable type extra | : | PU H07BQ-F |
| UV resistant | : | UV-bestendig |
| Flame retardant | : | Vlam vertragend |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 3 x 2,5 |
Specifications
| Number of conductors | : | 3 |
| Amperage (A) | : | 25 |
| Protection | : | Polyurethane (TMPU) |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 11.5 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 140 |
| Insulation | : | Ethylene propylene rubber (EPR) |
| Cable length | : | 25 |
| Class | : | Class 5 |
| Core Color | : | Green-yellow, Blue, Brown |
| Sheath Color | : | Yellow |
| Max temperature (°C) | : | 90 |
| Min temperature (°C) | : | -40 |
| Standard / specification | : | ISO6722 ClassB / ISO 14572 |
| Ohm | : | 4.95 |
| Oil resistance | : | Oliebestendigheid |
| Ozone resistant | : | Ozon bestendig |
| RAL | : | 1021 |
| Temperature range | : | -40 - +90 |
| Test voltage | : | 2 - 2.5 kV AC |
| Cable type | : | Shore power cable |
| Cable type extra | : | PU H07BQ-F |
| UV resistant | : | UV-bestendig |
| Flame retardant | : | Vlam vertragend |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 4 x 4 |
Specifications
| Number of conductors | : | 3 |
| Amperage (A) | : | 32 |
| Protection | : | Polyurethane (TMPU) |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 12.8 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 180 |
| Insulation | : | Ethylene propylene rubber (EPR) |
| Cable length | : | 15 |
| Class | : | Class 5 |
| Core Color | : | Green-yellow, Blue, Brown |
| Sheath Color | : | Yellow |
| Max temperature (°C) | : | 90 |
| Min temperature (°C) | : | -40 |
| Standard / specification | : | ISO6722 ClassB / ISO 14572 |
| Ohm | : | 3.39 |
| Oil resistance | : | Oliebestendigheid |
| Ozone resistant | : | Ozon bestendig |
| RAL | : | 1021 |
| Temperature range | : | -40 - +90 |
| Test voltage | : | 2 - 2.5 kV AC |
| Cable type | : | Shore power cable |
| Cable type extra | : | PU H07BQ-F |
| UV resistant | : | UV-bestendig |
| Flame retardant | : | Vlam vertragend |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 3 x 6 |
Specifications
| Number of conductors | : | 3 |
| Amperage (A) | : | 32 |
| Protection | : | Polyurethane (TMPU) |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 12.8 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 180 |
| Insulation | : | Ethylene propylene rubber (EPR) |
| Cable length | : | 25 |
| Class | : | Class 5 |
| Core Color | : | Green-yellow, Blue, Brown |
| Sheath Color | : | Yellow |
| Max temperature (°C) | : | 90 |
| Min temperature (°C) | : | -40 |
| Standard / specification | : | ISO6722 ClassB / ISO 14572 |
| Ohm | : | 3.39 |
| Oil resistance | : | Oliebestendigheid |
| Ozone resistant | : | Ozon bestendig |
| RAL | : | 1021 |
| Temperature range | : | -40 - +90 |
| Test voltage | : | 2 - 2.5 kV AC |
| Cable type | : | Shore power cable |
| Cable type extra | : | PU H07BQ-F |
| UV resistant | : | UV-bestendig |
| Flame retardant | : | Vlam vertragend |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 3 x 6 |
Specifications
| Number of conductors | : | 3 |
| Amperage (A) | : | 50 |
| Protection | : | Polyurethane (TMPU) |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 15.5 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 250 |
| Insulation | : | Ethylene propylene rubber (EPR) |
| Cable length | : | 15 |
| Class | : | Class 5 |
| Core Color | : | Green-yellow, Blue, Brown |
| Sheath Color | : | Yellow |
| Max temperature (°C) | : | 90 |
| Min temperature (°C) | : | -40 |
| Standard / specification | : | ISO6722 ClassB / ISO 14572 |
| Ohm | : | 1.91 |
| Oil resistance | : | Oliebestendigheid |
| Ozone resistant | : | Ozon bestendig |
| RAL | : | 1021 |
| Temperature range | : | -40 - +90 |
| Test voltage | : | 2 - 2.5 kV AC |
| Cable type | : | Shore power cable |
| Cable type extra | : | PU H07BQ-F |
| UV resistant | : | UV-bestendig |
| Flame retardant | : | Vlam vertragend |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 3 x 10 |
Specifications
| Number of conductors | : | 3 |
| Amperage (A) | : | 50 |
| Protection | : | Polyurethane (TMPU) |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 15.5 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 250 |
| Insulation | : | Ethylene propylene rubber (EPR) |
| Cable length | : | 25 |
| Class | : | Class 5 |
| Core Color | : | Green-yellow, Blue, Brown |
| Sheath Color | : | Yellow |
| Max temperature (°C) | : | 90 |
| Min temperature (°C) | : | -40 |
| Standard / specification | : | ISO6722 ClassB / ISO 14572 |
| Ohm | : | 1.91 |
| Oil resistance | : | Oliebestendigheid |
| Ozone resistant | : | Ozon bestendig |
| RAL | : | 1021 |
| Temperature range | : | -40 - +90 |
| Test voltage | : | 2 - 2.5 kV AC |
| Cable type | : | Shore power cable |
| Cable type extra | : | PU H07BQ-F |
| UV resistant | : | UV-bestendig |
| Flame retardant | : | Vlam vertragend |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 3 x 10 |
11 versions
| No. | Stock | Bekabeling maat in mm² | Amperage (A) | Diameter in mm | Gewicht (KG/KM) | Kabellengte | Ohm |
|---|---|---|---|---|---|---|---|
| 3552823 | 3 x 2,5 | 16 | 9.9 | 110 | 5 | 7.98 | |
| 3556315 | 3 x 1,5 | 10 | 8.2 | 85 | 15 | 13.7 | |
| 3557325 | 3 x 1,5 | 10 | 8.2 | 85 | 25 | 13.7 | |
| 3558315 | 3 x 2,5 | 16 | 9.9 | 110 | 15 | 7.98 | |
| 3552836 | 3 x 4 | 25 | 11.5 | 140 | 15 | 4.95 | |
| 3559325 | 3 x 2,5 | 16 | 9.9 | 110 | 25 | 7.98 | |
| 3552832 | 4 x 4 | 25 | 11.5 | 140 | 25 | 4.95 | |
| 3552837 | 3 x 6 | 32 | 12.8 | 180 | 15 | 3.39 | |
| 3552838 | 3 x 6 | 32 | 12.8 | 180 | 25 | 3.39 | |
| 3552851 | 3 x 10 | 50 | 15.5 | 250 | 15 | 1.91 | |
| 3552852 | 3 x 10 | 50 | 15.5 | 250 | 25 | 1.91 |
Related items
Stainless steel inlet for MP systems, 16 A / 230 V
IP56 for excellent protection against water and dust
Straight design with screw terminal, suitable for boats and campers
High-quality stainless finish for long-term durability
Adapter cable from Schuko (CEE7/7 male) to CEE female
Splash-proof (IP44) connection for 16 A / 250 V
Made of thermoplastic PUR for extra durability
Ideal for temporary use on boats, campsites, or in workshops
Complete walstroomset voor kleine boten.
Modular plug & play 230 VAC
Materiaal Inlet : polyamide PA6 verchroomd
Snoer/ Kabel : H07BQ-F 3G1,50mm2 10 meter lengte
Zekeringskast : H07BQ-F 3G1,50mm2 met 4 meter kabel
Practical CEE splitter with one male and two female connections
IP44 protection against splashes and dirt
Suitable for 16 A / 250 V in marine or industrial settings
Ideal for distributing power without extra extension cords
Adapter cable from CEE male to Schuko (CEE7/3) female
Splash-proof (IP44) connection for 16 A / 250 V
High-quality thermoplastic PUR for robust protection
Handy for connecting Schuko-plug devices to a CEE socket
Related items
Stainless steel inlet for MP systems, 16 A / 230 V
IP56 for excellent protection against water and dust
Straight design with screw terminal, suitable for boats and campers
High-quality stainless finish for long-term durability
MP inlet with chrome finish for a luxurious appearance
16 A / 230 V, IP56 for marine and outdoor use
Screw terminals and straight design for quick installation
Stylish and durable, ideal for yachts or campers
White polyamide MP inlet, 16 A / 230 V, IP56
Lightweight yet robust, with straight entry and screw terminal
Suitable for damp environments like boats or off-grid setups
Combines ease of use with a sleek design
The PU shore power cable H05BQ-F is specifically designed for MP inlets on boats. This cable features a robust Polyurethane (TMPU) outer sheath and durable Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against moisture, corrosion, and mechanical stresses such as abrasion. With a tinned copper conductor (Class 5) and compliance with ISO6722 Class B and ISO 14572 standards, the cable is optimized for applications at 300/500 V with a test voltage of up to 2–2.5 kV AC. Its wide operating temperature range from -40°C to +90°C ensures reliable performance in demanding marine environments.
Shore power harnesses made with yellow PUR cable and molded connectors offer the best quality for your boat. The shore power connection cable is constructed from PUR and features two molded plugs that guarantee waterproofness and a long service life. The boat plug is equipped with a bayonet ring for a waterproof connection with the boat inlet and includes a voltage indicator and protective cap for ad
Stainless steel wall socket (CEE7/3 female / schuko) with IP56
16 A / 230 V, screw terminals, straight connection
Highly suitable for marine environments thanks to stainless steel
Elegant and durable solution for onboard power supply
Related items
Adapter cable from Schuko (CEE7/7 male) to CEE female
Splash-proof (IP44) connection for 16 A / 250 V
Made of thermoplastic PUR for extra durability
Ideal for temporary use on boats, campsites, or in workshops
Practical CEE splitter with one male and two female connections
IP44 protection against splashes and dirt
Suitable for 16 A / 250 V in marine or industrial settings
Ideal for distributing power without extra extension cords
Adapter cable from CEE male to Schuko (CEE7/3) female
Splash-proof (IP44) connection for 16 A / 250 V
High-quality thermoplastic PUR for robust protection
Handy for connecting Schuko-plug devices to a CEE socket
Stainless steel inlet for MP systems, 16 A / 230 V
IP56 for excellent protection against water and dust
Straight design with screw terminal, suitable for boats and campers
High-quality stainless finish for long-term durability
Related items
Stainless steel inlet for MP systems, 16 A / 230 V
IP56 for excellent protection against water and dust
Straight design with screw terminal, suitable for boats and campers
High-quality stainless finish for long-term durability
White polyamide MP inlet, 16 A / 230 V, IP56
Lightweight yet robust, with straight entry and screw terminal
Suitable for damp environments like boats or off-grid setups
Combines ease of use with a sleek design
MP inlet with chrome finish for a luxurious appearance
16 A / 230 V, IP56 for marine and outdoor use
Screw terminals and straight design for quick installation
Stylish and durable, ideal for yachts or campers
Adapter cable from Schuko (CEE7/7 male) to CEE female
Splash-proof (IP44) connection for 16 A / 250 V
Made of thermoplastic PUR for extra durability
Ideal for temporary use on boats, campsites, or in workshops
Practical CEE splitter with one male and two female connections
IP44 protection against splashes and dirt
Suitable for 16 A / 250 V in marine or industrial settings
Ideal for distributing power without extra extension cords
Related items
Stainless steel inlet for MP systems, 32 A / 230 V
IP56 rating against water and dust
Easy installation with screw terminal and straight design
Designed for larger yachts, campers, or industrial uses
Sturdy MP plug for higher current demands, 32 A / 250 V
Yellow thermoplastic housing with IP44 rating
Easy direct mounting with screw terminal
Suitable for intensive use in marine and automotive sectors
The PU shore power cable H05BQ-F is specifically designed for MP inlets on boats. This cable features a robust Polyurethane (TMPU) outer sheath and durable Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against moisture, corrosion, and mechanical stresses such as abrasion. With a tinned copper conductor (Class 5) and compliance with ISO6722 Class B and ISO 14572 standards, the cable is optimized for applications at 300/500 V with a test voltage of up to 2–2.5 kV AC. Its wide operating temperature range from -40°C to +90°C ensures reliable performance in demanding marine environments.
Shore power harnesses made with yellow PUR cable and molded connectors offer the best quality for your boat. The shore power connection cable is constructed from PUR and features two molded plugs that guarantee waterproofness and a long service life. The boat plug is equipped with a bayonet ring for a waterproof connection with the boat inlet and includes a voltage indicator and protective cap for ad
The PU shore power cable H05BQ-F is specifically designed for MP inlets on boats. This cable features a robust Polyurethane (TMPU) outer sheath and durable Ethylene Propylene Rubber (EPR) insulation, providing excellent protection against moisture, corrosion, and mechanical stresses such as abrasion. With a tinned copper conductor (Class 5) and compliance with ISO6722 Class B and ISO 14572 standards, the cable is optimized for applications at 300/500 V with a test voltage of up to 2–2.5 kV AC. Its wide operating temperature range from -40°C to +90°C ensures reliable performance in demanding marine environments.
Shore power harnesses made with yellow PUR cable and molded connectors offer the best quality for your boat. The shore power connection cable is constructed from PUR and features two molded plugs that guarantee waterproofness and a long service life. The boat plug is equipped with a bayonet ring for a waterproof connection with the boat inlet and includes a voltage indicator and protective cap for ad
Plastic CEE plug, IP44 protection
32 A / 230 V, screw terminal, straight design
Reliable for heavier applications on boats or in workshops

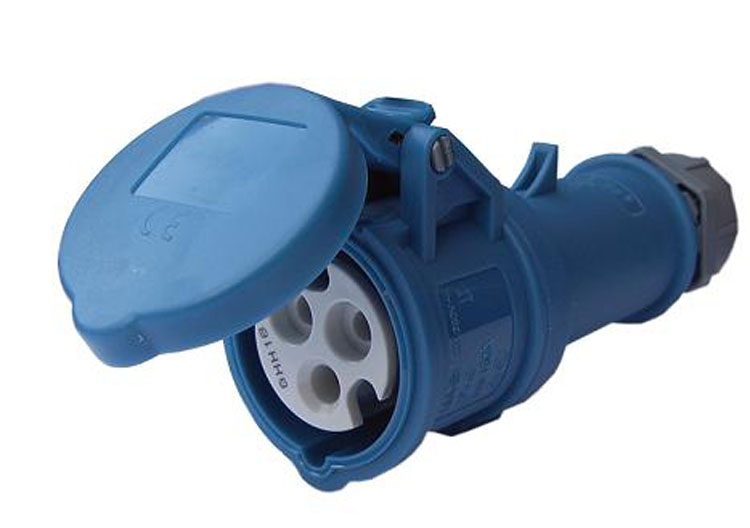

Plastic CEE socket, IP44 protection
32 A / 230 V, screw terminal, straight design
Perfect for heavy-duty electrical installations
Ask our experts
Our specialists are ready to advise you.
