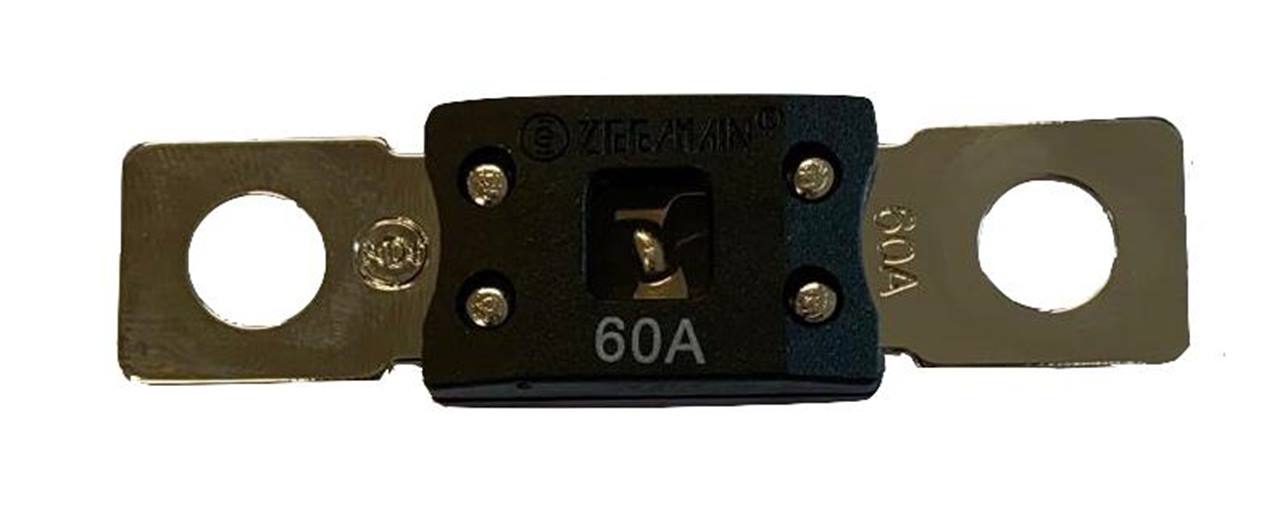

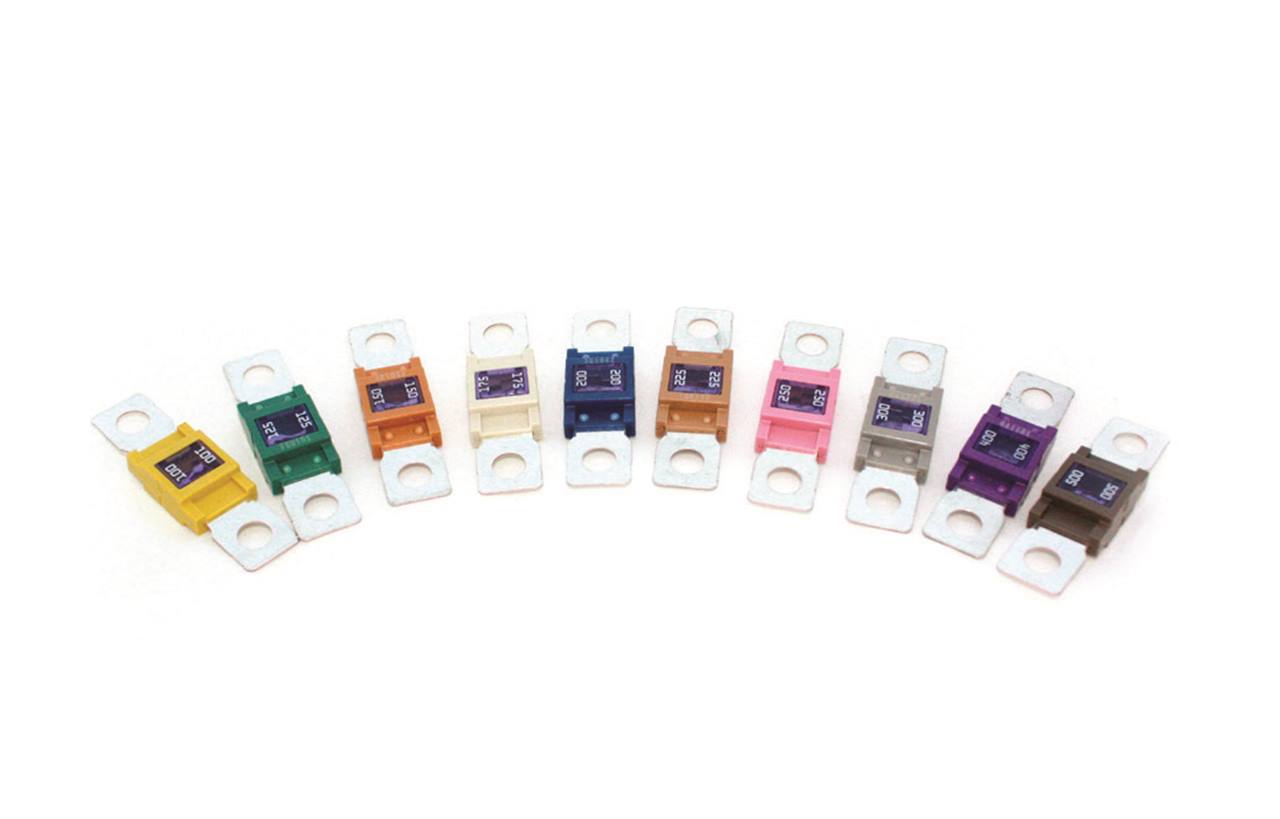

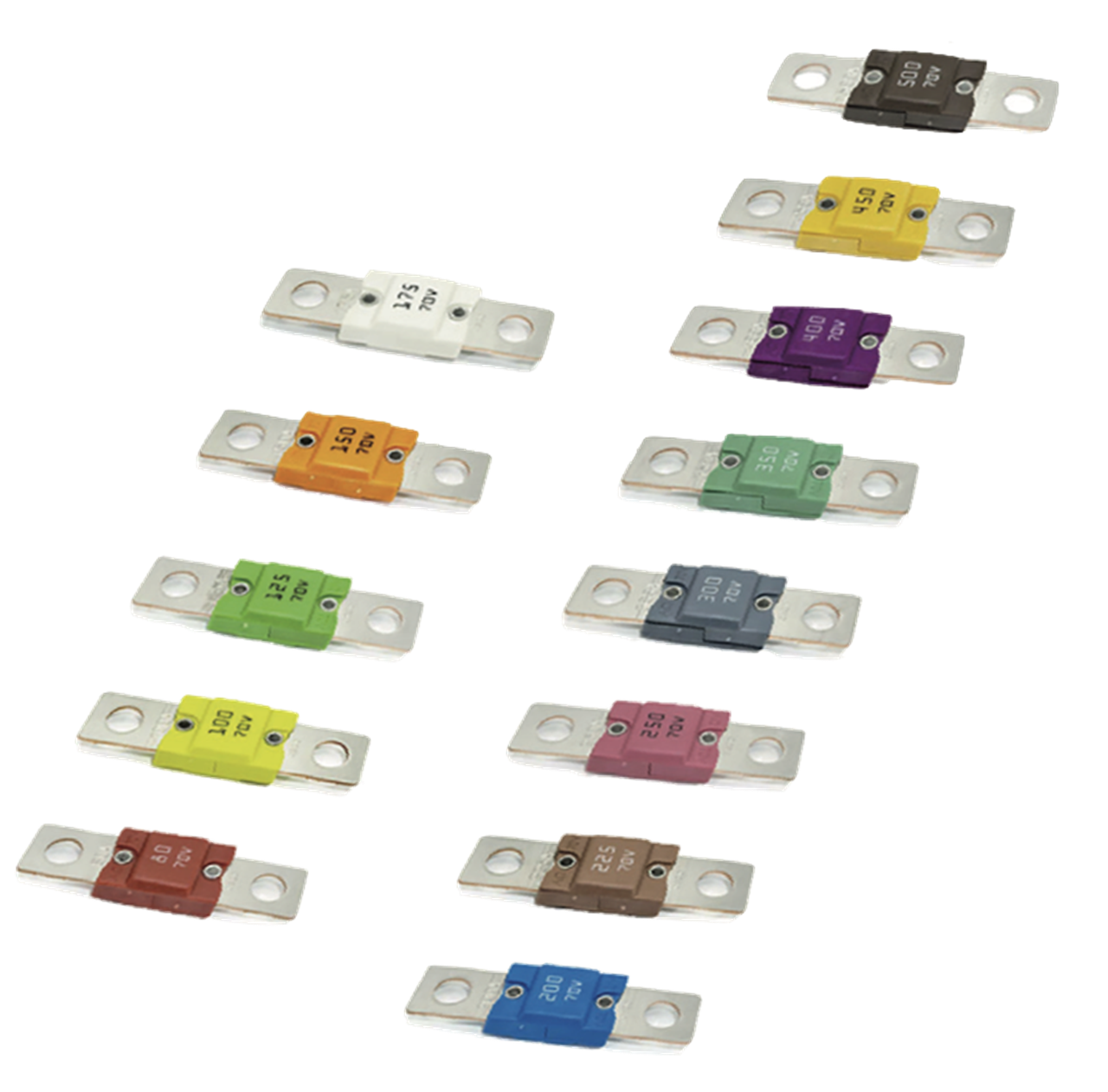

Mega fuses 32V and 70V, 40A – 500A
Item number: 9550080
Item number: 9550100
Item number: 9550125
Item number: 9550150
Item number: 9550175
Item number: 9550200
Item number: 9550225
Item number: 9550250
Item number: 9550300
Item number: 9550400
Item number: 9550500
Item number: 9550040
Item number: 9550060
Item number: 9550050
Item number: 9551080
Item number: 9551100
Item number: 9551125
Item number: 9551150
Item number: 9551175
Item number: 9551200
Item number: 9551225
Item number: 9551250
Item number: 9551300
Item number: 9551350
Item number: 9551400
Item number: 9551450
Item number: 9551500
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Product information
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Data sheets
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Red |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 32 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 80 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Yellow |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 32 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 100 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Green |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 32 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 125 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Orange |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 32 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 150 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | White |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 32 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 175 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Blue |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 32 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 200 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Light brown |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 32 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 225 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Pink |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 32 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 250 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Grey |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 32 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 300 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Purple |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 32 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 400 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Dark brown |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 32 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 500 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Black |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 32 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 40 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Black |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 32 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 60 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Black |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 32 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 50 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Red |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 70 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 80 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Yellow |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 70 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 100 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Green |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 70 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 125 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Orange |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 70 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 150 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | White |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 70 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 175 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Blue |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 70 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 200 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Light brown |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 70 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 225 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Pink |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 70 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 250 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Grey |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 70 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 300 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Grey |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 70 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 350 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Purple |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 70 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 400 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Purple |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 70 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 450 |
| Type | : | MEGA Fuse |
Specifications
| Dimensions LxWxH (mm) | : | 68,0 ± 0,5 x 19,0 x 10,5 mm |
| Bolt | : | M8 |
| Coding | : | Color-coded |
| Color | : | Dark brown |
| Material 2 | : | Tinned copper alloy |
| Housing Material | : | PPA GF35 |
| Max tightening torque | : | 12 Nm ± 1 Nm |
| Nominal voltage | : | 70 V |
| Standard / specification | : | ISO 20934, RoHS, REACH |
| Current (A) | : | 500 |
| Type | : | MEGA Fuse |
27 versions
| No. | Stock | Kleur | Nom. spanning | Stroomsterkte (A) |
|---|---|---|---|---|
| 9550200 | Blauw | 32 V | 200 | |
| 9550100 | Geel | 32 V | 100 | |
| 9550080 | Rood | 32 V | 80 | |
| 9550250 | Roze | 32 V | 250 | |
| 9550150 | Oranje | 32 V | 150 | |
| 9550125 | Groen | 32 V | 125 | |
| 9550300 | Grijs | 32 V | 300 | |
| 9550400 | Paars | 32 V | 400 | |
| 9550175 | Wit | 32 V | 175 | |
| 9550225 | Lichtbruin | 32 V | 225 | |
| 9550500 | Donkerbruin | 32 V | 500 | |
| 9550040 | Zwart | 32 V | 40 | |
| 9550060 | Zwart | 32 V | 60 | |
| 9550050 | Zwart | 32 V | 50 | |
| 9551200 | Blauw | 70 V | 200 | |
| 9551125 | Groen | 70 V | 125 | |
| 9551300 | Grijs | 70 V | 300 | |
| 9551150 | Oranje | 70 V | 150 | |
| 9551100 | Geel | 70 V | 100 | |
| 9551250 | Roze | 70 V | 250 | |
| 9551080 | Rood | 70 V | 80 | |
| 9551350 | Grijs | 70 V | 350 | |
| 9551400 | Paars | 70 V | 400 | |
| 9551225 | Lichtbruin | 70 V | 225 | |
| 9551175 | Wit | 70 V | 175 | |
| 9551500 | Donkerbruin | 70 V | 500 | |
| 9551450 | Paars | 70 V | 450 |
Related items
A fuse holder specifically designed for MEGA fuses capable of handling currents up to 275 A. Made from PBT, it delivers a robust and secure mounting for heavy
duty electrical applications with stable connections.
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 32 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Related items
A fuse holder specifically designed for MEGA fuses capable of handling currents up to 275 A. Made from PBT, it delivers a robust and secure mounting for heavy
duty electrical applications with stable connections.

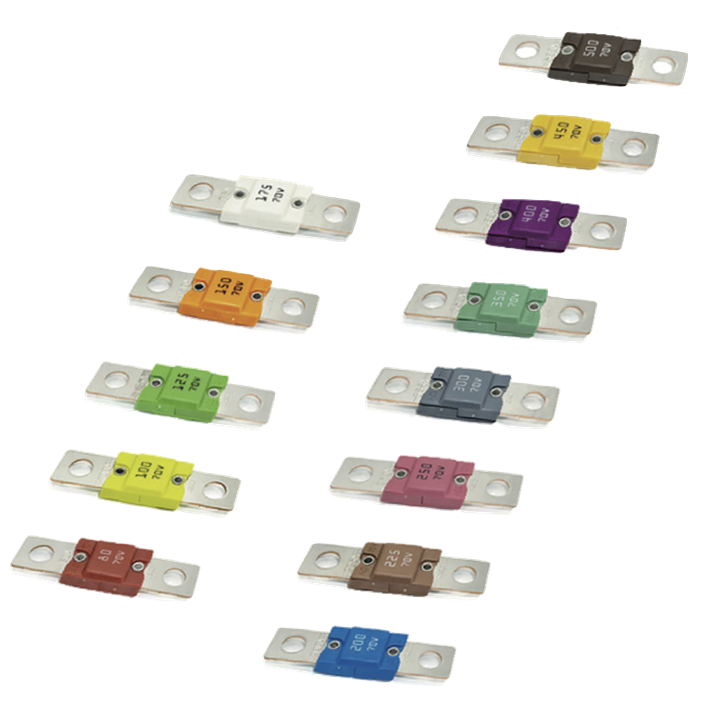

Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Our MEGA fuses provide heavy-duty protection for high-current circuits. Designed for systems at 70 volt, they are available in variants ranging from 40 to 500 ampere, ensuring optimal safety in industrial, automotive and marine installations.
Ask our experts
Our specialists are ready to advise you.
