MAXI fuse
MAXI fuse 100 A purple
Make your choice:
Item number: 63000100
Product information
Our MAXI fuses are rugged and designed for protecting heavy electrical circuits. Featuring a durable PA66 housing and large blade terminals, they are available in variants up to 100 ampere, making them ideal for demanding applications in automotive, industrial and marine sectors.
Product sheet
Generate a product datasheet with the latest product information, including specifications, images, and article details.
Specifications
| Dimensions LxWxH (mm) | : | 29 x 9 x 34 mm |
| Coding | : | Color-coded |
| Color | : | Purple |
| Material 2 | : | Zinc alloy |
| Housing Material | : | PA66 |
| Nominal voltage | : | 32 V |
| Standard / specification | : | SAE J1888, ISO 8820-3, JASO D612, RoHS, |
| Current (A) | : | 100 |
| Type | : | MAXI Fuse |
9
versions
| No. | Stock | Color | Standard / specification | Current (A) |
|---|---|---|---|---|
| 6300020 | Yellow | SAE J1888, ISO 8820-3, JASO D612, RoHS, | 20 | |

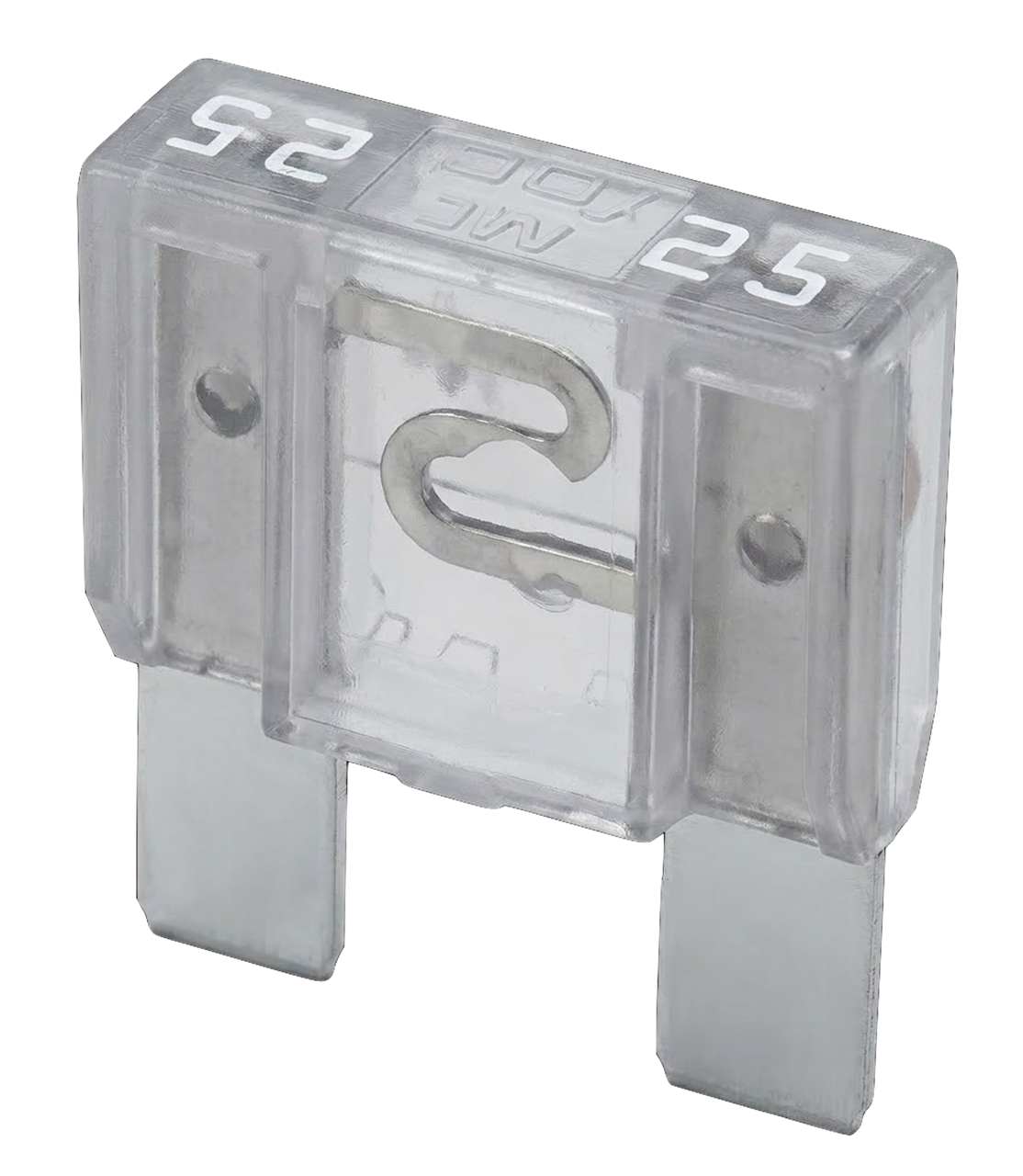

| 6300025 | Grey | SAE J1888, ISO 8820 3, JASO D612, RoHS, | 25 | |
| 6300030 | Green | SAE J1888, ISO 8820-3, JASO D612, RoHS, | 30 | |
| 6300040 | Orange | SAE J1888, ISO 8820-3, JASO D612, RoHS, | 40 | |
| 6300050 | Red | SAE J1888, ISO 8820-3, JASO D612, RoHS, | 50 | |
| 6300060 | Blue | SAE J1888, ISO 8820-3, JASO D612, RoHS, | 60 | |
| 6300070 | Brown | SAE J1888, ISO 8820-3, JASO D612, RoHS, | 70 | |
| 6300080 | White | SAE J1888, ISO 8820-3, JASO D612, RoHS, | 80 | |
| 63000100 | Purple | SAE J1888, ISO 8820-3, JASO D612, RoHS, | 100 |
