ANL Fuse

ANL Fuse 20 A
ANL fuse 35 A
ANL fuse 40 A
ANL fuse 50 A
ANL fuse 63 A
ANL fuse 80 A
ANL fuse 100 A
ANL fuse 125 A
ANL fuse 135 A
ANL fuse 150 A
ANL fuse 160 A
ANL fuse 175 A
ANL fuse 200 A
ANL fuse 225 A
ANL fuse 250 A
ANL fuse 275 A
ANL fuse 300 A
ANL fuse 355 A
ANL fuse 375 A
ANL fuse 400 A
ANL fuse 425 A
ANL fuse 500 A

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

Overdoos = 20 stuks

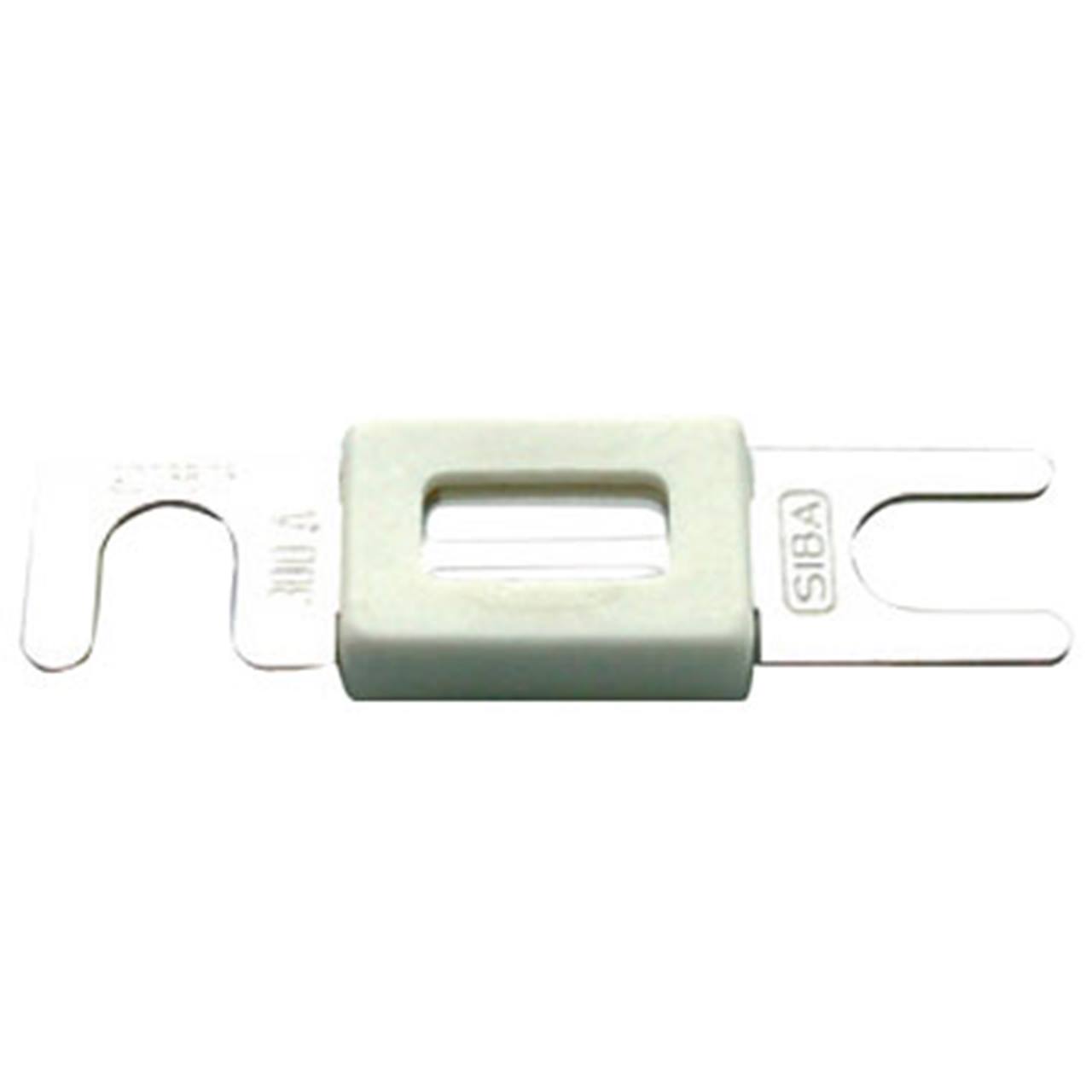

ANL Fuse
ANL Fuse
Make your choice:

Item number: 95805020

Item number: 95805035

Item number: 95805040

Item number: 95805050

Item number: 95805063

Item number: 95805080

Item number: 95805100

Item number: 95805125

Item number: 95805135

Item number: 95805150

Item number: 95805160

Item number: 95805175

Item number: 95805200

Item number: 95805225

Item number: 95805250

Item number: 95805275

Item number: 95805300

Item number: 95805355

Item number: 95805375

Item number: 95805400

Item number: 95805425

Item number: 95805500

Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.
Please log in to view prices and availability.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Product information

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Data sheets

Specifications

Max tightening torque:2 Nm ± 1Nm
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):20
Power loss (W):0.9
Resistance (ohm/meter):2.3

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):35
Type:ANL Fuse
Power loss (W):1.3
Resistance (ohm/meter):1.5

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):40
Type:ANL Fuse
Power loss (W):1.8
Resistance (ohm/meter):0.96

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):50
Type:ANL Fuse
Power loss (W):3.1
Resistance (ohm/meter):0.96

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):63
Type:ANL Fuse
Power loss (W):3.6
Resistance (ohm/meter):0.71

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):80
Type:ANL Fuse
Power loss (W):5
Resistance (ohm/meter):0.57

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):100
Type:ANL Fuse
Power loss (W):6
Resistance (ohm/meter):0.45

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):125
Type:ANL Fuse
Power loss (W):6.7
Resistance (ohm/meter):0.37

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):135
Type:ANL Fuse
Power loss (W):8
Resistance (ohm/meter):0.37

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):150
Type:ANL Fuse
Power loss (W):7.4
Resistance (ohm/meter):0.24

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):160
Type:ANL Fuse
Power loss (W):9.2
Resistance (ohm/meter):0.24

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):175
Type:ANL Fuse
Power loss (W):11
Resistance (ohm/meter):0.24

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):200
Type:ANL Fuse
Power loss (W):11
Resistance (ohm/meter):0.17

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):225
Type:ANL Fuse
Power loss (W):14
Resistance (ohm/meter):0.15

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):250
Type:ANL Fuse
Power loss (W):14
Resistance (ohm/meter):0.14

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):275
Type:ANL Fuse
Power loss (W):16
Resistance (ohm/meter):0.14

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):300
Type:ANL Fuse
Power loss (W):18
Resistance (ohm/meter):0.13

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):355
Type:ANL Fuse
Power loss (W):26
Resistance (ohm/meter):0.1

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):375
Type:ANL Fuse
Power loss (W):37
Resistance (ohm/meter):0.07

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):400
Type:ANL Fuse
Power loss (W):39
Resistance (ohm/meter):0.07

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):425
Type:ANL Fuse
Power loss (W):41
Resistance (ohm/meter):0.07

Specifications

Bolt:M10
Color:Ivory
Material 2:Tinned copper alloy
Housing Material:Ceramic
Nominal voltage:80 V
Standard / specification:DIN 43560 Part 1 (Form A & B), DIN 72581
Current (A):500
Type:ANL Fuse
Resistance (ohm/meter):0.06

22 versions

No.StockTypeBoutKleurMateriaal 2Materiaal behuizingMax. aandraaimomentStroomsterkte (A)Vermogensverlies (W)Weerstand (ohm/meter)
95805100ANL FuseM10IvoryVertinde koperlegeringKeramiek10060.45
95805200ANL FuseM10IvoryVertinde koperlegeringKeramiek200110.17
95805125ANL FuseM10IvoryVertinde koperlegeringKeramiek1256.70.37
95805160ANL FuseM10IvoryVertinde koperlegeringKeramiek1609.20.24
95805050ANL FuseM10IvoryVertinde koperlegeringKeramiek503.10.96
95805063ANL FuseM10IvoryVertinde koperlegeringKeramiek633.60.71
95805080ANL FuseM10IvoryVertinde koperlegeringKeramiek8050.57
95805040ANL FuseM10IvoryVertinde koperlegeringKeramiek401.80.96
95805150ANL FuseM10IvoryVertinde koperlegeringKeramiek1507.40.24
95805035ANL FuseM10IvoryVertinde koperlegeringKeramiek351.31.5
95805225ANL FuseM10IvoryVertinde koperlegeringKeramiek225140.15
95805175ANL FuseM10IvoryVertinde koperlegeringKeramiek175110.24
958050202 Nm ± 1Nm200.92.3
95805135ANL FuseM10IvoryVertinde koperlegeringKeramiek13580.37
95805300ANL FuseM10IvoryVertinde koperlegeringKeramiek300180.13
95805250ANL FuseM10IvoryVertinde koperlegeringKeramiek250140.14
95805500ANL FuseM10IvoryVertinde koperlegeringKeramiek5000.06
95805400ANL FuseM10IvoryVertinde koperlegeringKeramiek400390.07
95805355ANL FuseM10IvoryVertinde koperlegeringKeramiek355260.1
95805425ANL FuseM10IvoryVertinde koperlegeringKeramiek425410.07
95805275ANL FuseM10IvoryVertinde koperlegeringKeramiek275160.14
95805375ANL FuseM10IvoryVertinde koperlegeringKeramiek375370.07

Related items

ANL fuse holder with cover single

An ANL fuse holder for applications up to 250 A, made from PA66 in a stylish blue
black finish. Provides secure fuse mounting with a transparent cover for easy inspection and is connected via stable wiring connections.

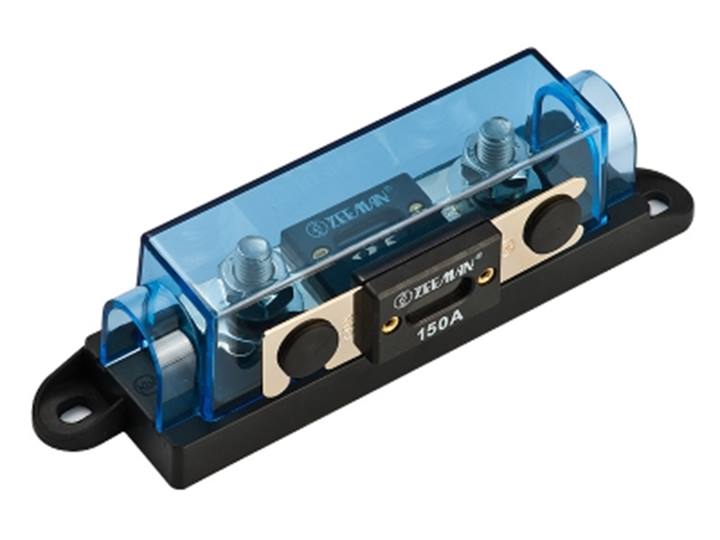

ANL fuse holder with cover single + extra ANL holder

An ANL fuse holder for applications up to 250 A, featuring an integrated spare unit, made from PA66 in a blue
black finish. It provides added assurance with a transparent cover for easy inspection and is connected via stable wiring connections.

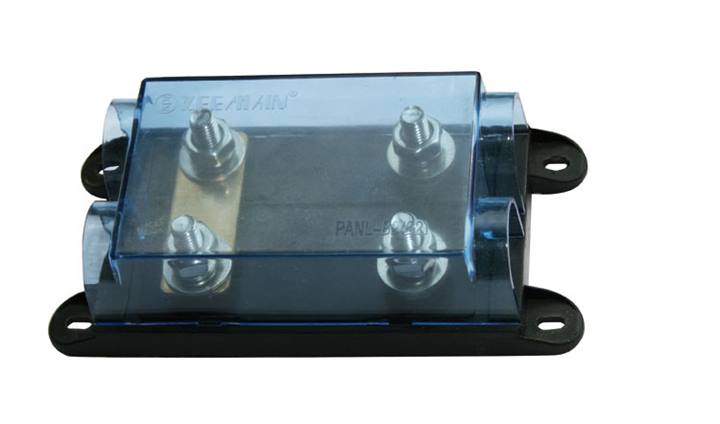

ANL fuse holder with cover 2-way

ANL fuse holder designed for 2 ANL fuses (2 slots), constructed from PA66 in a blue
black finish. Perfect for organized and secure power distribution in electrical systems through fixed wiring connections.

ANL fuse 500 A

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

ANL fuse 355 A

Our ANL fuses are engineered for optimal protection of electrical systems. Featuring a ceramic housing and robust bolt mounting, they are available in variants with current ratings from 35 to 500 ampere. Suitable for automotive, industrial and marine applications.

Ask our experts

Our specialists are ready to advise you.

Phone

Call +31332457886 for telephone support
On working days from 08:30 – 17:00

Email

info@dgrubberholland.nl for (technical) support
On working days from 08:30 – 17:00
DG Rubber Holland
Approval Details

This website uses cookies

We use cookies to personalize content and ads, to provide social media features and to analyze our website traffic. We also share information about your use of our site with our social media, advertising and analytics partners. These partners may combine this data with other information that you have provided to them or that they have collected from your use of their services.

More information about cookies

Necessary
Necessary cookies help make a website more usable by enabling basic functions such as page navigation and access to secure areas of the website. Without these cookies the website cannot function properly.
Preferences
Preference cookies ensure that a website can remember information that influences the behavior and design of the website, such as your preferred language or the region where you live.
Statistics
Statistical cookies help website owners understand how visitors use their website by collecting and reporting data anonymously.
Marketing
Marketing cookies are used to track visitors when they visit different websites. Their goal is to display ads that are tailored and relevant to the individual user. These advertisements thus become more valuable to publishers and third-party advertisers.
