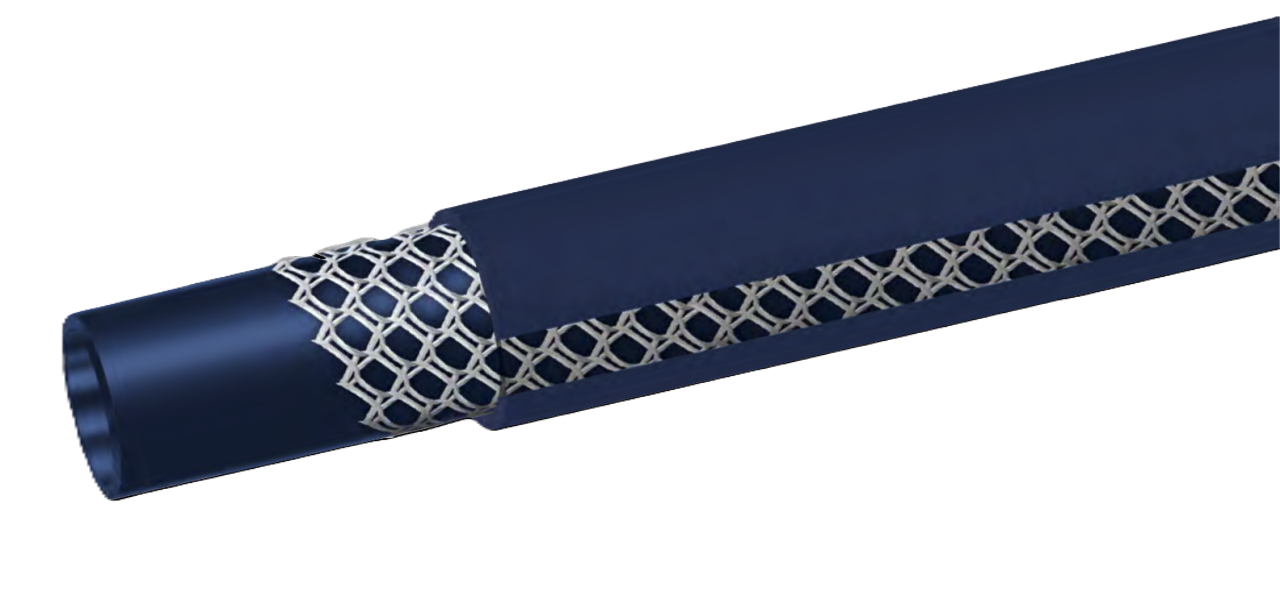

Fitt Pure 1/2" food safe
Fitt Pure 1/2" food safe
Make your choice:
Item number: 4110013
Sales unit: 50 meter
Product information
Material: TPE (Thermoplastic Elastomer), odorless and tasteless
Reinforcement: Double NTS Plus mesh reinforcement for extra strength and kink resistance
Temperature range: -30°C to +70°C
Pressure resistance: Up to 10 bar
Standards: KTW-A, DVGW W270, EU10/2011, EU 1935/2004
Color: Transparent
Application: Transport of drinking water and liquid foodstuffs
Data sheets
Specifications
| Number of Inlays | : | 2 |
| Burst pressure (bar) | : | 30 |
| Inner diameter (mm) | : | 13 |
| Industry, Environment | : | Food Industry, Hospitality |
| Bending diameter (mm) | : | 60 |
| Outer diameter (mm) | : | 18 |
| Reinforced | : | NTS Plus mesh |
| Weight (kg/m) | : | 0.15 |
| ISO | : | KTW-A, DVGW W270 |
| Inner Wall Color | : | Transparent |
| Outer Wall Color | : | Transparent |
| Inner Wall Material | : | TPE (Thermoplastic Elastomer) |
| Outer Wall Material | : | TPE with NTS PLUS mesh |
| Inlay Material | : | Double NTS Plus mesh |
| Max temperature (°C) | : | 70 |
| Min temperature (°C) | : | -30 |
| Working pressure (bar) water | : | 10 |
| Wall thickness (mm) | : | 2.5 |
2 versions
| No. | Stock | Barstdruk (bar) | Binnen diameter (mm) | Buig diameter (mm) | Buiten diameter (mm) | Gewicht (kg/m) | Werkdruk (bar) water |
|---|---|---|---|---|---|---|---|
| 4110013 | 30 | 13 | 60 | 18 | 0.15 | 10 | |
| 4110019 | 24 | 19 | 90 | 24 | 0.25 | 8 |
