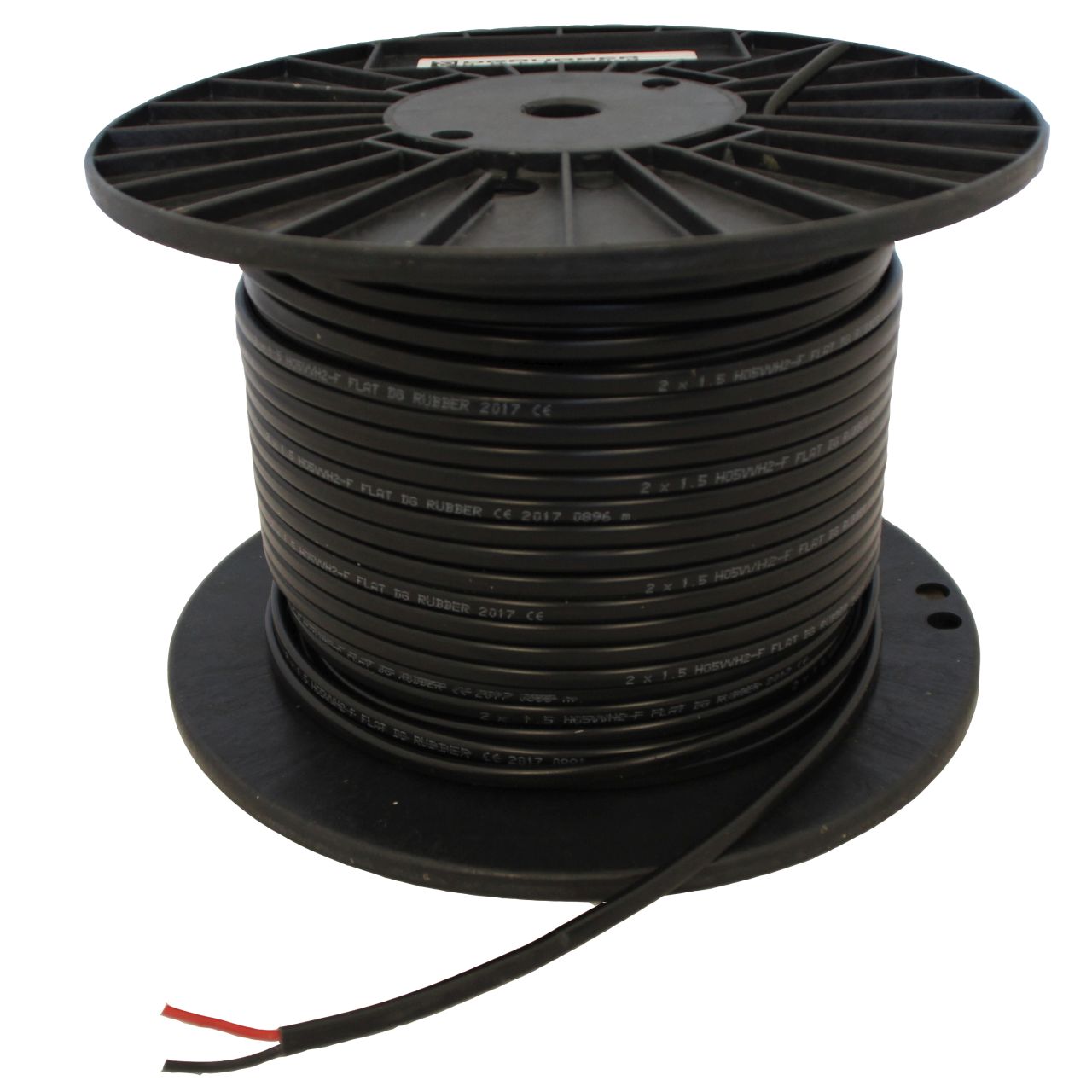

Multicore flat cable
Flat PVC cable with class-5 tinned conductors; flame-retardant, 300/500 V, flexible to 70 °C.
Item number: 33667075
Sales unit: 100 meter
Item number: 33667075L500
Sales unit: 500 meter
Item number: 3366710
Sales unit: 100 meter
Item number: 3366710L500
Sales unit: 500 meter
Item number: 3366715
Sales unit: 100 meter
Item number: 3366715L500
Sales unit: 500 meter
Item number: 3366725
Sales unit: 100 meter
Item number: 3366725L500
Sales unit: 500 meter
Product information
This flat PVC cable is an excellent choice for low-voltage installations where straightforward and tidy routing is required. Featuring two tinned copper conductors (red and black, Class 5), the cable offers high flexibility. The PVC inner and outer sheathing provide solid protection, while compliance with IEC/BS/TS/EN 60228 and IEC/EN/BS/DIN 60332-1-2 ensures reliability and flame-retardant properties. It is rated at 300/500 V with an operating temperature of up to 70°C.
Product information
This flat PVC cable is an excellent choice for low-voltage installations where straightforward and tidy routing is required. Featuring two tinned copper conductors (red and black, Class 5), the cable offers high flexibility. The PVC inner and outer sheathing provide solid protection, while compliance with IEC/BS/TS/EN 60228 and IEC/EN/BS/DIN 60332-1-2 ensures reliability and flame-retardant properties. It is rated at 300/500 V with an operating temperature of up to 70°C.
Product information
This flat PVC cable is an excellent choice for low-voltage installations where straightforward and tidy routing is required. Featuring two tinned copper conductors (red and black, Class 5), the cable offers high flexibility. The PVC inner and outer sheathing provide solid protection, while compliance with IEC/BS/TS/EN 60228 and IEC/EN/BS/DIN 60332-1-2 ensures reliability and flame-retardant properties. It is rated at 300/500 V with an operating temperature of up to 70°C.
Product information
This flat PVC cable is an excellent choice for low-voltage installations where straightforward and tidy routing is required. Featuring two tinned copper conductors (red and black, Class 5), the cable offers high flexibility. The PVC inner and outer sheathing provide solid protection, while compliance with IEC/BS/TS/EN 60228 and IEC/EN/BS/DIN 60332-1-2 ensures reliability and flame-retardant properties. It is rated at 300/500 V with an operating temperature of up to 70°C.
Product information
This flat PVC cable is an excellent choice for low-voltage installations where straightforward and tidy routing is required. Featuring two tinned copper conductors (red and black, Class 5), the cable offers high flexibility. The PVC inner and outer sheathing provide solid protection, while compliance with IEC/BS/TS/EN 60228 and IEC/EN/BS/DIN 60332-1-2 ensures reliability and flame-retardant properties. It is rated at 300/500 V with an operating temperature of up to 70°C.
Product information
This flat PVC cable is an excellent choice for low-voltage installations where straightforward and tidy routing is required. Featuring two tinned copper conductors (red and black, Class 5), the cable offers high flexibility. The PVC inner and outer sheathing provide solid protection, while compliance with IEC/BS/TS/EN 60228 and IEC/EN/BS/DIN 60332-1-2 ensures reliability and flame-retardant properties. It is rated at 300/500 V with an operating temperature of up to 70°C.
Product information
This flat PVC cable is an excellent choice for low-voltage installations where straightforward and tidy routing is required. Featuring two tinned copper conductors (red and black, Class 5), the cable offers high flexibility. The PVC inner and outer sheathing provide solid protection, while compliance with IEC/BS/TS/EN 60228 and IEC/EN/BS/DIN 60332-1-2 ensures reliability and flame-retardant properties. It is rated at 300/500 V with an operating temperature of up to 70°C.
Product information
This flat PVC cable is an excellent choice for low-voltage installations where straightforward and tidy routing is required. Featuring two tinned copper conductors (red and black, Class 5), the cable offers high flexibility. The PVC inner and outer sheathing provide solid protection, while compliance with IEC/BS/TS/EN 60228 and IEC/EN/BS/DIN 60332-1-2 ensures reliability and flame-retardant properties. It is rated at 300/500 V with an operating temperature of up to 70°C.
Specifications
| Number of conductors | : | 2 |
| Amperage (A) | : | 8 |
| Protection | : | PVC |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 3.7 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 54.8 |
| Insulation | : | PVC |
| Cable length | : | 100 |
| Class | : | Class 5 |
| Core Color | : | Red, Black |
| Sheath Color | : | Black |
| Max temperature (°C) | : | 70 |
| Standard / specification | : | IEC/BS/TS/EN 60228 |
| Temperature range | : | 70 |
| Test voltage | : | 2 kV |
| Cable type | : | Flat cable |
| Cable type extra | : | PVC |
| Flame retardant | : | Vlam vertragend |
| Flame spread | : | IEC/EN/BS/DIN 60332-1-2 |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 2 x 0,75 |
Specifications
| Number of conductors | : | 2 |
| Amperage (A) | : | 8 |
| Protection | : | PVC |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 3.7 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 54.8 |
| Insulation | : | PVC |
| Cable length | : | 500 |
| Class | : | Class 5 |
| Core Color | : | Red, Black |
| Sheath Color | : | Black |
| Max temperature (°C) | : | 70 |
| Standard / specification | : | IEC/BS/TS/EN 60228 |
| Temperature range | : | 70 |
| Test voltage | : | 2 kV |
| Cable type | : | Flat cable |
| Cable type extra | : | PVC |
| Flame retardant | : | Vlam vertragend |
| Flame spread | : | IEC/EN/BS/DIN 60332-1-2 |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 2 x 0,75 |
Specifications
| Number of conductors | : | 2 |
| Amperage (A) | : | 10 |
| Protection | : | PVC |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 4.2 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 84.8 |
| Insulation | : | PVC |
| Cable length | : | 100 |
| Class | : | Class 5 |
| Core Color | : | Red, Black |
| Sheath Color | : | Black |
| Max temperature (°C) | : | 70 |
| Standard / specification | : | IEC/BS/TS/EN 60228 |
| Temperature range | : | 70 |
| Test voltage | : | 2 kV |
| Cable type | : | Flat cable |
| Cable type extra | : | PVC |
| Flame retardant | : | Vlam vertragend |
| Flame spread | : | IEC/EN/BS/DIN 60332-1-2 |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 2 x 1 |
Specifications
| Number of conductors | : | 2 |
| Amperage (A) | : | 10 |
| Protection | : | PVC |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 4.2 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 84.8 |
| Insulation | : | PVC |
| Cable length | : | 500 |
| Class | : | Class 5 |
| Core Color | : | Red, Black |
| Sheath Color | : | Black |
| Max temperature (°C) | : | 70 |
| Standard / specification | : | IEC/BS/TS/EN 60228 |
| Temperature range | : | 70 |
| Test voltage | : | 2 kV |
| Cable type | : | Flat cable |
| Cable type extra | : | PVC |
| Flame retardant | : | Vlam vertragend |
| Flame spread | : | IEC/EN/BS/DIN 60332-1-2 |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 2 x 1 |
Specifications
| Number of conductors | : | 2 |
| Amperage (A) | : | 15 |
| Protection | : | PVC |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 4.7 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 107 |
| Insulation | : | PVC |
| Cable length | : | 100 |
| Class | : | Class 5 |
| Core Color | : | Red, Black |
| Sheath Color | : | Black |
| Max temperature (°C) | : | 70 |
| Standard / specification | : | IEC/BS/TS/EN 60228 |
| Temperature range | : | 70 |
| Test voltage | : | 2 kV |
| Cable type | : | Flat cable |
| Cable type extra | : | PVC |
| Flame retardant | : | Vlam vertragend |
| Flame spread | : | IEC/EN/BS/DIN 60332-1-2 |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 2 x 1,5 |
Specifications
| Number of conductors | : | 2 |
| Amperage (A) | : | 15 |
| Protection | : | PVC |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 4.7 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 107 |
| Insulation | : | PVC |
| Cable length | : | 500 |
| Class | : | Class 5 |
| Core Color | : | Red, Black |
| Sheath Color | : | Black |
| Max temperature (°C) | : | 70 |
| Standard / specification | : | IEC/BS/TS/EN 60228 |
| Temperature range | : | 70 |
| Test voltage | : | 2 kV |
| Cable type | : | Flat cable |
| Cable type extra | : | PVC |
| Flame retardant | : | Vlam vertragend |
| Flame spread | : | IEC/EN/BS/DIN 60332-1-2 |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 2 x 1,5 |
Specifications
| Number of conductors | : | 2 |
| Amperage (A) | : | 20 |
| Protection | : | PVC |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 5.2 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 161 |
| Insulation | : | PVC |
| Cable length | : | 100 |
| Class | : | Class 5 |
| Core Color | : | Red, Black |
| Sheath Color | : | Black |
| Max temperature (°C) | : | 70 |
| Standard / specification | : | IEC/BS/TS/EN 60228 |
| Temperature range | : | 70 |
| Test voltage | : | 2 kV |
| Cable type | : | Flat cable |
| Cable type extra | : | PVC |
| Flame retardant | : | Vlam vertragend |
| Flame spread | : | IEC/EN/BS/DIN 60332-1-2 |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 2 x 2,5 |
Specifications
| Number of conductors | : | 2 |
| Amperage (A) | : | 20 |
| Protection | : | PVC |
| Corrosivity Test | : | Yes |
| Diameter in mm | : | 5.2 |
| Conductor | : | Copper |
| Additional Conductor | : | Tinned |
| Weight (kg/km) | : | 161 |
| Insulation | : | PVC |
| Cable length | : | 500 |
| Class | : | Class 5 |
| Core Color | : | Red, Black |
| Sheath Color | : | Black |
| Max temperature (°C) | : | 70 |
| Standard / specification | : | IEC/BS/TS/EN 60228 |
| Temperature range | : | 70 |
| Test voltage | : | 2 kV |
| Cable type | : | Flat cable |
| Cable type extra | : | PVC |
| Flame retardant | : | Vlam vertragend |
| Flame spread | : | IEC/EN/BS/DIN 60332-1-2 |
| Operating voltage | : | 300 / 500 V |
| Wiring size in mm² | : | 2 x 2,5 |
8 versions
| No. | Stock | Bekabeling maat in mm² | Amperage (A) | Diameter in mm | Gewicht (KG/KM) | Kabellengte |
|---|---|---|---|---|---|---|
| 33667075 | 2 x 0,75 | 8 | 3.7 | 54.8 | 100 | |
| 33667075L500 | 2 x 0,75 | 8 | 3.7 | 54.8 | 500 | |
| 3366710 | 2 x 1 | 10 | 4.2 | 84.8 | 100 | |
| 3366710L500 | 2 x 1 | 10 | 4.2 | 84.8 | 500 | |
| 3366715 | 2 x 1,5 | 15 | 4.7 | 107 | 100 | |
| 3366715L500 | 2 x 1,5 | 15 | 4.7 | 107 | 500 | |
| 3366725 | 2 x 2,5 | 20 | 5.2 | 161 | 100 | |
| 3366725L500 | 2 x 2,5 | 20 | 5.2 | 161 | 500 |
