BALL VALVE (CR) 2x Fem. thread
Item number: 5243010
Item number: 5243013
Item number: 5243019
Item number: 5243025
Item number: 5243032
Item number: 5243038
Item number: 5243050
Product information
The CR ball valve with 2x female thread is a robust and reliable shut-off valve suitable for use in industrial and building services systems. Made from high-quality brass and dezincification-resistant CR brass, it offers excellent resistance to wear, corrosion, and high temperatures up to 200 °C.
Product information
The CR ball valve with 2x female thread is a robust and reliable shut-off valve suitable for use in industrial and building services systems. Made from high-quality brass and dezincification-resistant CR brass, it offers excellent resistance to wear, corrosion, and high temperatures up to 200 °C.
Product information
The CR ball valve with 2x female thread is a robust and reliable shut-off valve suitable for use in industrial and building services systems. Made from high-quality brass and dezincification-resistant CR brass, it offers excellent resistance to wear, corrosion, and high temperatures up to 200 °C.
Product information
The CR ball valve with 2x female thread is a robust and reliable shut-off valve suitable for use in industrial and building services systems. Made from high-quality brass and dezincification-resistant CR brass, it offers excellent resistance to wear, corrosion, and high temperatures up to 200 °C.
Product information
The CR ball valve with 2x female thread is a robust and reliable shut-off valve suitable for use in industrial and building services systems. Made from high-quality brass and dezincification-resistant CR brass, it offers excellent resistance to wear, corrosion, and high temperatures up to 200 °C.
Product information
The CR ball valve with 2x female thread is a robust and reliable shut-off valve suitable for use in industrial and building services systems. Made from high-quality brass and dezincification-resistant CR brass, it offers excellent resistance to wear, corrosion, and high temperatures up to 200 °C.
Product information
The CR ball valve with 2x female thread is a robust and reliable shut-off valve suitable for use in industrial and building services systems. Made from high-quality brass and dezincification-resistant CR brass, it offers excellent resistance to wear, corrosion, and high temperatures up to 200 °C.
Data sheets
Specifications
| Torque (Nm) | : | 10 |
| Size 1 | : | 3/8" |
| Size 2 | : | 3/8" |
| Material | : | Dezincification-resistant CR brass |
| Max pressure temperature PN16 | : | (-10 ºC - 100 ºC) = 16 | (120 ºC) = 13.5 | (150 ºC) = 9.5 | (170 |
| Standard / specification | : | EN10226, ISO228, ANSI/ASME B1.20.1 |
| Maintenance | : | No additional maintenance required |
| PN nominal pressure | : | 40 |
| Reference standard | : | EN 10226, ISO 228, ANSI/ASME B1.20.1 |
| Temperature range | : | -10°C - 200°C |
| Test standard Torque | : | 150% of permitted test pressure PEA EN 805 |
| Fitting type | : | Ball valve |
Specifications
| Torque (Nm) | : | 12 |
| Size 1 | : | 1/2" |
| Size 2 | : | 1/2" |
| Material | : | Dezincification-resistant CR brass |
| Max pressure temperature PN16 | : | (-10 ºC - 100 ºC) = 16 | (120 ºC) = 13.5 | (150 ºC) = 9.5 | (170 |
| Standard / specification | : | EN10226, ISO228, ANSI/ASME B1.20.1 |
| Maintenance | : | No additional maintenance required |
| PN nominal pressure | : | 40 |
| Reference standard | : | EN 10226, ISO 228, ANSI/ASME B1.20.1 |
| Temperature range | : | -10°C - 200°C |
| Test standard Torque | : | 150% of permitted test pressure PEA EN 805 |
| Fitting type | : | Ball valve |
Specifications
| Torque (Nm) | : | 16 |
| Size 1 | : | 3/4" |
| Size 2 | : | 3/4" |
| Material | : | Dezincification-resistant CR brass |
| Max pressure temperature PN16 | : | (-10 ºC - 100 ºC) = 16 | (120 ºC) = 13.5 | (150 ºC) = 9.5 | (170 |
| Standard / specification | : | EN10226, ISO228, ANSI/ASME B1.20.1 |
| Maintenance | : | No additional maintenance required |
| PN nominal pressure | : | 40 |
| Reference standard | : | EN 10226, ISO 228, ANSI/ASME B1.20.1 |
| Temperature range | : | -10°C - 200°C |
| Test standard Torque | : | 150% of permitted test pressure PEA EN 805 |
| Fitting type | : | Ball valve |
Specifications
| Torque (Nm) | : | 16 |
| Size 1 | : | 1" |
| Size 2 | : | 1" |
| Material | : | Dezincification-resistant CR brass |
| Max pressure temperature PN16 | : | (-10 ºC - 100 ºC) = 16 | (120 ºC) = 13.5 | (150 ºC) = 9.5 | (170 |
| Standard / specification | : | EN10226, ISO228, ANSI/ASME B1.20.1 |
| Maintenance | : | No additional maintenance required |
| PN nominal pressure | : | 40 |
| Reference standard | : | EN 10226, ISO 228, ANSI/ASME B1.20.1 |
| Temperature range | : | -10°C - 200°C |
| Test standard Torque | : | 150% of permitted test pressure PEA EN 805 |
| Fitting type | : | Ball valve |
Specifications
| Torque (Nm) | : | 16 |
| Size 1 | : | 1"1/4 |
| Size 2 | : | 1"1/4 |
| Material | : | Dezincification-resistant CR brass |
| Max pressure temperature PN16 | : | (-10 ºC - 100 ºC) = 16 | (120 ºC) = 13.5 | (150 ºC) = 9.5 | (170 |
| Standard / specification | : | EN10226, ISO228, ANSI/ASME B1.20.1 |
| Maintenance | : | No additional maintenance required |
| PN nominal pressure | : | 25 |
| Reference standard | : | EN 10226, ISO 228, ANSI/ASME B1.20.1 |
| Temperature range | : | -10°C - 200°C |
| Test standard Torque | : | 150% of permitted test pressure PEA EN 805 |
| Fitting type | : | Ball valve |
Specifications
| Torque (Nm) | : | 20 |
| Size 1 | : | 1"1/2 |
| Size 2 | : | 1"1/2 |
| Material | : | Dezincification-resistant CR brass |
| Max pressure temperature PN16 | : | (-10 ºC - 100 ºC) = 16 | (120 ºC) = 13.5 | (150 ºC) = 9.5 | (170 |
| Standard / specification | : | EN10226, ISO228, ANSI/ASME B1.20.1 |
| Maintenance | : | No additional maintenance required |
| PN nominal pressure | : | 25 |
| Reference standard | : | EN 10226, ISO 228, ANSI/ASME B1.20.1 |
| Temperature range | : | -10°C - 200°C |
| Test standard Torque | : | 150% of permitted test pressure PEA EN 805 |
| Fitting type | : | Ball valve |
Specifications
| Torque (Nm) | : | 20 |
| Size 1 | : | 2" |
| Size 2 | : | 2" |
| Material | : | Dezincification-resistant CR brass |
| Max pressure temperature PN16 | : | (-10 ºC - 100 ºC) = 16 | (120 ºC) = 13.5 | (150 ºC) = 9.5 | (170 |
| Standard / specification | : | EN10226, ISO228, ANSI/ASME B1.20.1 |
| Maintenance | : | No additional maintenance required |
| PN nominal pressure | : | 25 |
| Reference standard | : | EN 10226, ISO 228, ANSI/ASME B1.20.1 |
| Temperature range | : | -10°C - 200°C |
| Test standard Torque | : | 150% of permitted test pressure PEA EN 805 |
| Fitting type | : | Ball valve |
7 versions
| No. | Stock | Draaimoment (Nm) | Maat 1 | Maat 2 | PN nominal druk |
|---|---|---|---|---|---|
| 5243010 | 10 | 3/8" | 3/8" | 40 | |
| 5243013 | 12 | 1/2" | 1/2" | 40 | |
| 5243019 | 16 | 3/4" | 3/4" | 40 | |
| 5243025 | 16 | 1" | 1" | 40 | |
| 5243032 | 16 | 1"1/4 | 1"1/4 | 25 | |
| 5243038 | 20 | 1"1/2 | 1"1/2 | 25 | |
| 5243050 | 20 | 2" | 2" | 25 |
Related items
Absolute nummer 1 onder de afdichtingen: gas-, water-, lucht- en zware chemische stoffen dicht.
Zeer snelle montage en afdichting van pijpverbindingen. Aanbevolen voor alle voorkomende grove draad. Hardt in tegenstelling tot 570 ook snel uit bij lage temperaturen, zoals bij onderhoud in de buitenlucht. Volledige uitharding na 24 uur en al een bruikbare uitharding na 2 uur.
Hoge weerstand tegen industriële vloeistoffen en gassen. - snelle uitharding - temperatuurbereik -55 ºC - 150 ºC - kleur wit
The CR ball valve with 2x female thread is a robust and reliable shut-off valve suitable for use in industrial and building services systems. Made from high-quality brass and dezincification-resistant CR brass, it offers excellent resistance to wear, corrosion, and high temperatures up to 200 °C.

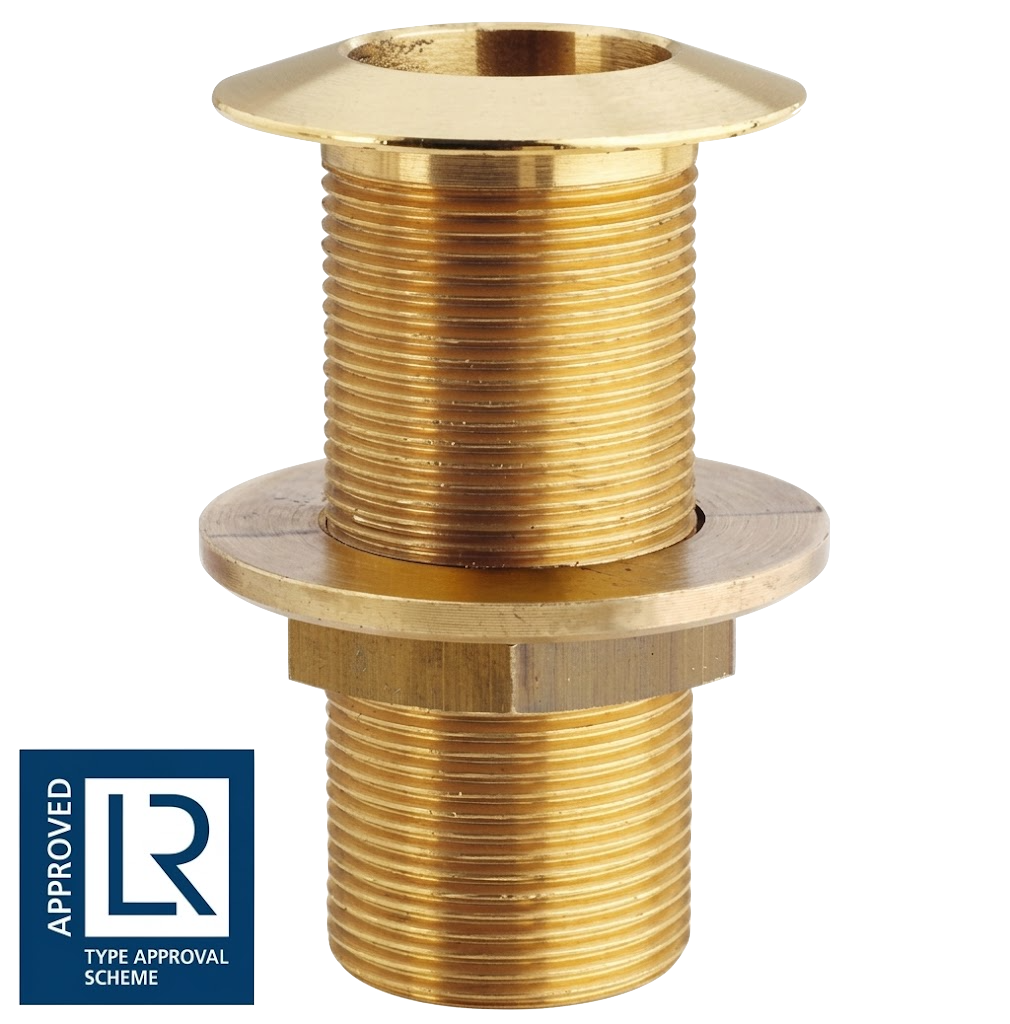

This CR brass thru-hull fitting is made from dezincification-resistant brass (EN 1982) and is specifically designed for maritime applications. It offers excellent corrosion resistance, even in saltwater environments.
