ATO fuse holder loop-through

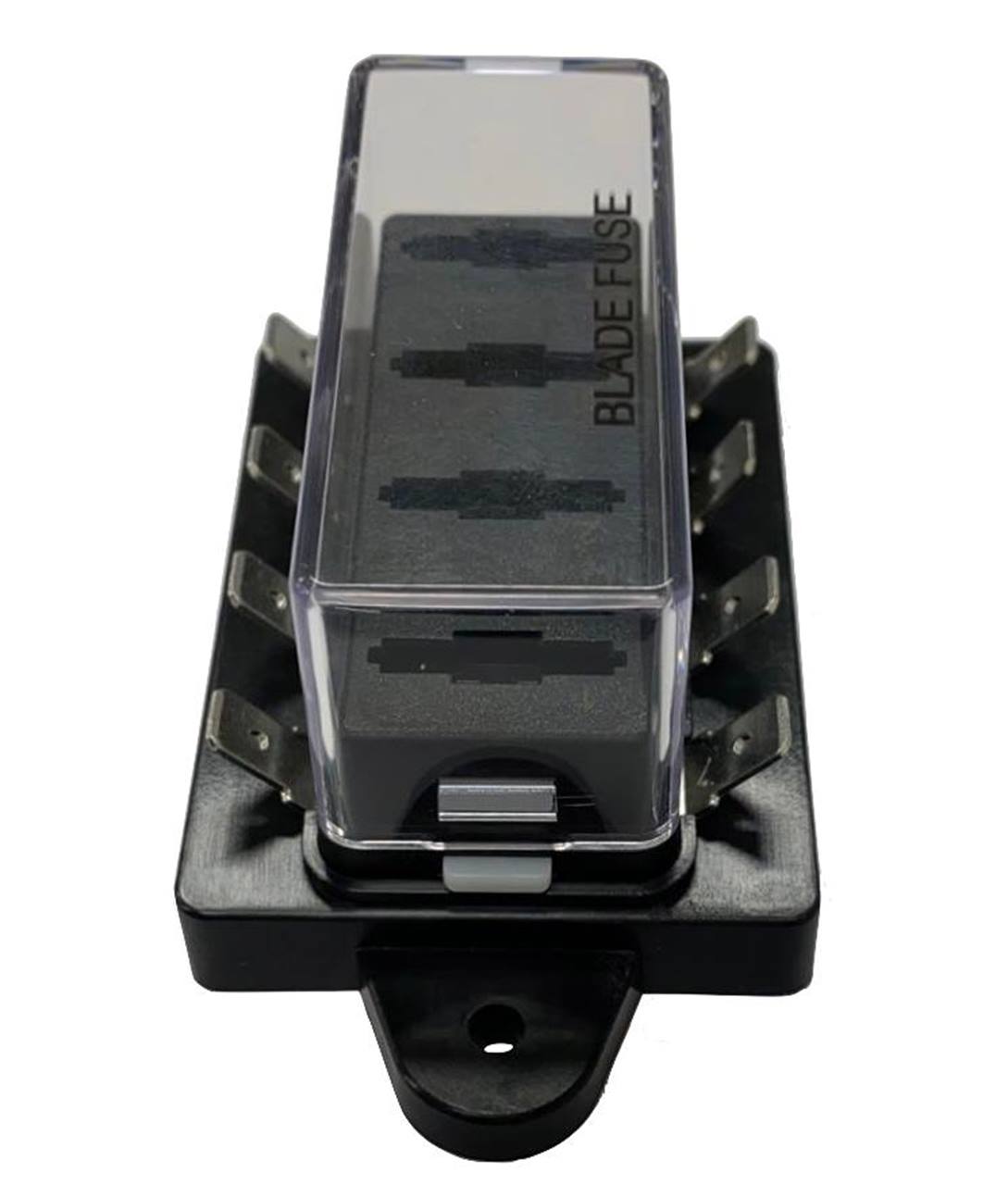

ATO fuse holder loop-through 4-way
Make your choice:
Item number: 4213004
Product information
An ATO holder with pass
through functionality and LED for 4 fuse connections, ideal for streamlined power distribution in centralized applications. Features reliable wiring connections for enhanced safety.
Data sheets
Specifications
| Connection input mm² | : | <25 |
| Connection output mm² | : | <6 |
| Number of slots | : | 4 |
| Dimensions LxWxH (mm) | : | 70,4 x 52,2 x 40,5 |
| Additional Info 1 | : | Transparent cap |
| Color | : | Black |
| LED indication | : | LED-indicatie |
| Material | : | PBT / PC |
| Max A input | : | 100 |
| Max A per circuit | : | 30 |
| Max voltage (V) | : | 32 V |
| Dust- / water-resistant cover | : | Stof- / waterbestendige kap |
| Additional information | : | Transparent cap |
3 versions
| No. | Stock | Aantal slots | Afmetingen LxBxH (mm) |
|---|---|---|---|
| 4213004 | 4 | 70,4 x 52,2 x 40,5 | |

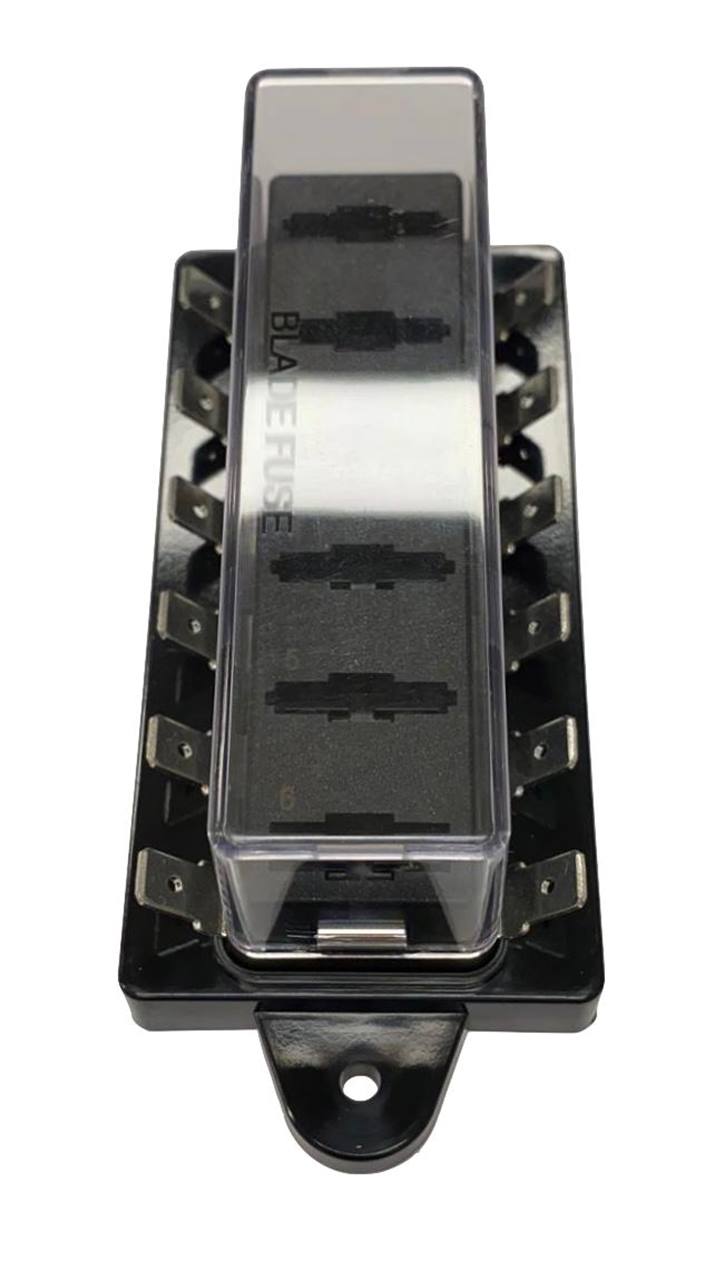

| 4213006 | 6 | 102,4 x 52,2 x 40,5 | |

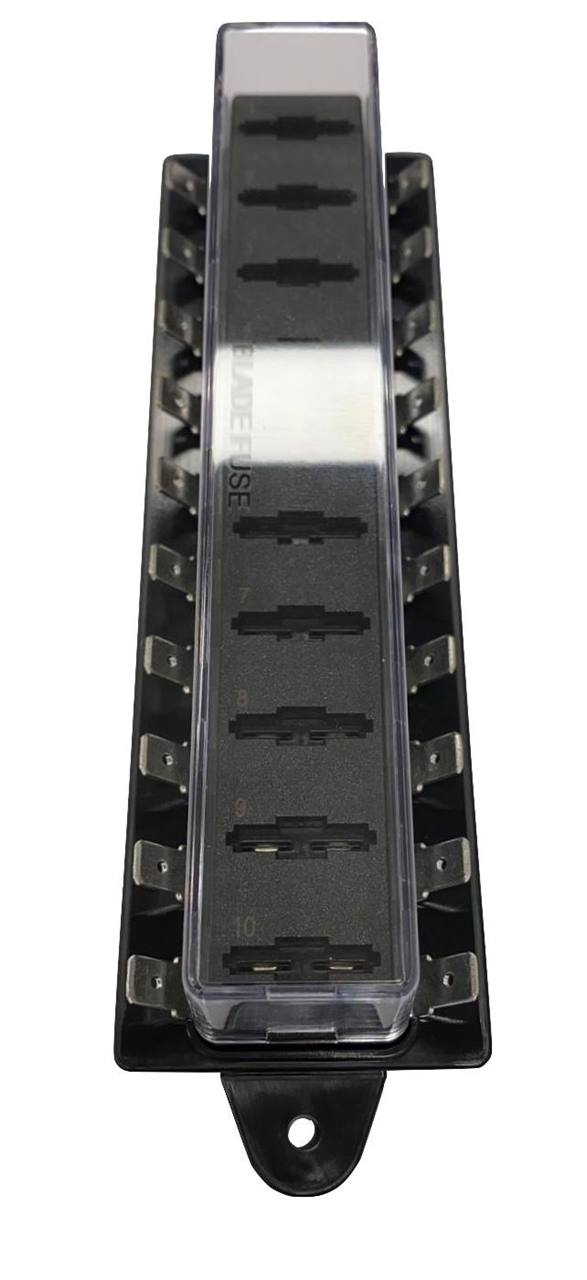

| 4213010 | 10 | 166,4 x 52,2 x 40,5 |
