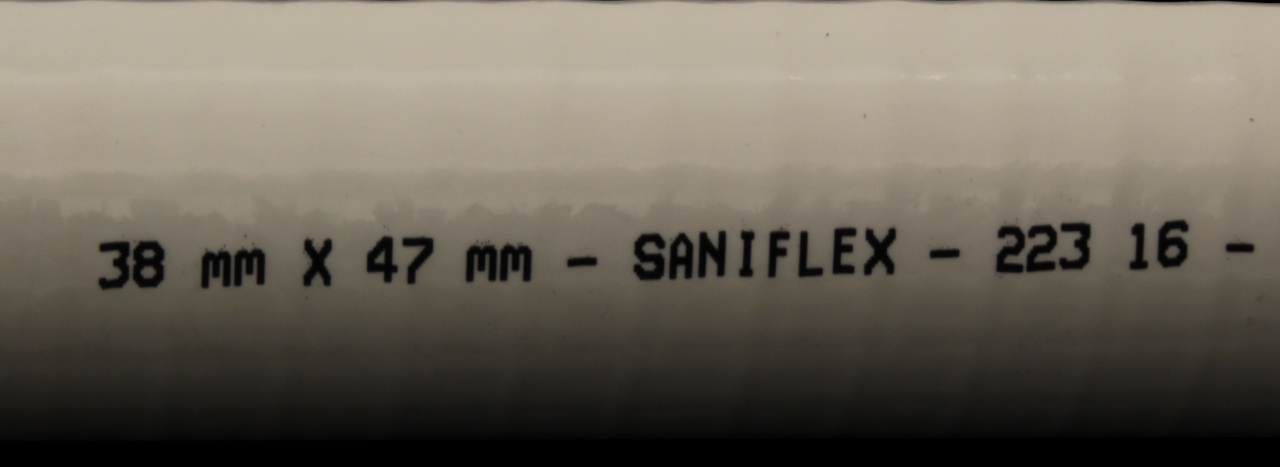

Saniflex
Sanitaire slang met stalen spiraal voor vuilwaterafvoer aan boord of in mobiele toepassingen.


Item number: 4490016
Sales unit: 30 meter
Item number: 4490020
Sales unit: 30 meter
Item number: 4490025
Sales unit: 30 meter
Item number: 4490032
Sales unit: 30 meter
Item number: 4490038
Sales unit: 30 meter
Product information
- Strong and flexible PVC construction with steel spiral.
- Suitable for sanitary use – Applicable in marine and automotive sectors.
- Temperature resistance from -10°C to +60°C.
- Lightweight and durable.
Product information
- Strong and flexible PVC construction with steel spiral.
- Suitable for sanitary use – Applicable in marine and automotive sectors.
- Temperature resistance from -10°C to +60°C.
- Lightweight and durable.
Product information
- Strong and flexible PVC construction with steel spiral.
- Suitable for sanitary use – Applicable in marine and automotive sectors.
- Temperature resistance from -10°C to +60°C.
- Lightweight and durable.
Product information
- Strong and flexible PVC construction with steel spiral.
- Suitable for sanitary use – Applicable in marine and automotive sectors.
- Temperature resistance from -10°C to +60°C.
- Lightweight and durable.
Product information
- Strong and flexible PVC construction with steel spiral.
- Suitable for sanitary use – Applicable in marine and automotive sectors.
- Temperature resistance from -10°C to +60°C.
- Lightweight and durable.
Specifications
| Number of Inlays | : | Steel Spiral |
| Inner diameter (mm) | : | 16 |
| Industry, Environment | : | Watersports, Automotive |
| Bending diameter (mm) | : | 70 |
| Outer diameter (mm) | : | 22.4 |
| Warranty | : | No odor-proof warranty |
| Reinforced | : | Yes |
| Weight (kg/m) | : | 0.27 |
| Inner Wall Color | : | White |
| Outer Wall Color | : | White |
| Inner Wall Material | : | PVC |
| Outer Wall Material | : | PVC |
| Inlay Material | : | Metal |
| Max temperature (°C) | : | 60 |
| Min temperature (°C) | : | -10 |
| Vacuum (bar) | : | 0.95 |
| Working pressure (bar) water | : | 25 |
| Wall thickness (mm) | : | 5 |
Specifications
| Number of Inlays | : | Steel Spiral |
| Inner diameter (mm) | : | 20 |
| Industry, Environment | : | Watersports, Automotive |
| Bending diameter (mm) | : | 90 |
| Outer diameter (mm) | : | 27 |
| Warranty | : | No odor-proof warranty |
| Reinforced | : | Yes |
| Weight (kg/m) | : | 0.35 |
| Inner Wall Color | : | White |
| Outer Wall Color | : | White |
| Inner Wall Material | : | PVC |
| Outer Wall Material | : | PVC |
| Inlay Material | : | Metal |
| Max temperature (°C) | : | 60 |
| Min temperature (°C) | : | -10 |
| Vacuum (bar) | : | 0.95 |
| Working pressure (bar) water | : | 25 |
| Wall thickness (mm) | : | 5 |
Specifications
| Number of Inlays | : | Steel Spiral |
| Inner diameter (mm) | : | 25 |
| Industry, Environment | : | Watersports, Automotive |
| Bending diameter (mm) | : | 110 |
| Outer diameter (mm) | : | 33 |
| Warranty | : | No odor-proof warranty |
| Reinforced | : | Yes |
| Weight (kg/m) | : | 0.5 |
| Inner Wall Color | : | White |
| Outer Wall Color | : | White |
| Inner Wall Material | : | PVC |
| Outer Wall Material | : | PVC |
| Inlay Material | : | Metal |
| Max temperature (°C) | : | 60 |
| Min temperature (°C) | : | -10 |
| Vacuum (bar) | : | 0.95 |
| Working pressure (bar) water | : | 20 |
| Wall thickness (mm) | : | 4 |
Specifications
| Number of Inlays | : | Steel Spiral |
| Inner diameter (mm) | : | 32 |
| Industry, Environment | : | Watersports, Automotive |
| Bending diameter (mm) | : | 140 |
| Outer diameter (mm) | : | 40 |
| Warranty | : | No odor-proof warranty |
| Reinforced | : | Yes |
| Weight (kg/m) | : | 0.645 |
| Inner Wall Color | : | White |
| Outer Wall Color | : | White |
| Inner Wall Material | : | PVC |
| Outer Wall Material | : | PVC |
| Inlay Material | : | Metal |
| Max temperature (°C) | : | 60 |
| Min temperature (°C) | : | -10 |
| Vacuum (bar) | : | 0.85 |
| Working pressure (bar) water | : | 20 |
| Wall thickness (mm) | : | 4 |
Specifications
| Number of Inlays | : | Steel Spiral |
| Inner diameter (mm) | : | 38 |
| Industry, Environment | : | Watersports, Automotive |
| Bending diameter (mm) | : | 170 |
| Outer diameter (mm) | : | 47 |
| Warranty | : | No odor-proof warranty |
| Reinforced | : | Yes |
| Weight (kg/m) | : | 0.795 |
| Inner Wall Color | : | White |
| Outer Wall Color | : | White |
| Inner Wall Material | : | PVC |
| Outer Wall Material | : | PVC |
| Inlay Material | : | Metal |
| Max temperature (°C) | : | 60 |
| Min temperature (°C) | : | -10 |
| Vacuum (bar) | : | 0.85 |
| Working pressure (bar) water | : | 20 |
| Wall thickness (mm) | : | 4 |
5 versions
| No. | Stock | Binnen diameter (mm) | Buig diameter (mm) | Buiten diameter (mm) | Gewicht (kg/m) | Vacuum (bar) | Wand dikte (mm) | Werkdruk (bar) water |
|---|---|---|---|---|---|---|---|---|
| 4490016 | 16 | 70 | 22.4 | 0.27 | 0.95 | 5 | 25 | |
| 4490020 | 20 | 90 | 27 | 0.35 | 0.95 | 5 | 25 | |
| 4490025 | 25 | 110 | 33 | 0.5 | 0.95 | 4 | 20 | |
| 4490032 | 32 | 140 | 40 | 0.645 | 0.85 | 4 | 20 | |
| 4490038 | 38 | 170 | 47 | 0.795 | 0.85 | 4 | 20 |
