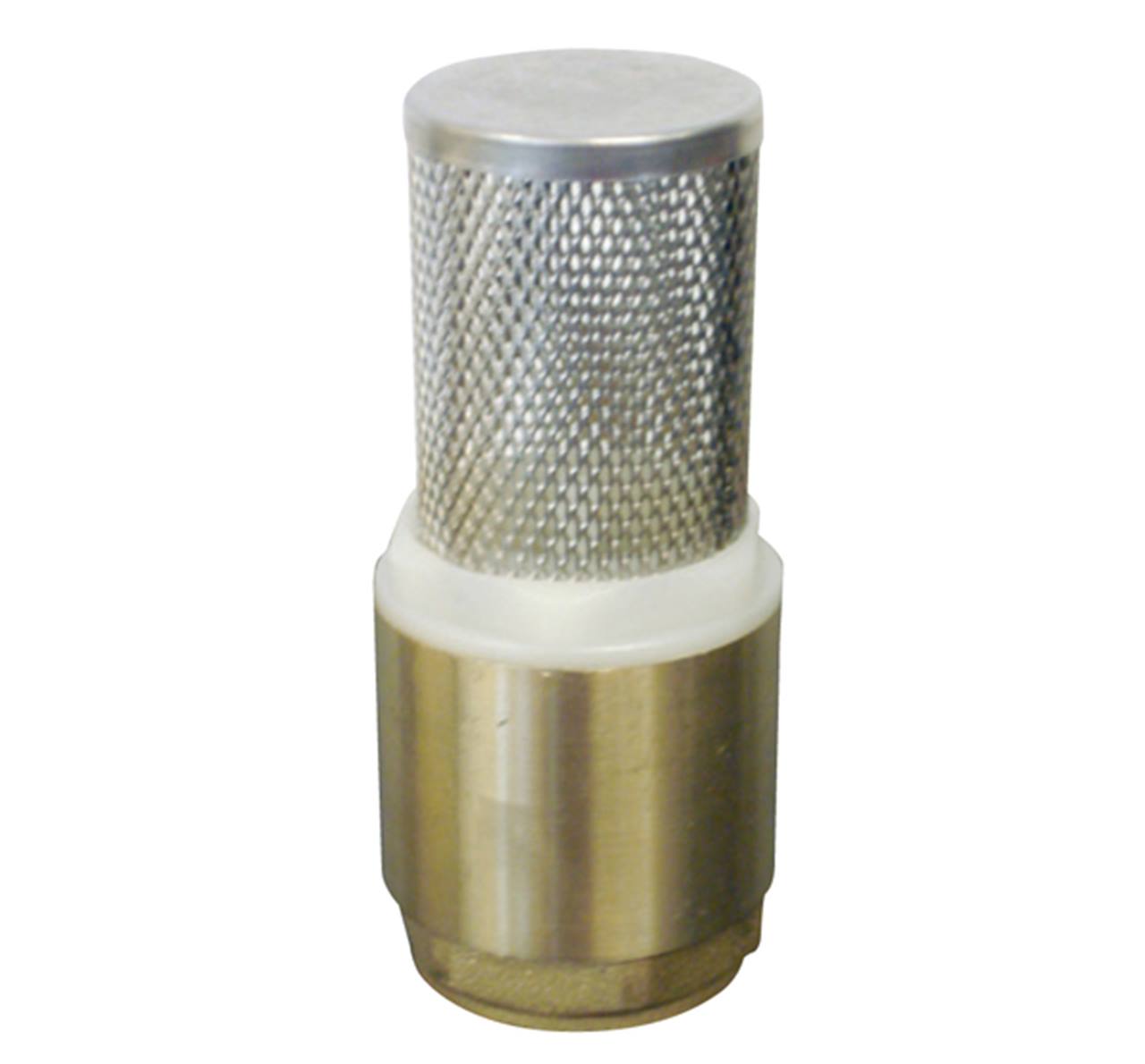

Spring-loaded Foot Valve
Spring-loaded foot valve 13 mm
Make your choice:
Item number: 5225013
Product information
The brass spring-loaded foot valve PN 10 is designed for reliable backflow prevention in pump systems. Equipped with a strainer and a stainless steel 604 (V2A) spring, this foot valve ensures efficient water flow and prevents reverse flow, optimizing system performance and durability.
Data sheets
Specifications
| Size 1 | : | 13 mm |
| Size 2 | : | 13 mm |
| Material | : | Brass, stainless steel spring (V2A) |
| Standard / specification | : | EN10226, ISO228, ANSI/ASME B1.20.1 |
| Maintenance | : | No additional maintenance required |
| PN nominal pressure | : | 10 |
| Reference standard | : | EN 10226, ISO 228, ANSI/ASME B1.20.1 |
| Temperature range | : | -10°C - 110°C |
| Fitting type | : | Spring-loaded foot valve |
6 versions
| No. | Stock | Maat 1 | Maat 2 |
|---|---|---|---|
| 5225013 | 13 mm | 13 mm | |
| 5225019 | 19 mm | 19 mm | |
| 5225025 | 25 mm | 25 mm | |
| 5225032 | 32 mm | 32 mm | |
| 5225038 | 38 mm | 38 mm | |
| 5225050 | 50 mm | 50 mm |
