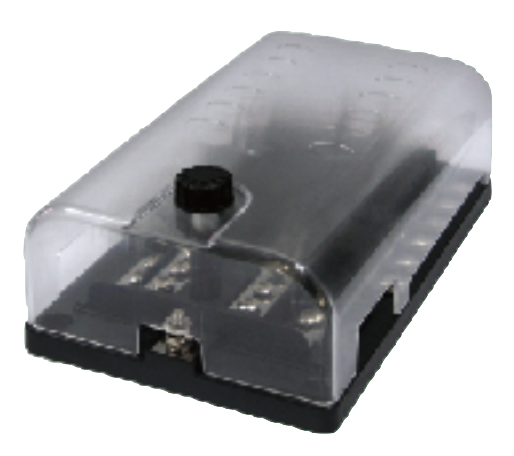

Fuse holder with hose connection / LED
Fuse holder 6-pole with hose connection / LED
Make your choice:
Item number: 4212006
Product information
An ATO holder with cover and LED featuring an M4 screw connection for 6 fuse connections. Ideal for installations with dual supply needs, ensuring a stable and secure connection.
Data sheets
Specifications
| Connection input mm² | : | <25 |
| Connection output mm² | : | <6 |
| Number of slots | : | 6 |
| Dimensions LxWxH (mm) | : | 121 x 62,5 x 40,5 |
| Busbar | : | Busbar |
| Central Feed | : | Double |
| Central negative | : | Central negative |
| Additional Info 1 | : | Transparent cap |
| Color | : | Black |
| LED indication | : | LED-indicatie |
| Material | : | PBT / PC |
| Max A input | : | 100 |
| Max A per circuit | : | 30 |
| Max voltage (V) | : | 32 V |
| Dust- / water-resistant cover | : | Stof- / waterbestendige kap |
| Additional information | : | Transparent cap |
2 versions
| No. | Stock | Aantal slots | Afmetingen LxBxH (mm) |
|---|---|---|---|
| 4212006 | 6 | 121 x 62,5 x 40,5 | |
| 4212012 | 12 | 185 x 62,5 x 40,5 |
