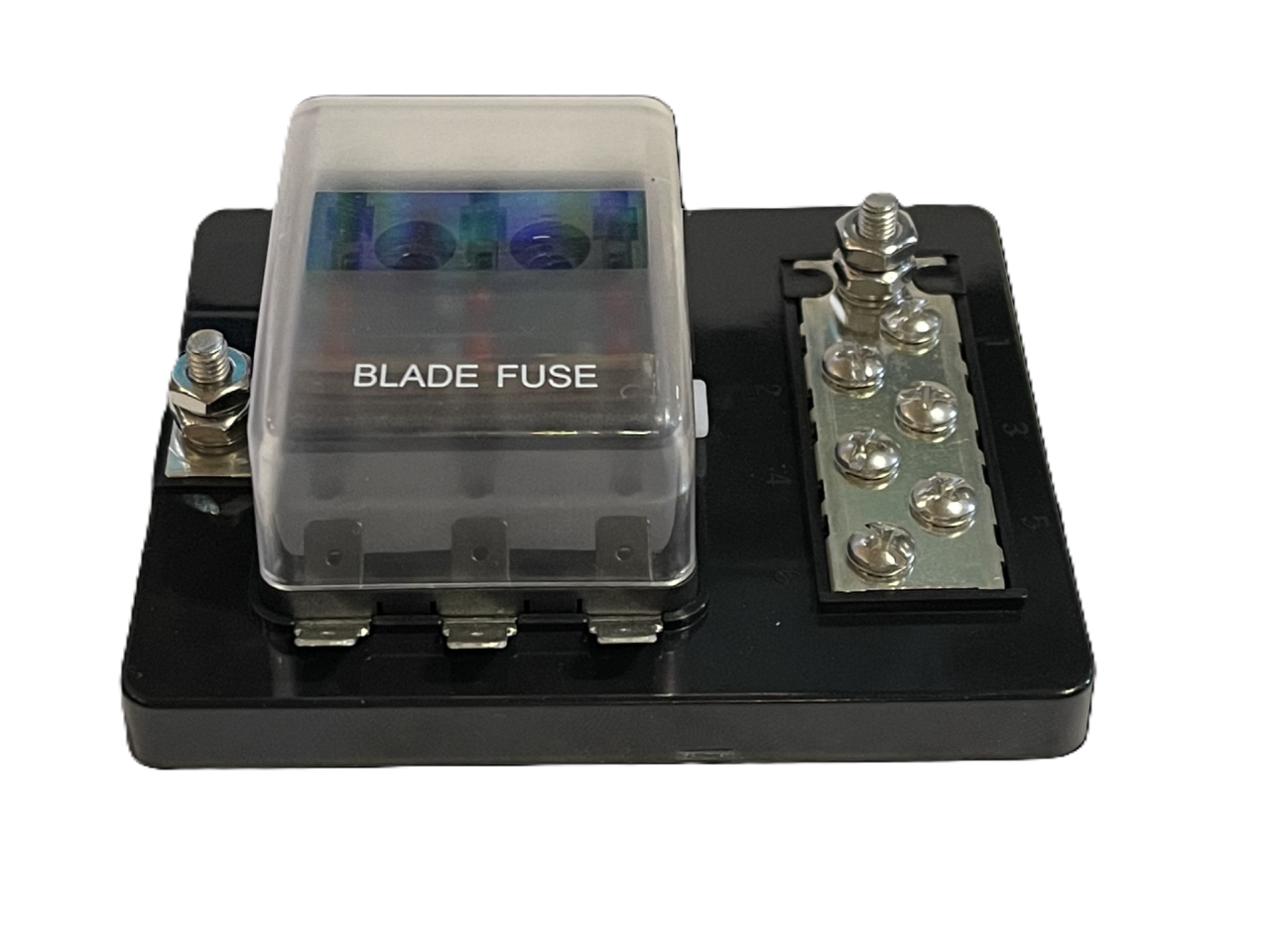

Fuse holder with LED, with - busbar
Fuse holder with LED 6-way, with - busbar
Make your choice:
Item number: 42023006
Product information
An ATO holder with LED designed for busbar applications featuring 6 fuse connections. It delivers a modern and secure centralized power supply using fixed wiring connections.
Data sheets
Specifications
| Connection input mm² | : | <25 |
| Connection output mm² | : | <6 |
| Number of slots | : | 6 |
| Dimensions LxWxH (mm) | : | 106,3 x 88,3 x 40,5 |
| Busbar | : | Busbar |
| Central Feed | : | Single |
| Central negative | : | Central negative |
| Additional Info 1 | : | Transparent cap |
| Color | : | Black |
| LED indication | : | LED-indicatie |
| Material | : | PBT / PC |
| Max A input | : | 100 |
| Max A per circuit | : | 30 |
| Max voltage (V) | : | 32 V |
| Dust- / water-resistant cover | : | Stof- / waterbestendige kap |
| Additional information | : | Transparent cap |
2 versions
| No. | Stock | Aantal slots | Afmetingen LxBxH (mm) |
|---|---|---|---|
| 42023006 | 6 | 106,3 x 88,3 x 40,5 | |

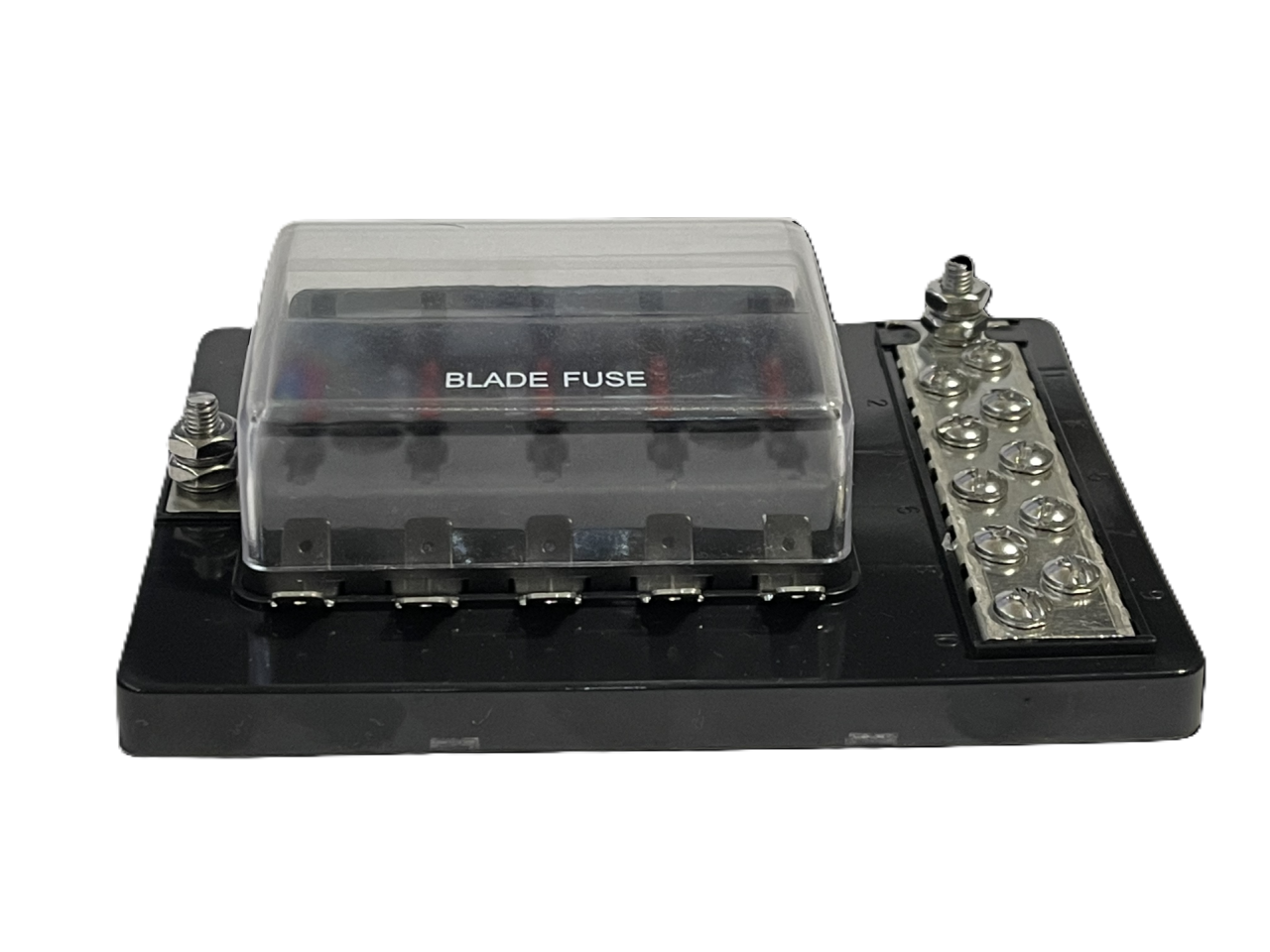

| 42023010 | 10 | 138,3 x 103,3 x 40,5 |
