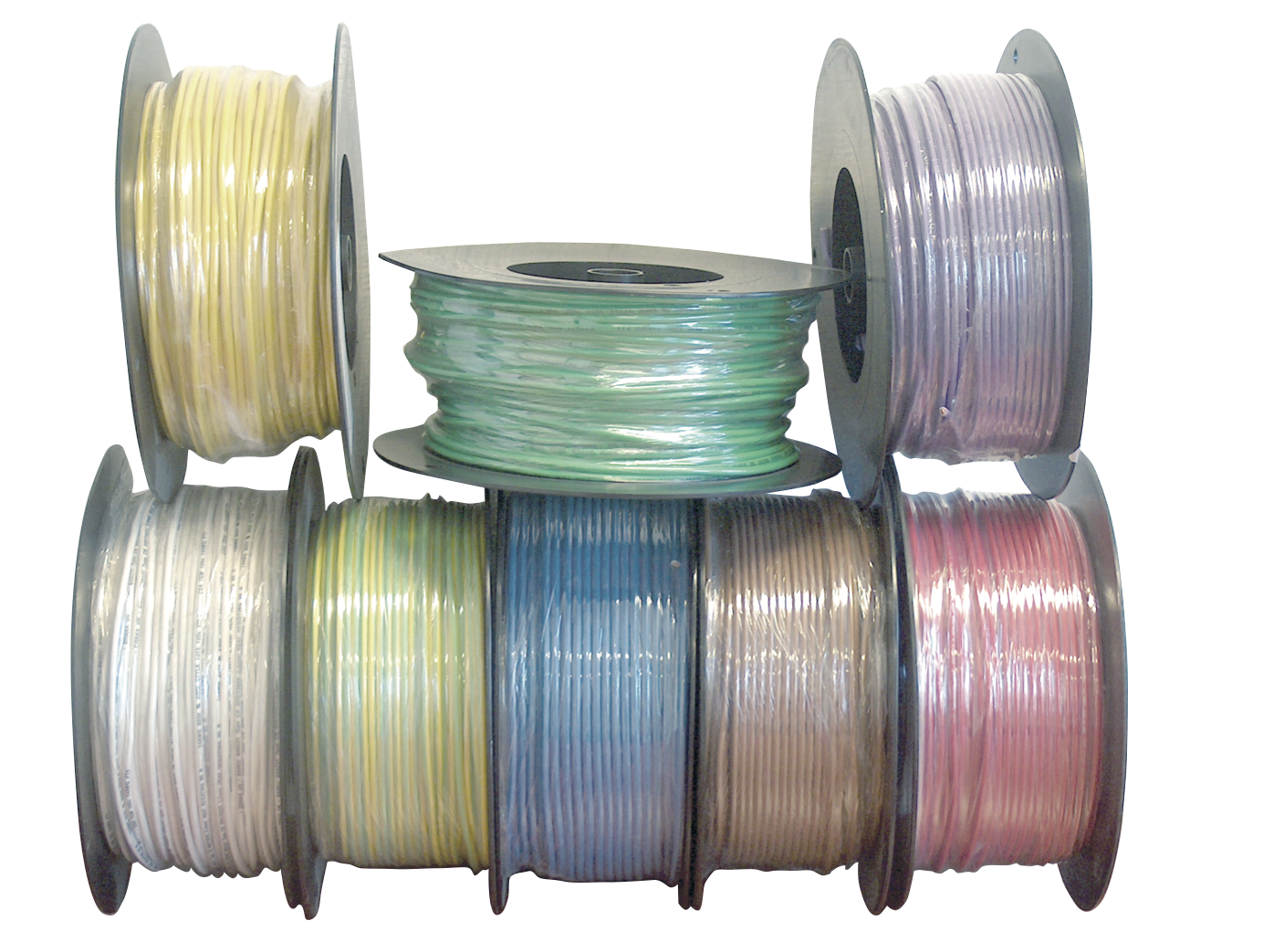

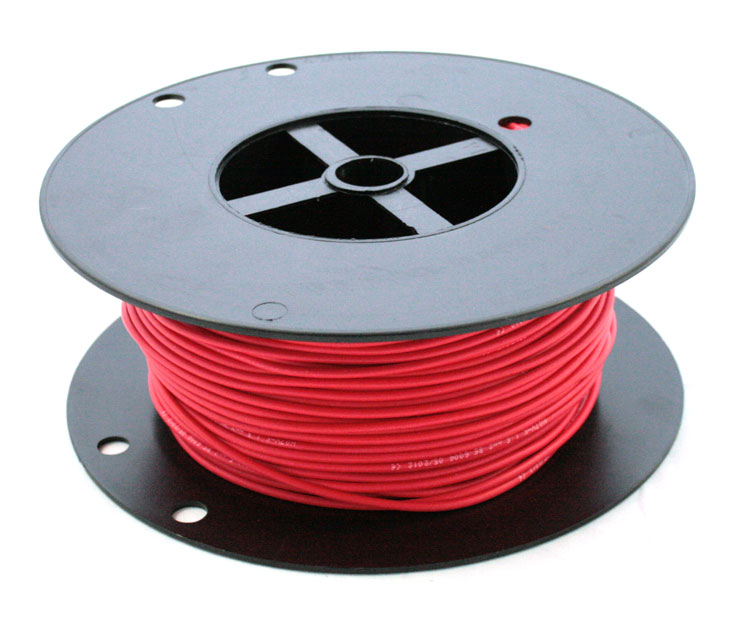

Mounting wire H07V2-K 6 mm2
Reliable installation wire with Class 5 copper conductor and durable PVC insulation compliant with EN50525-2-31. Suitable from 0°C to +90°C, operating voltage 450/750 V, 100 m rolls.
Item number: 33699600
Sales unit: 100 meter
Product information
Looking for a reliable installation wire that meets all European safety standards for electrical engineering and industrial installations? Our H07V2-K wire is the ideal choice. Featuring a Class 5 copper conductor and durable PVC insulation compliant with EN50525-2-31 standards, this cable is available in convenient 100-meter rolls suitable for diverse applications.
Why choose H07V2-K installation wire?
Flexible conductor (Class 5)The finely stranded copper provides exceptional flexibility, simplifying installation and connections even in tight spaces.
Durable PVC insulationHigh-quality PVC insulation offers effective protection against wear and excellent electrical insulation, making it ideal for various installations.
Wide temperature rangeOperable between 0°C and +90°C, ensuring reliable performance under varied conditions.
High safety standardsWith an operating voltage of 450/750 V and a test voltage of 2.5 kV, this wire ensures optimum safety and reliability for professional use.
Certified quality
Data sheets
Specifications
| Number of conductors | : | 1 |
| Diameter in mm | : | 4.7 |
| Conductor | : | Copper |
| Weight (kg/km) | : | 65 |
| Insulation | : | PVC |
| Cable length | : | 100 |
| Class | : | Class 5 |
| Sheath Color | : | Black |
| Max temperature (°C) | : | 90 |
| Standard / specification | : | EN50525-2-31 |
| Temperature range | : | 90 |
| Test voltage | : | 2.5 kV |
| Cable type | : | Mounting wire |
| Operating voltage | : | 450 / 750 V |
| Wiring size in mm² | : | 6 |
2 versions
| No. | Stock | Mantelkleur |
|---|---|---|
| 33699601 | Rood | |
| 33699600 | Zwart |
